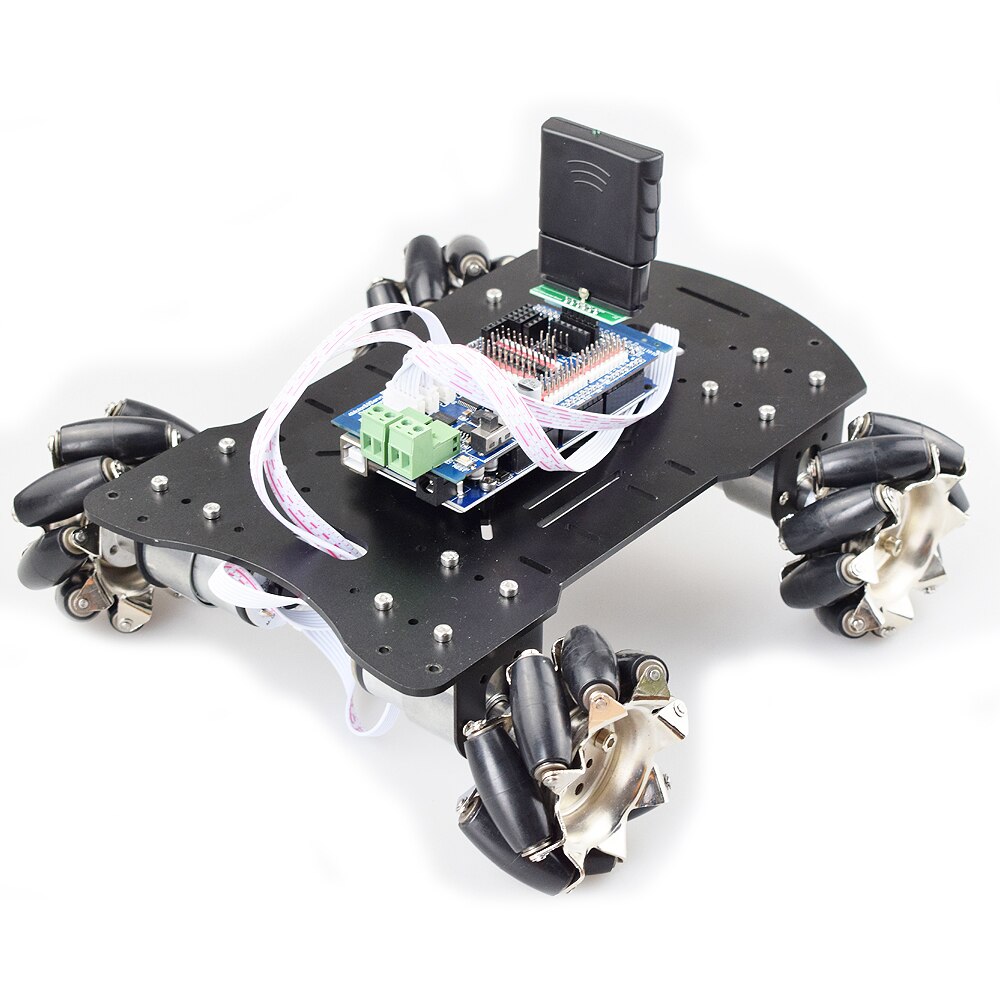

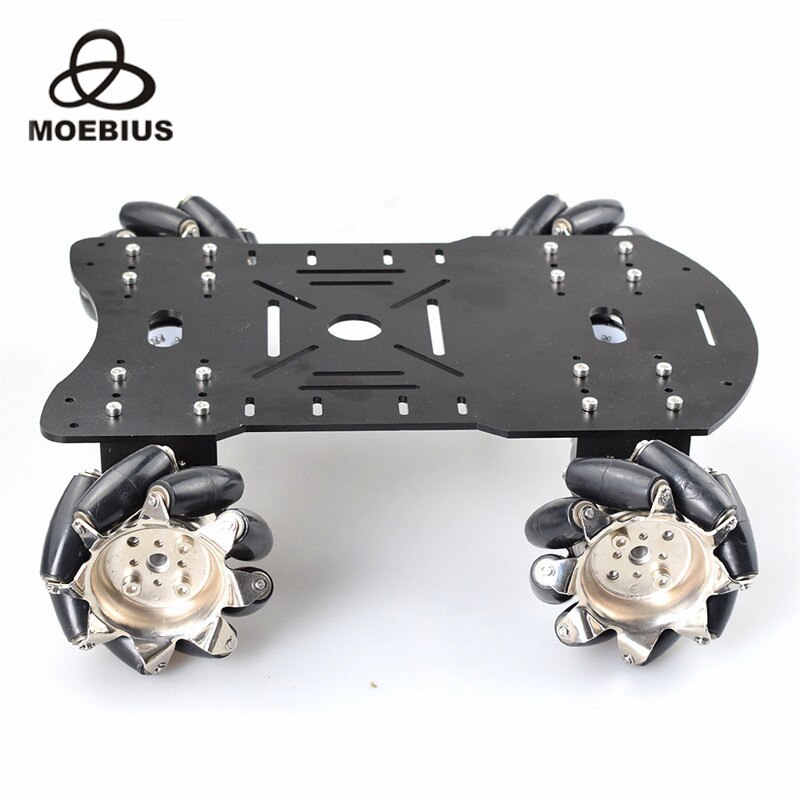

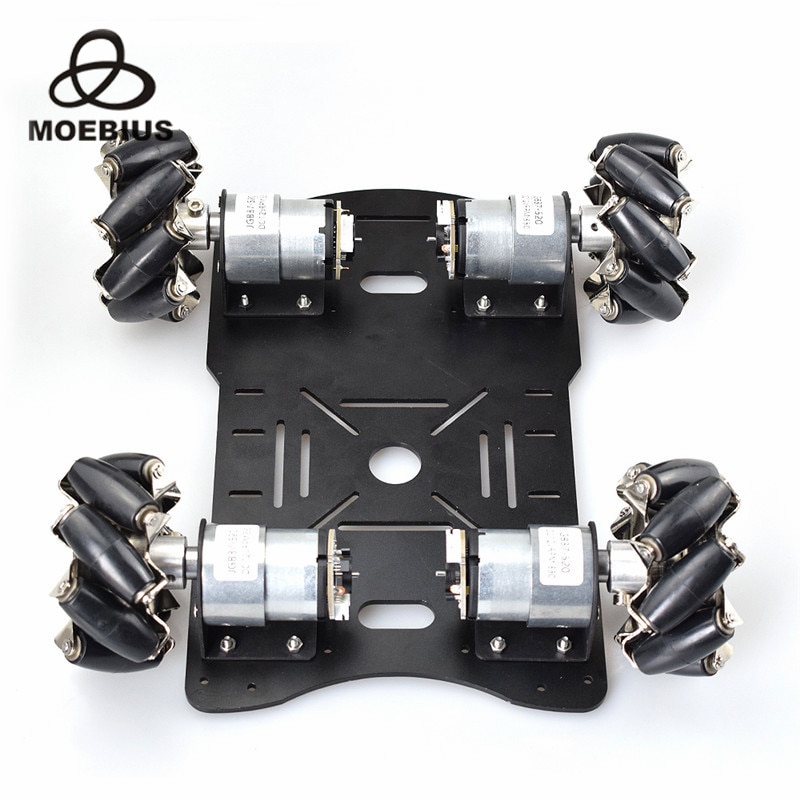

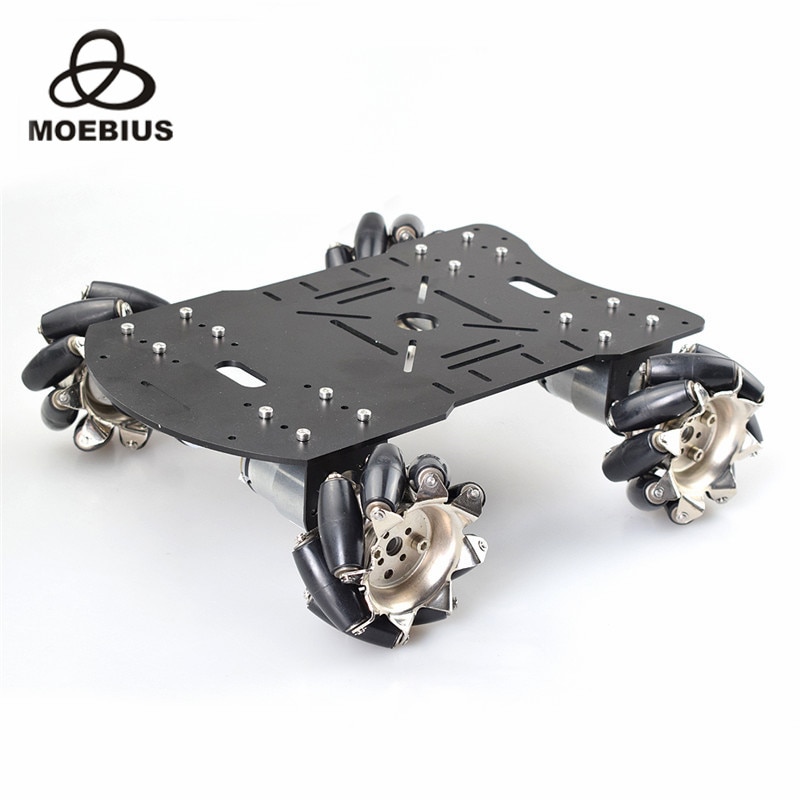

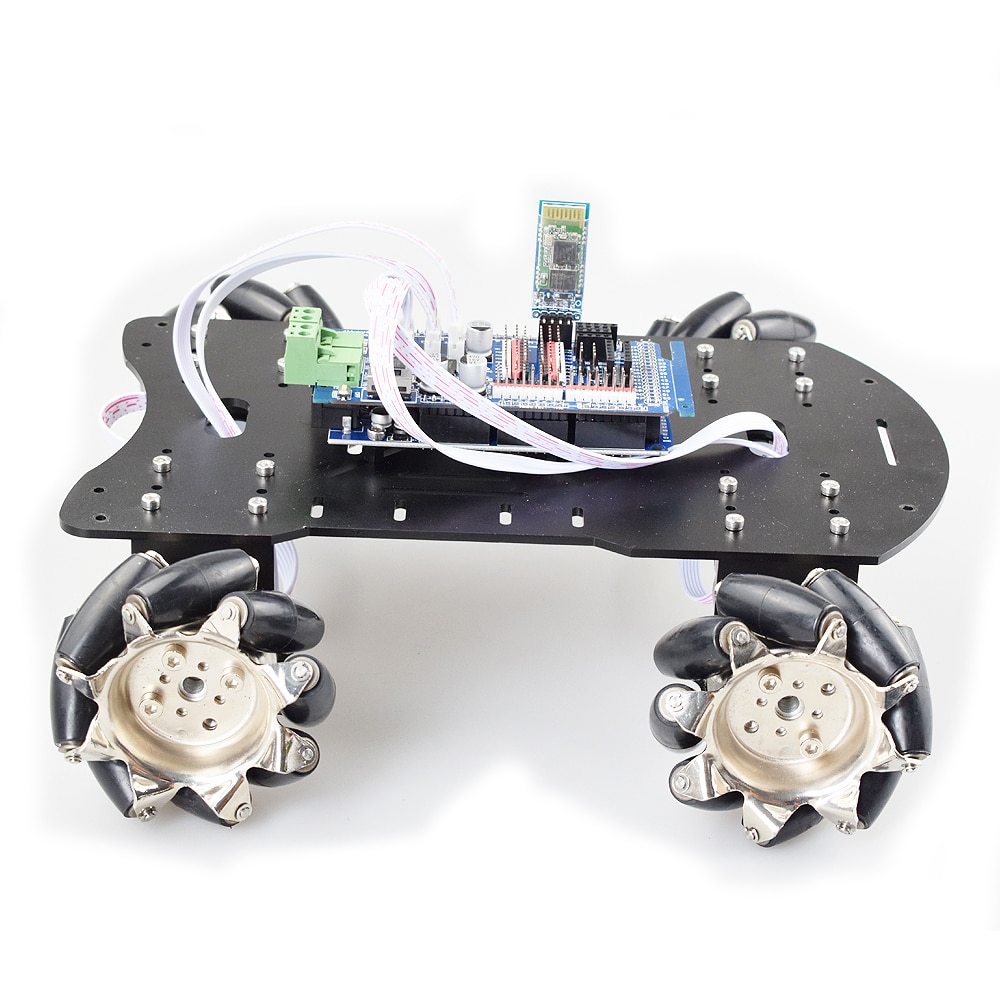

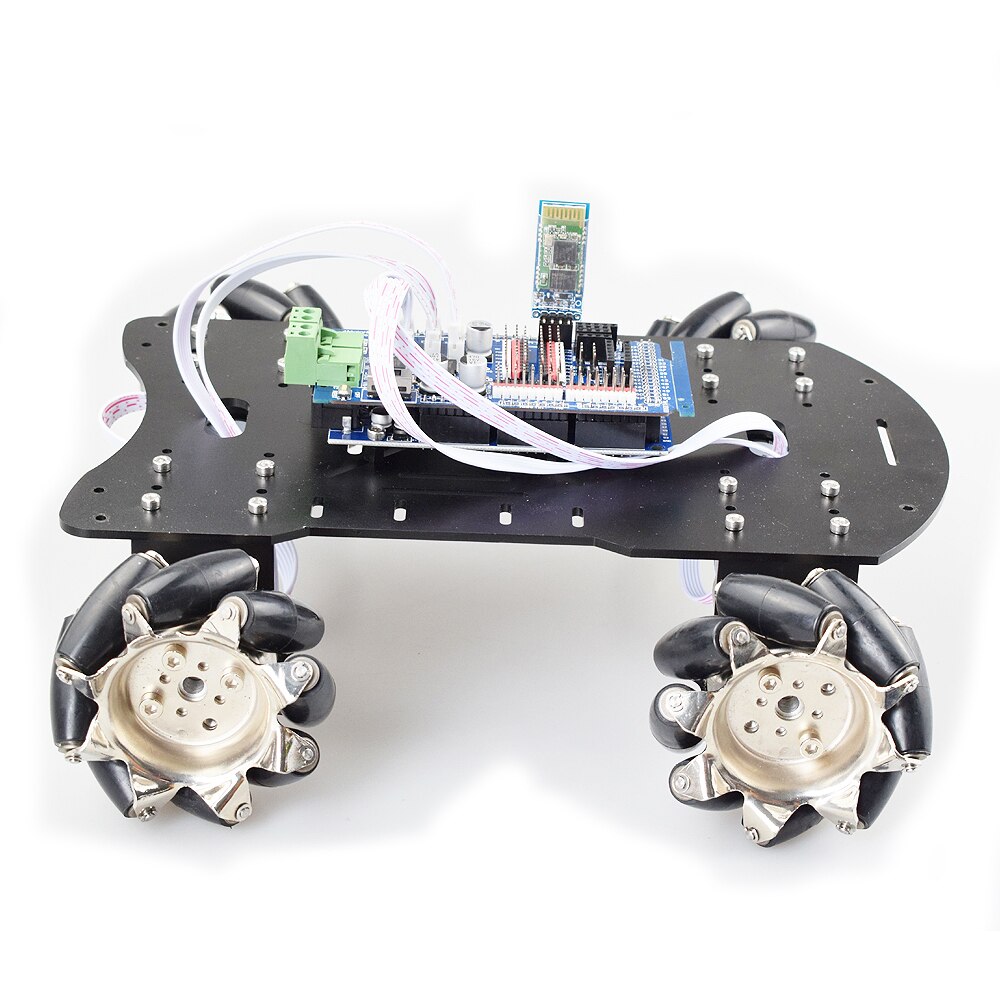

4WD Omni Robot Car Chassis Kit (All-Metal, 20kg Load) with 12V DC Encoder Motor for Arduino DIY.
0.0 ( votes)
Price:
US $605.26
/ Set
Discount Price:
US $
568.43
/ Set
-6%
- Color
- Ships From
Package Included:
Full set=Aluminum Alloy Frame*1+Mecanum wheel*4+ 12V 178rpm motor with encoder*4+ motor bracket*4+ motor cable*4+ screws*1 set
+ Mega2560*1+ 4 channel motor driver board*1+ PS2 handle controller*1+ USB cable*1
Note: the robot is unassembled, please leave your email to get the PDF manual. Now the color of the wheels is all black
Features:
4WD omni wheel robotic car uses the latest mecanum wheels for omnidirectional movement and allow your robotics to not only travel forward and backward, but also side to side.Perfect for tight spaces.
This 4 mecanum wheels is compatible with all DC motors with a motor shaft diameter of 6mm.
This mecanum wheels used for Raspberry Pi 4/3B+/3,Micro:bit and Arduino Project compatible with DC motor.
This robot platform with mecanum wheel is designed for learning robotics with arduino or raspberry pi programming.Youlearn more about how Mecanum Wheels work and how they can improve your robot's maneuverability.
Parameters:
Size: 260*240*80mm
Weight: 2.1kg
Materails: Aluminum alloy
Load weight: 20kg
Wheel size: 78mm*40mm(Length*Width)
Motor: 12V 178rpm with speed encoder
Motor Parameters:
Reduction ratio: 56
No-load current: 120MA
No-load speed: 178RPM
Rated torque: 6.5KG.CM
Rated speed: 140RPM
Rated current: 1A
Maximum torque: 9KG.CM
Stall current: 2.3
L length: 24MM
- Power Source: Electric
- Theme: Transportation
- Warning: none
- Model Number: MBS078
- Recommend Age: 12+y,6-12y,14+y
- Origin: Mainland China
