Order Number: 860027

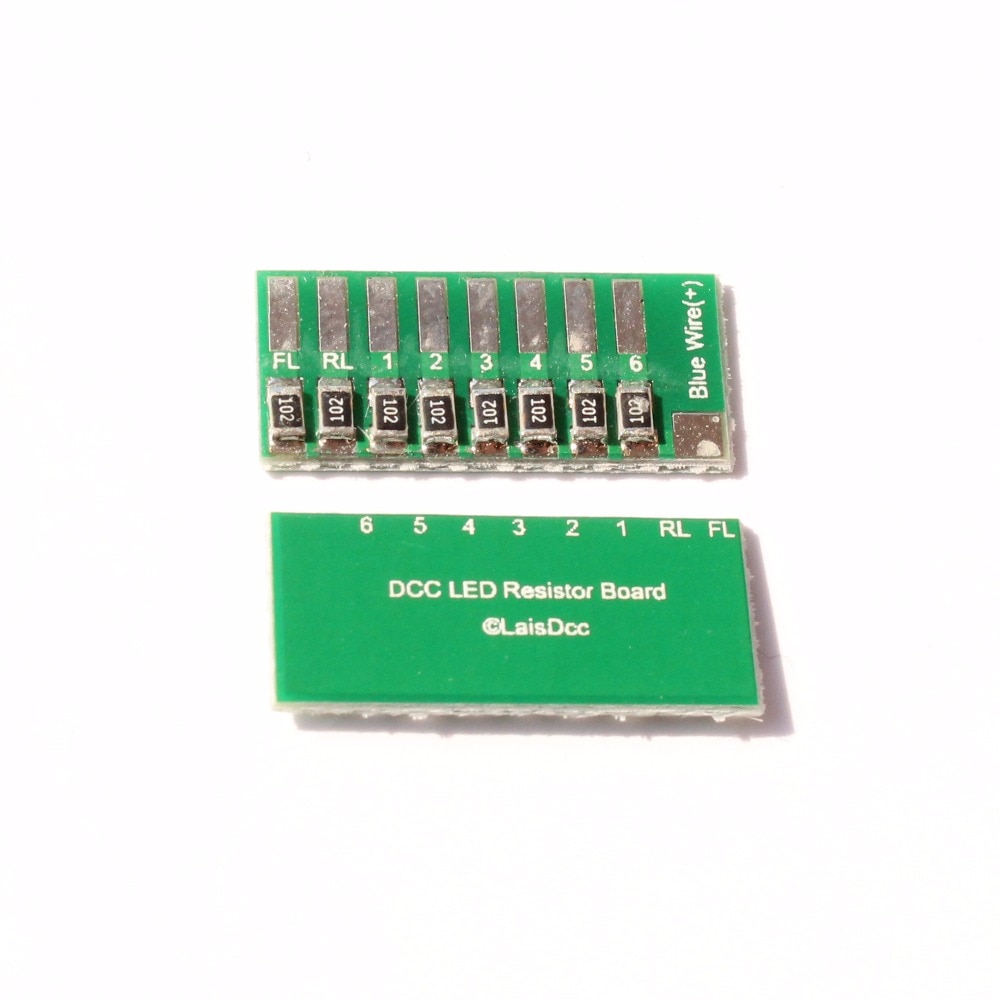

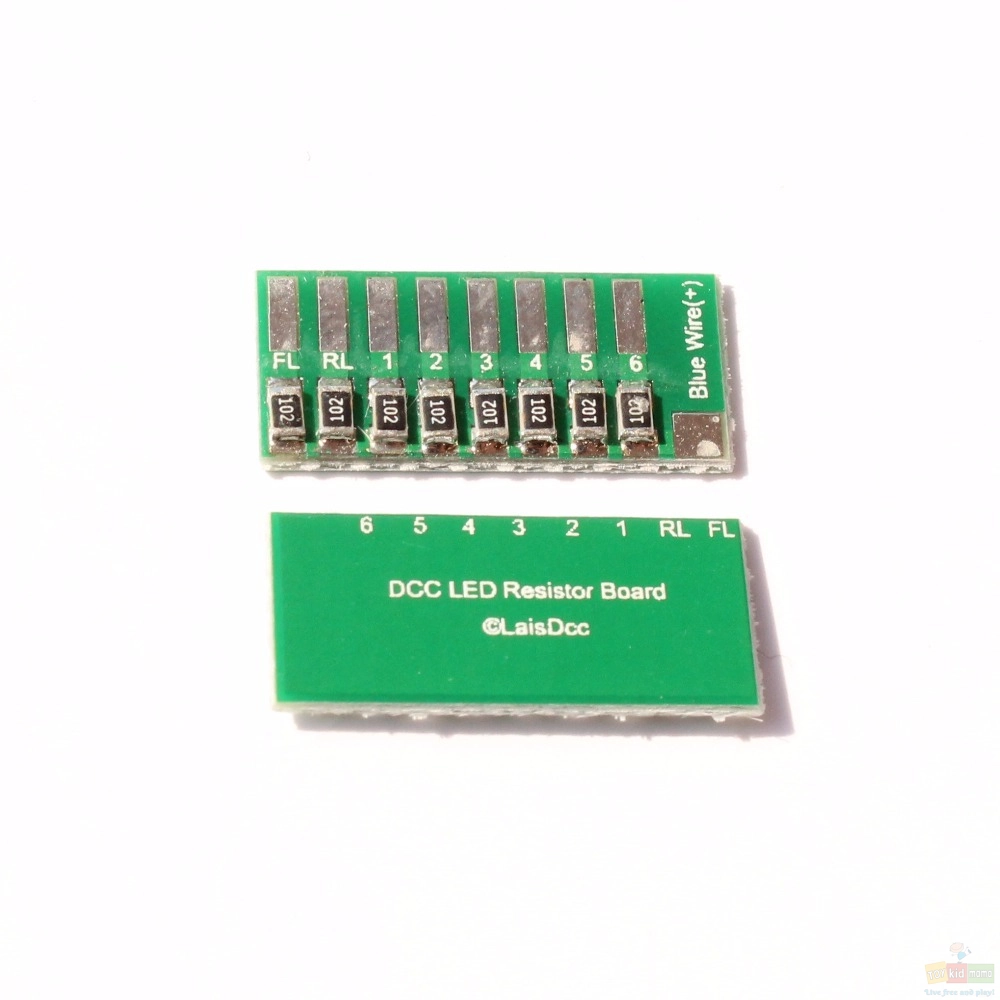

2PCS/860027 DCC LED Resistor Board
PCBA Size: 17mm*8mm
Designed to save time, space and to help maintain a cleaner DCC installation.
Intended for use with DCC Mobile, Sound and Lighting decoders requiring a hardwired installation with an output of 12V on the function common wire.
Designed for use with most LED’s. Test your LEDs with a 12V power supply or a 9V battery with a 1K ohm 1/8 watt resistor wired inline on one of the leads prior to installation1. It contains eight 1K Ohm 1/8W SMD resistors for up to 8 lighting functions including headlight and reverse light. This compact board measures only 17mmX 8mm and is perfect for narrow hood diesel locomotives!
We are not responsible for damage caused to the LED's or the board if the incorrect LED is used with this board. Please test your LED's prior to using this board to confirm the 1K Ohm resistor provides enough or too much resistance.
Installation is a breeze...

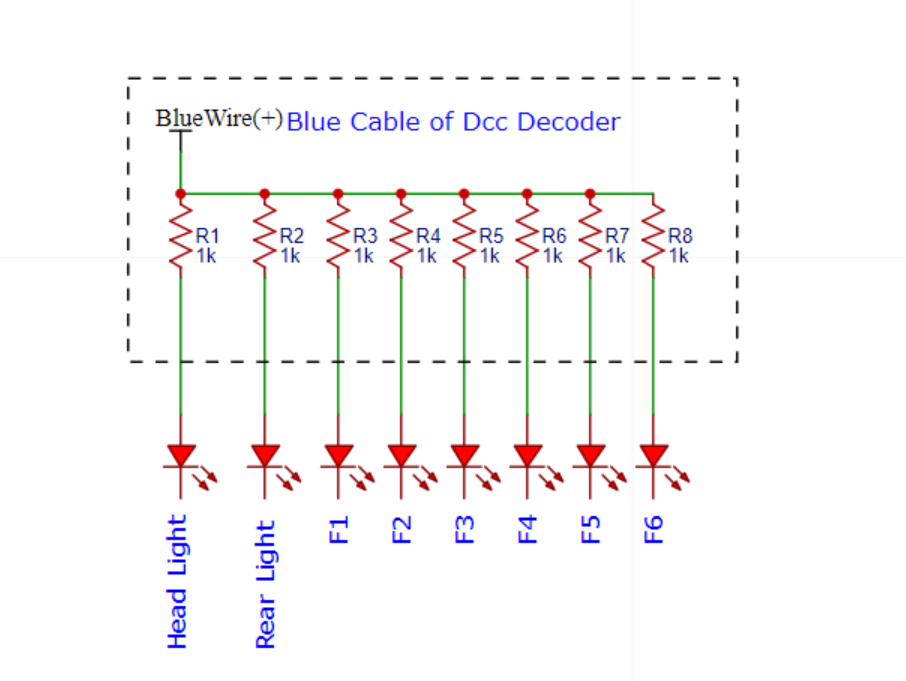

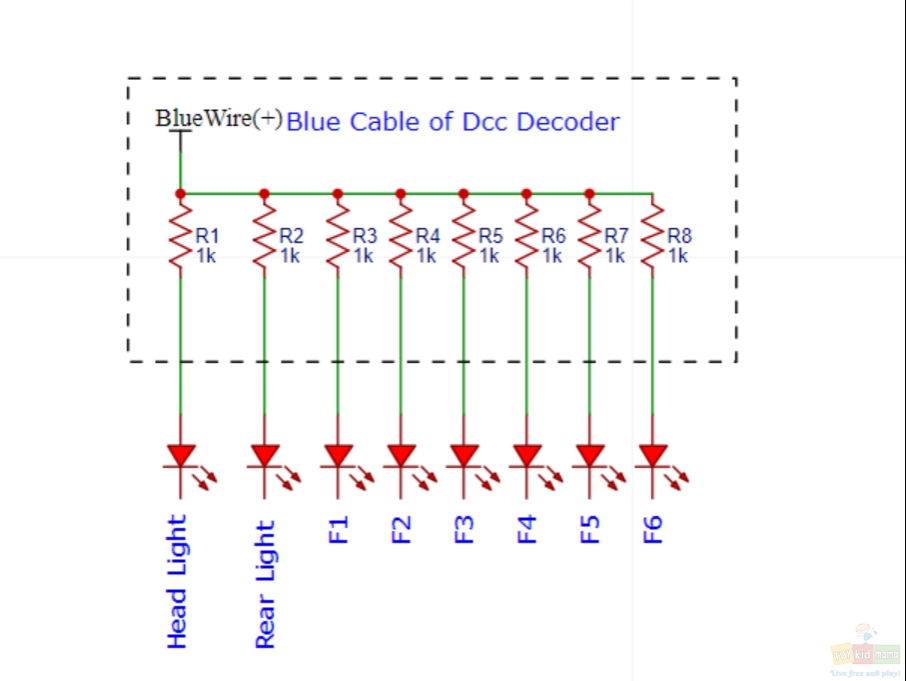

Simply solder the blue wire from the decoder to the " Blue Wire (+)" pad on the board and solder the wire to anode of each LED from the solder pads marked for each function (FL/RL/1/2/3/4/5/6) and then solder the appropriate wire from the decoder to the negative lead of the LED corresponding to that function!
- Origin: Mainland China
- Material: Composite Material
- Recommend Age: 12+y
- For Vehicle Type: Trains
- Use: Vehicles & Remote Control Toys
- Quantity: 1 pcs
- Model Number: 860027
