Metal Gear Servo - Upgraded Version for RC Helicopters, Planes, Boats, Cars, Robots - Available in 2/5/10/20/100 pcs - Compatible with MG90/SG90 - 9g/T-Rex 450.
9.95 $
SALE
ID: 20297
Quantity
Waterproof Digital Servo with Aluminum Gears and 25T Arm - 20-60kg Torque for RC Vehicles
4.8 (8 votes) | 53 orders
Price:
US $38.14 - 188.54
/ Pack
Discount Price:
US $
22.31 -
113.12
/ Pack
-42%
- Color
-
-

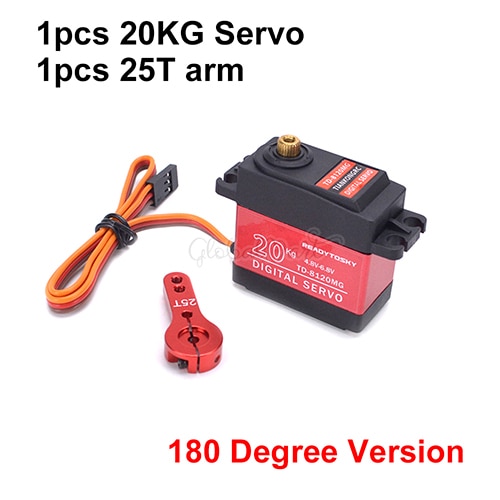

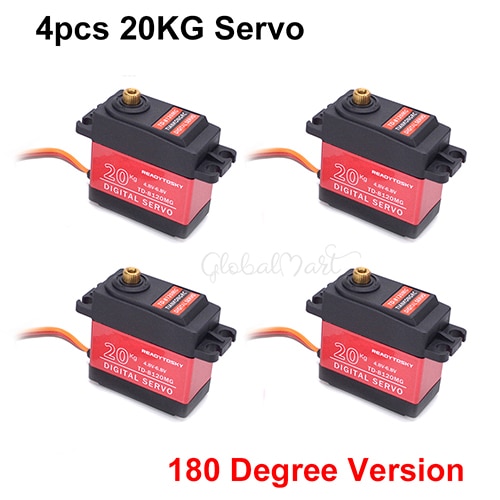

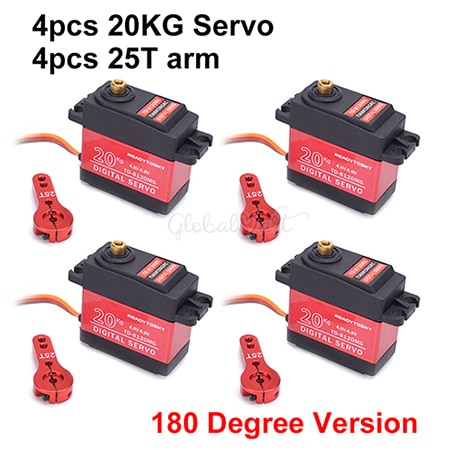

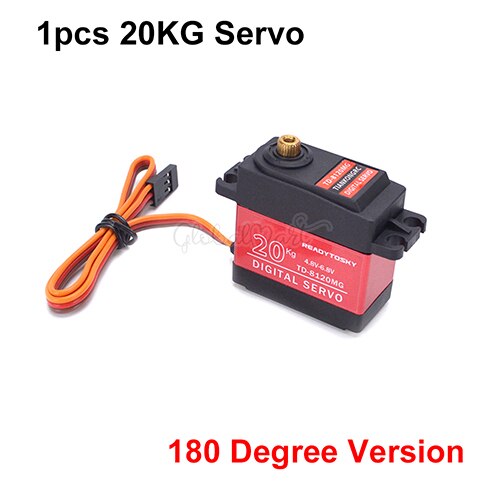

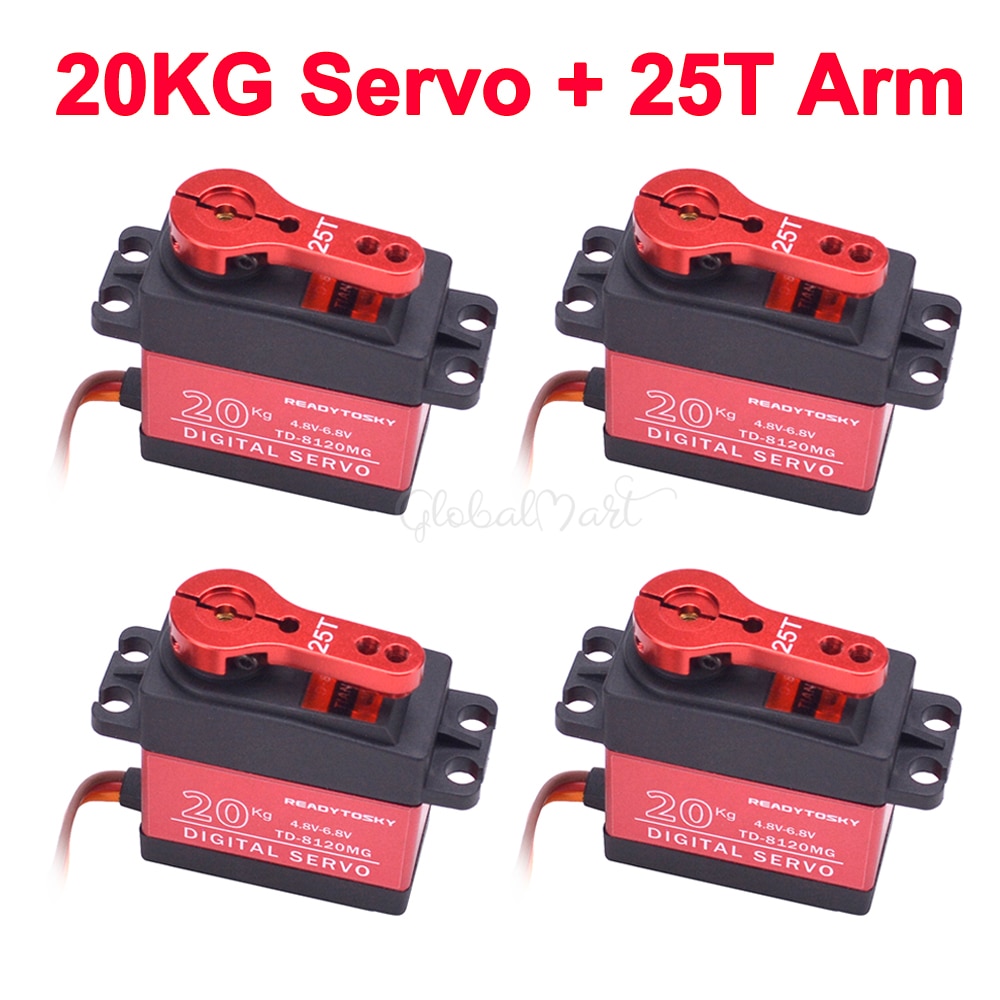

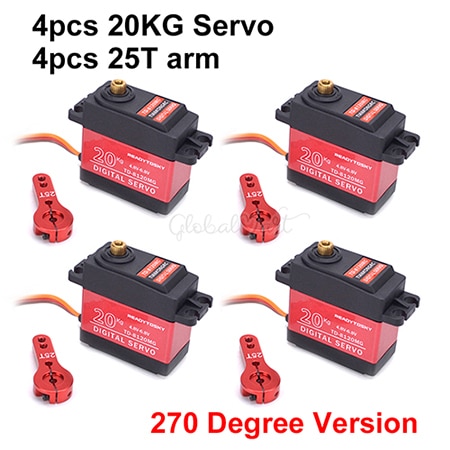

20KG Servo:

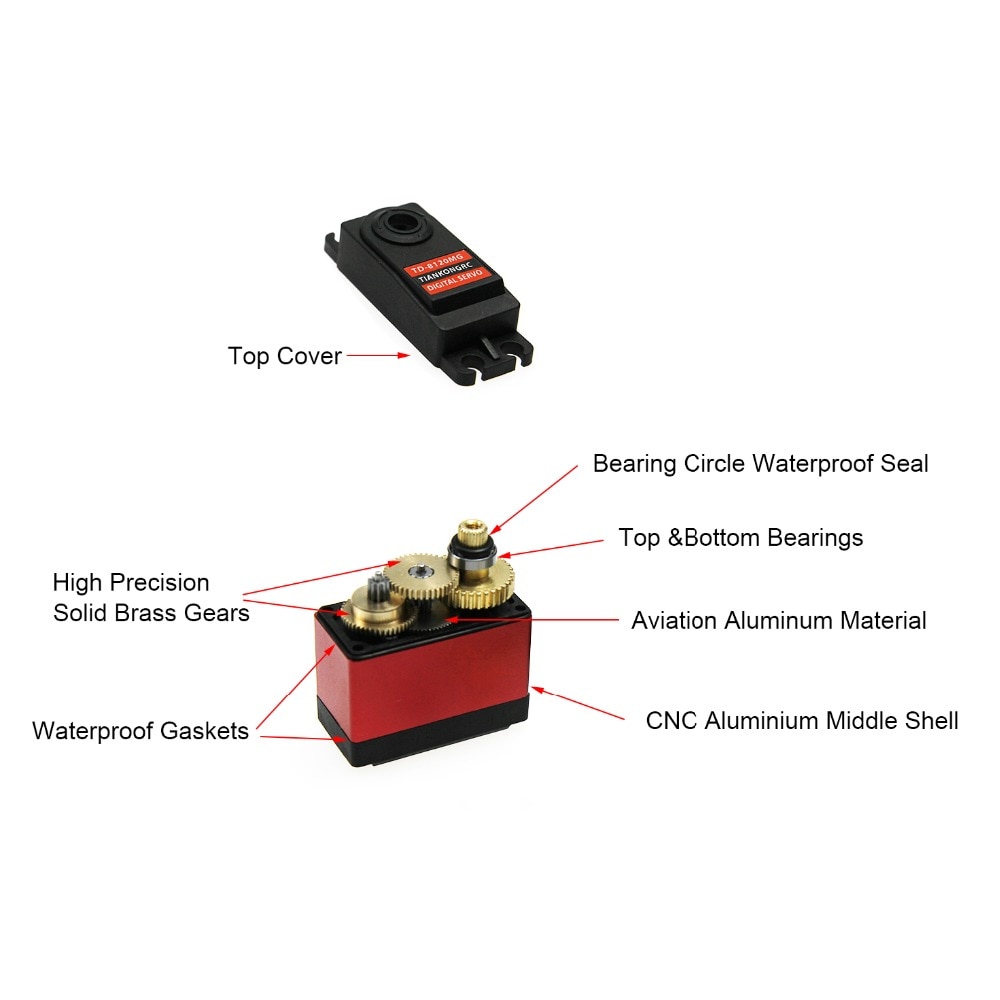

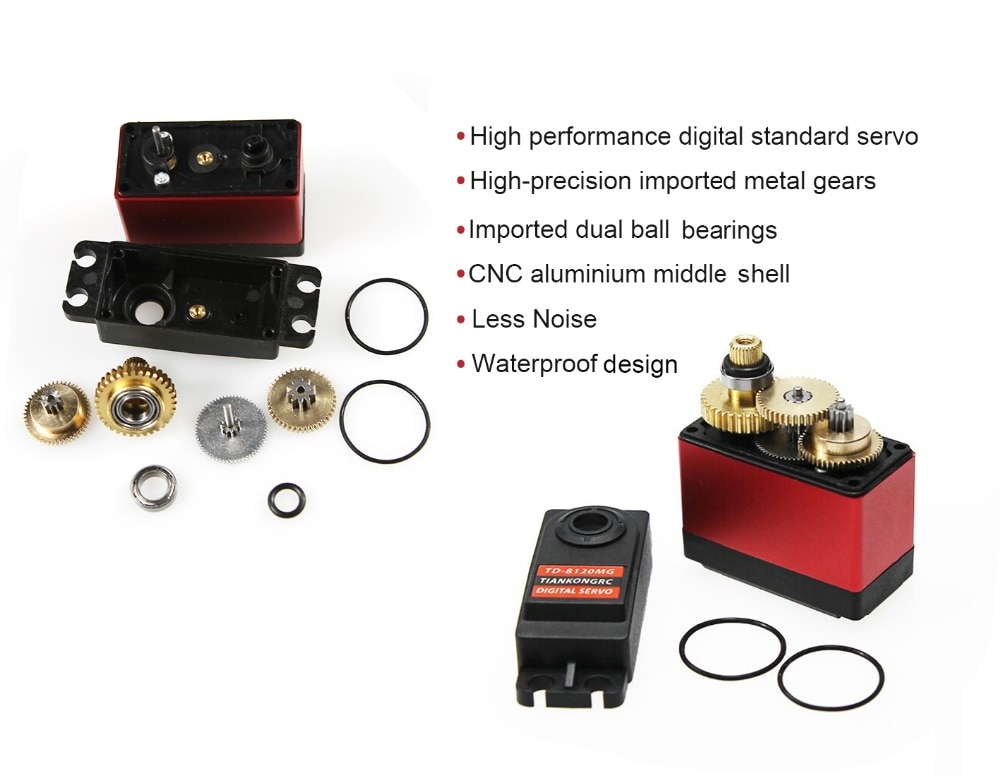

- High-precision metal gears with hard anodizing
- CNC aluminium middle Shell,
Control system :PWM control (1500 u-sec is the central point)
Working voltage:4.8V ~ 6V
Working temperature: -20C°~ +60C°
Torque :4.8V /17.2kg.cm
6.0V /20.3kg.cm
Idle speed :4.8V/0.15sec / 60 deg
6.0V/0.13sec / 60 deg
Steering angle: 180 / 270 degree
Idle current:4.8V/470mA 6.0V /650mA
Load current :4.8V/750mA 6.0V /950mA
Dead band :2usec
Lifetime:>15000 times without load
Moving angle:60°±10°
Drive type: MOS drive
Motor type:Cored motor
Potentiometer type:Direct drive
Signal booster type:Digital

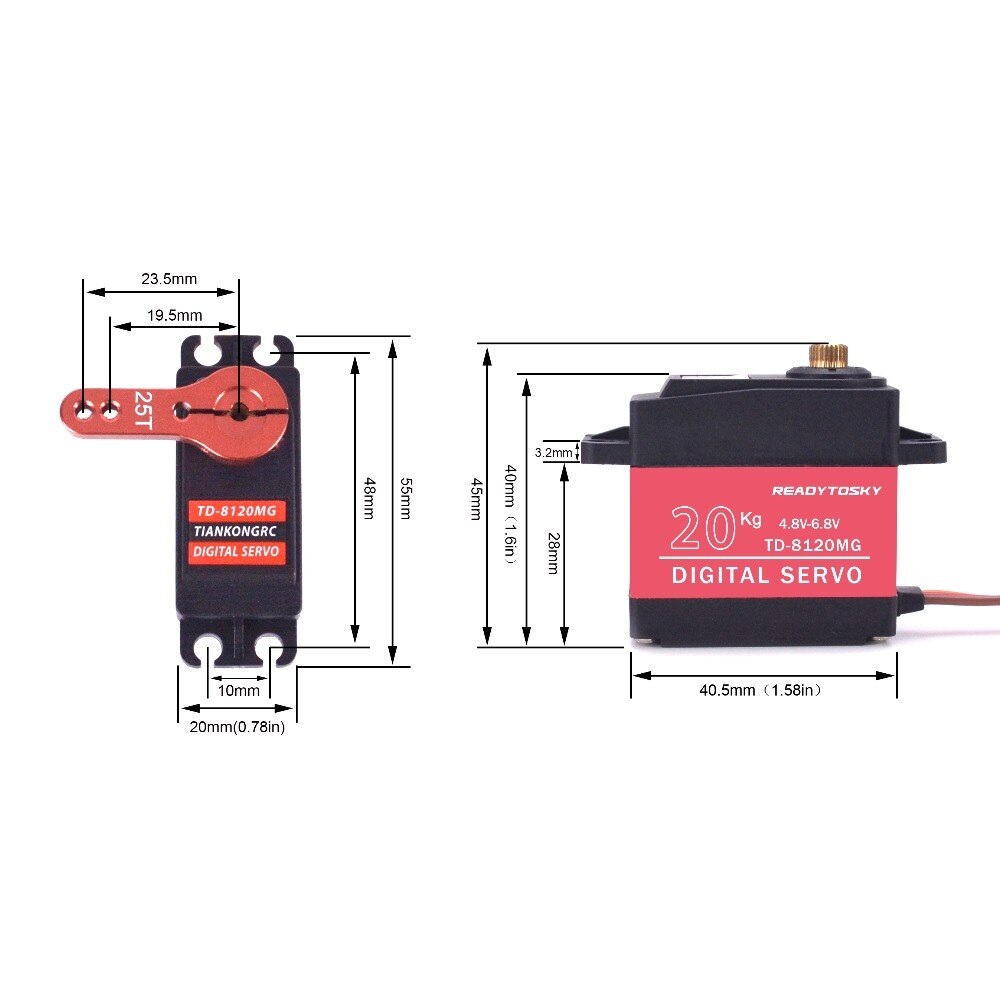

Size:40.5X20.2X40.3mm
Weight : 62g (without accessories)
Ball Bearing:2BB
Gear material:Metal gear
Case material: PA66+fiber40%
Wire length:260mm
Wire gauge No and plug type:26AWG,JR plug
Brown wire:Negative
Red wire:Positive
Orange wire:Singal
Application:RC car, RC airplane, Helicopter

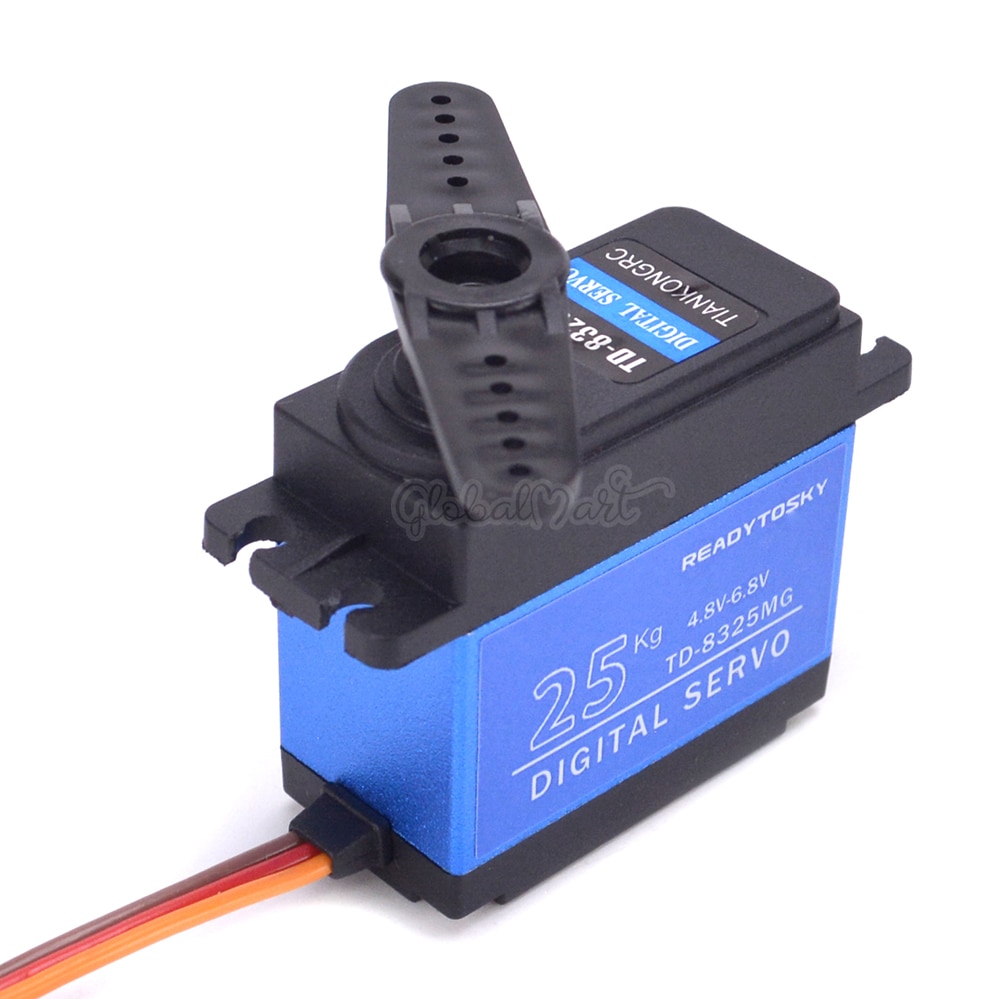

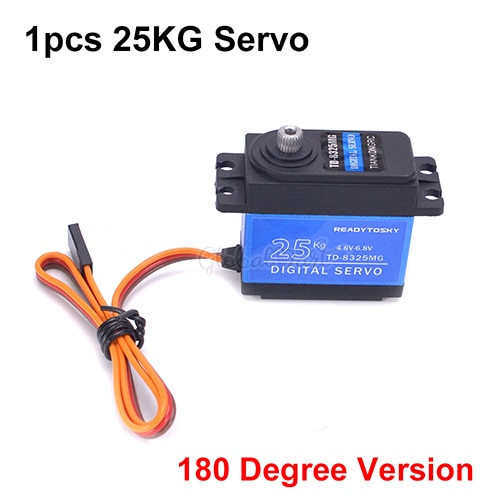

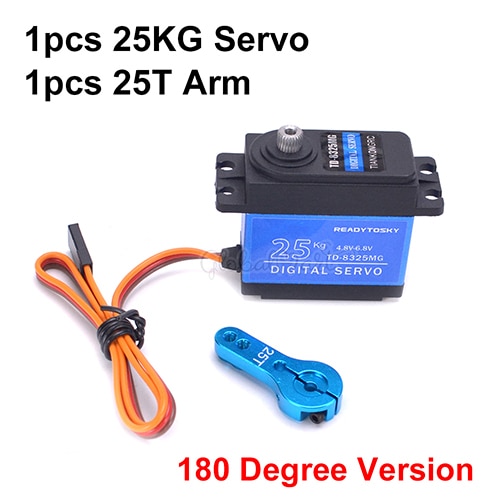

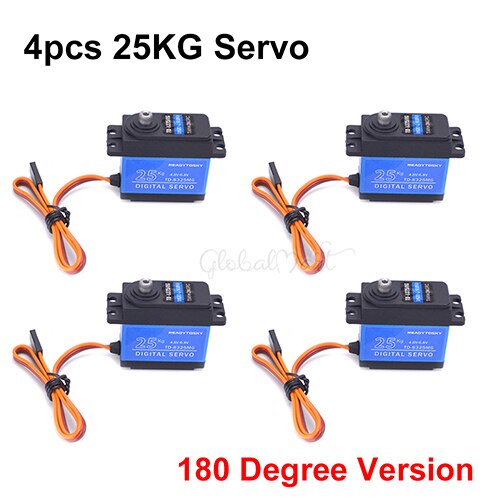

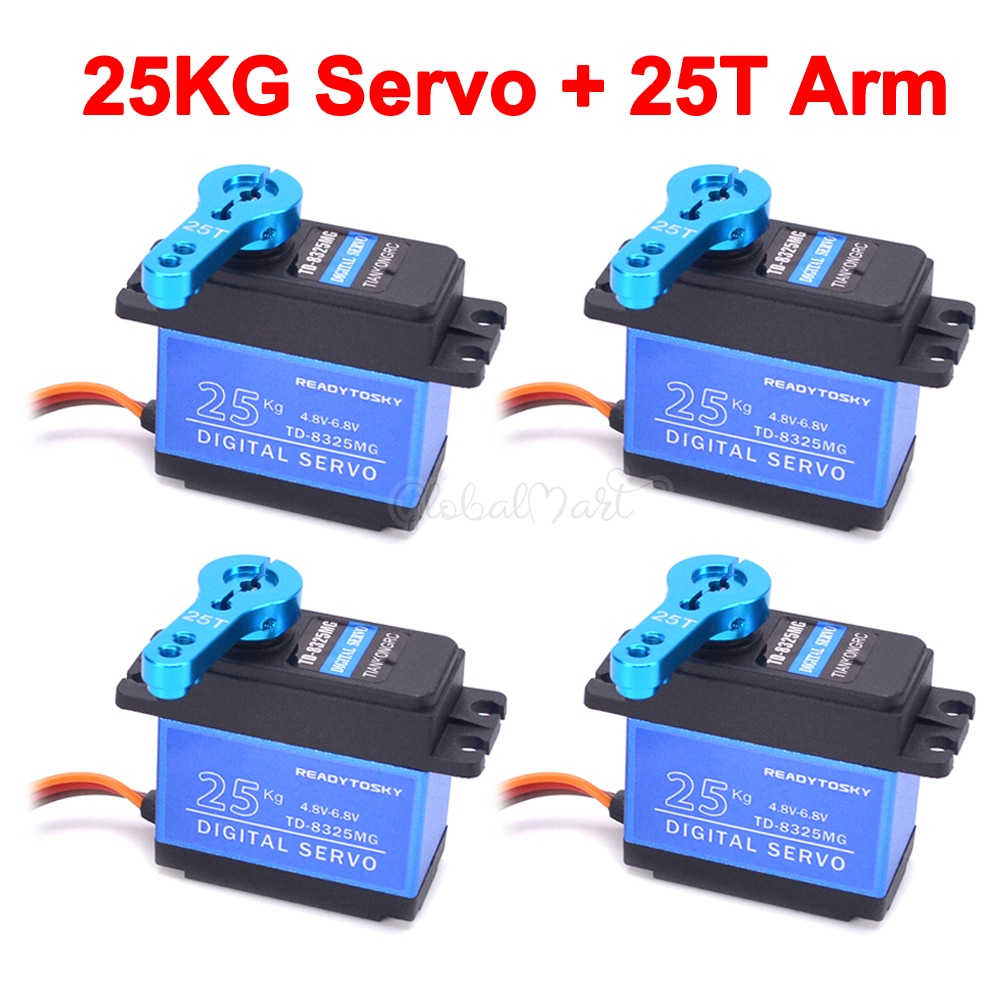

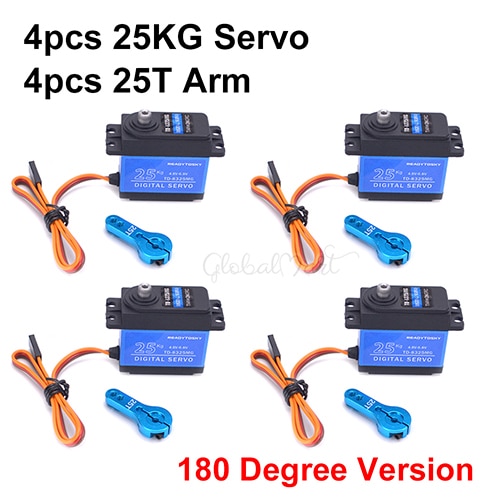

25KG Servo:
Apply Environmental Conditon:
1.Storage Temperature Range: -30°C～80°C
2.Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: -25°C～70°C
2.Humidity Range: 65%±10%
Mechanical Specification:

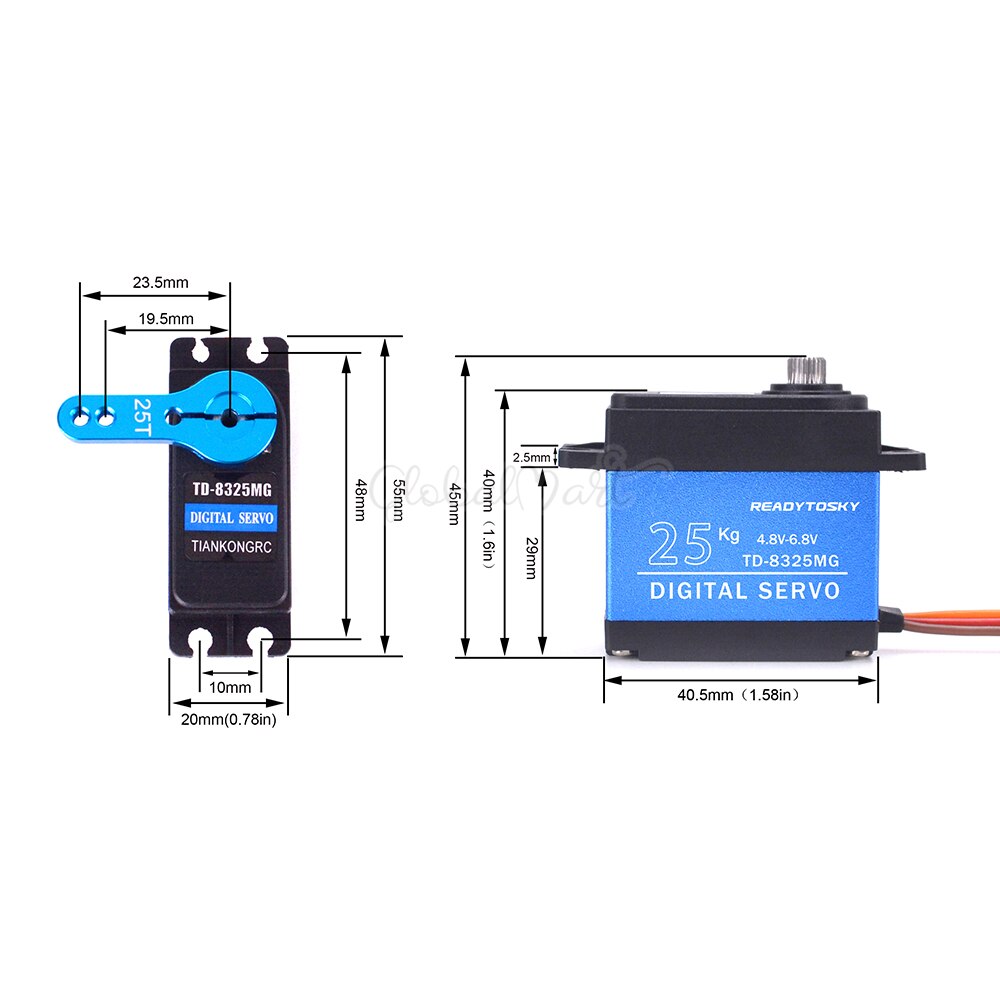

1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle: 360°
5.Bearing: 2BB
6. Horn gear spline: 25T Diameter:5.9mm
7. Horn type: Plastic, POM
8.Case : Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10.Motor: Carbon brush motor
Electrical Specification:
1.Operat voltage: 4.8V - 7.2V
2.No load speed: 0.18sec/60° - 0.14sec/60°
3.Running current: 140mA - 200mA
4.Peak stall torque: 23.5kg.cm-26.8kg.cm
5.Stall current: 2600mA±10% - 3400mA±10%
6.Working voltage range: 4.8 - 7.2V
Control Specification:
1.Command signal: Pulse width modification
2.Amplifier type: Digital controller
3.Pulse width range: 500～2500usec
4.Neutral position: 1500usec
5.Running degree: 180°±3°(when 500～2500usec)
6.Dead band width: 5 usec
7.Rotating direction Counterclockwise: (when 1000～2000usec)

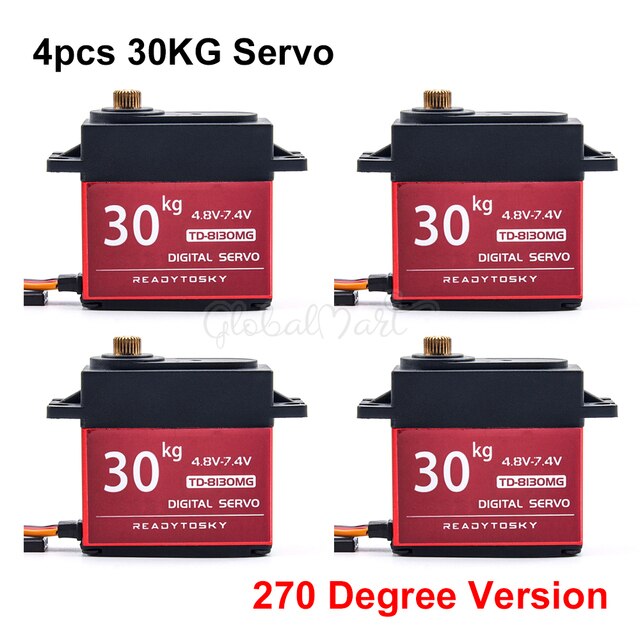

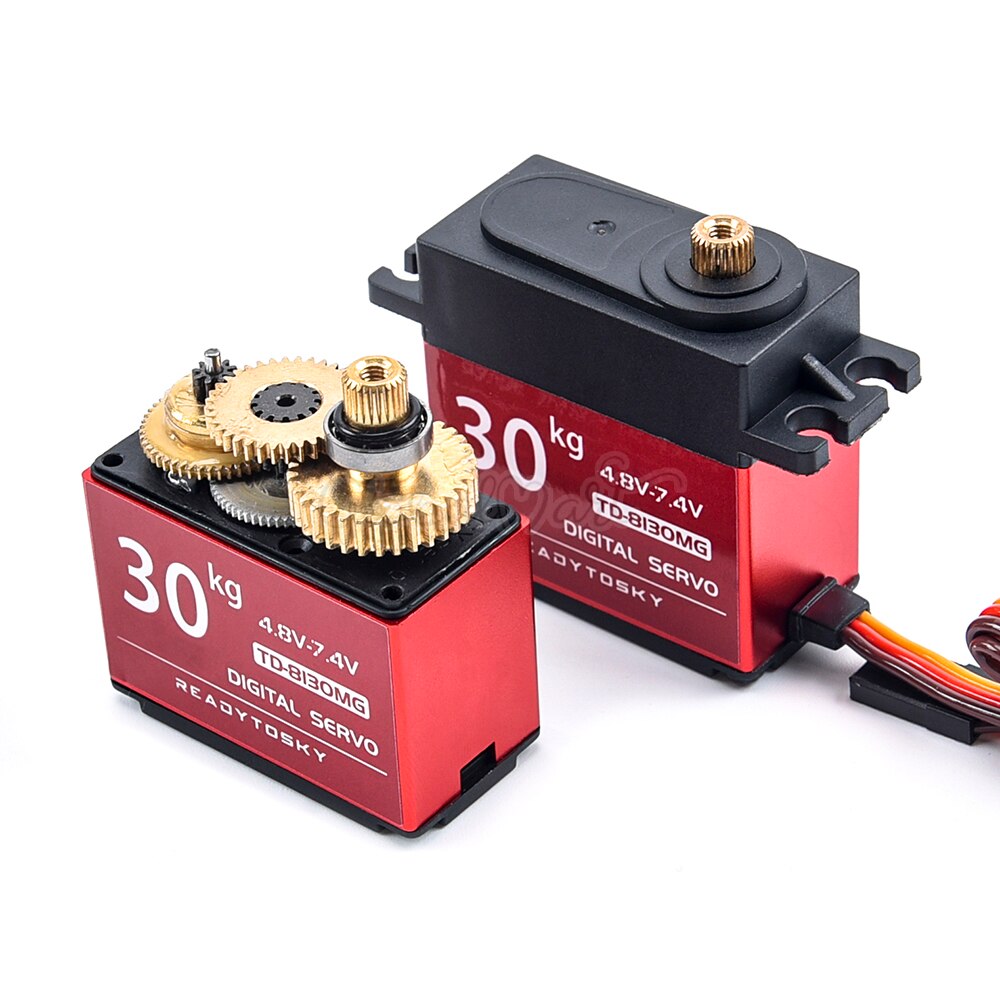

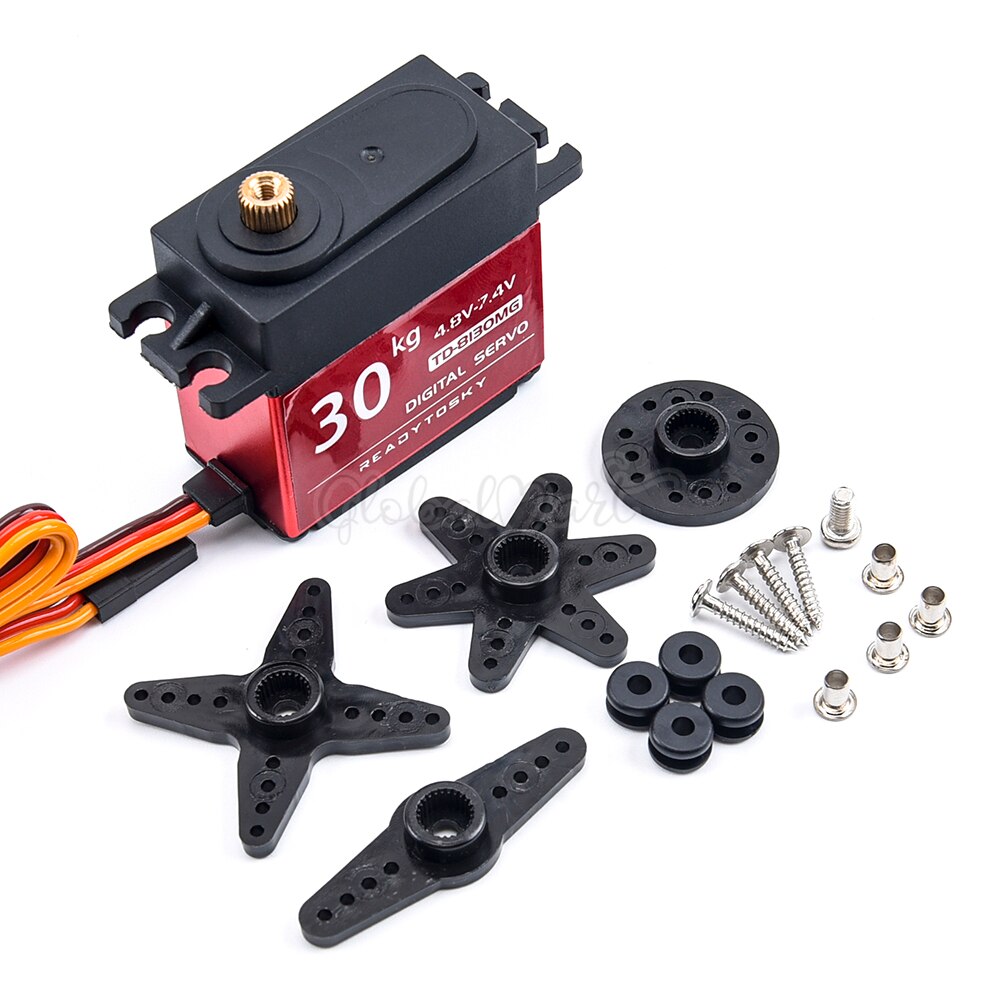

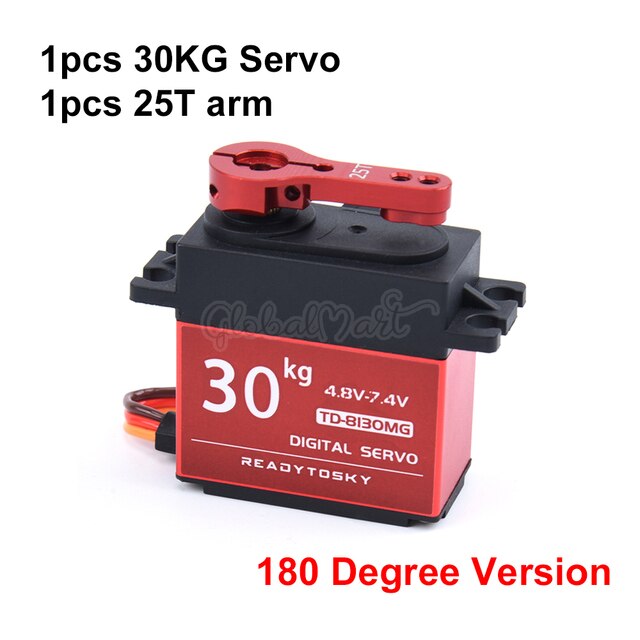

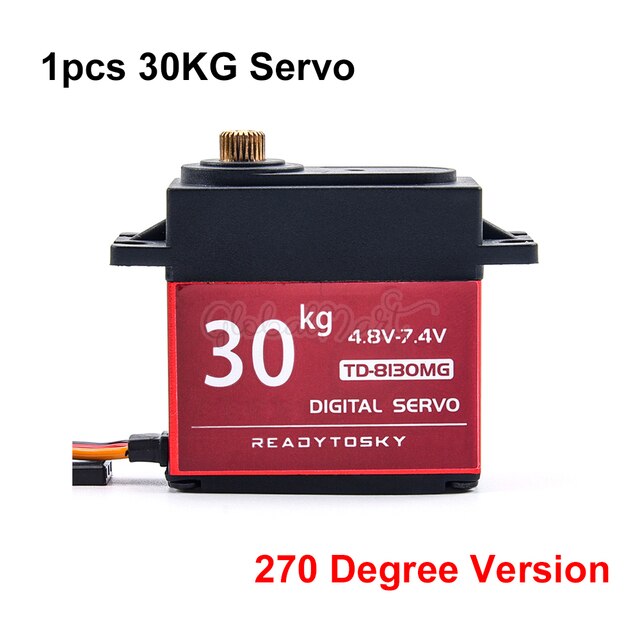

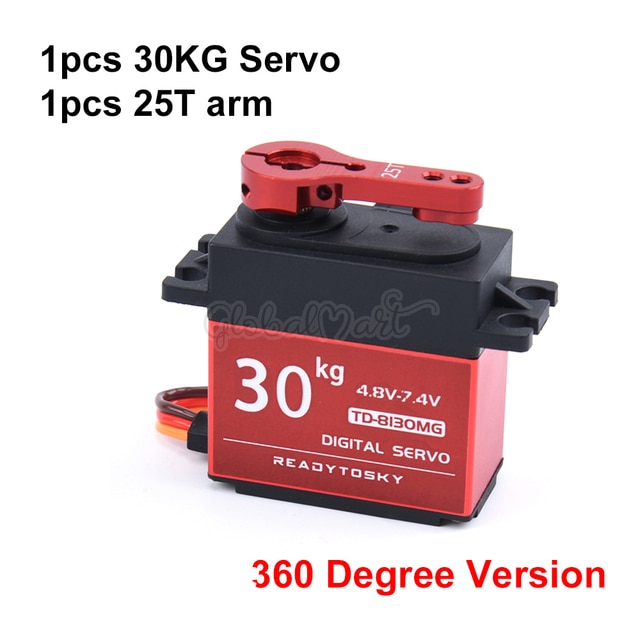

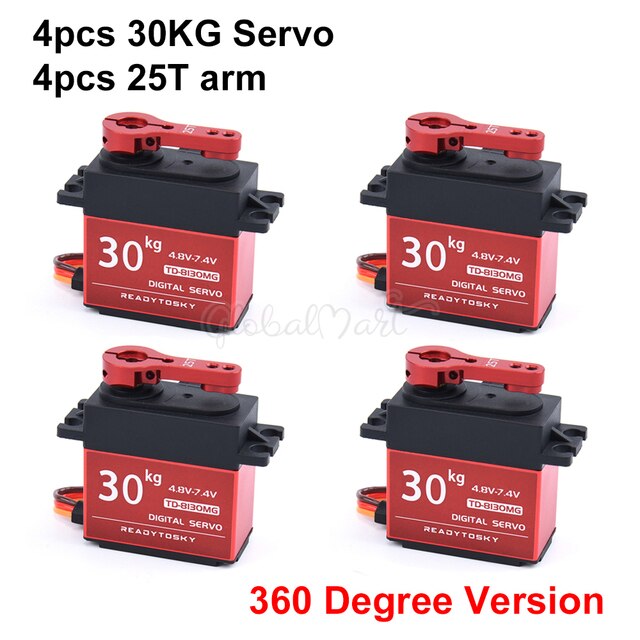

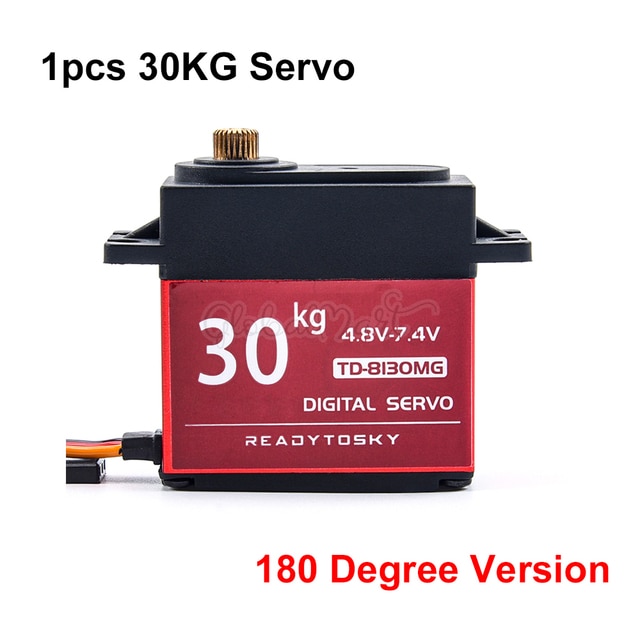

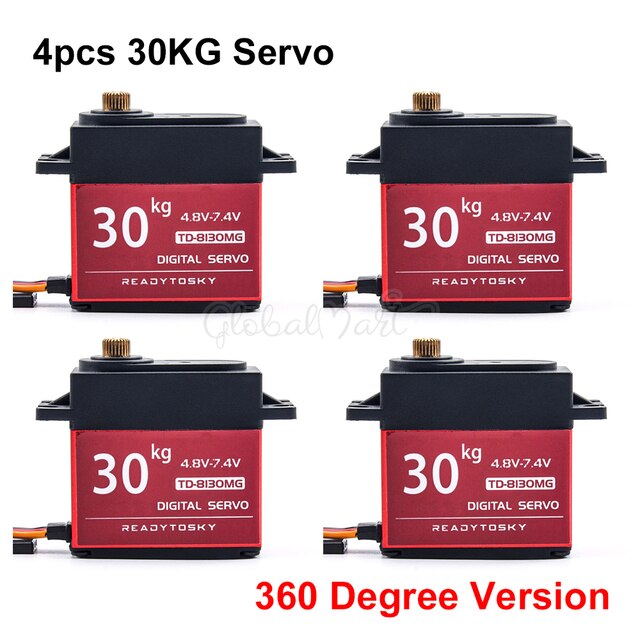

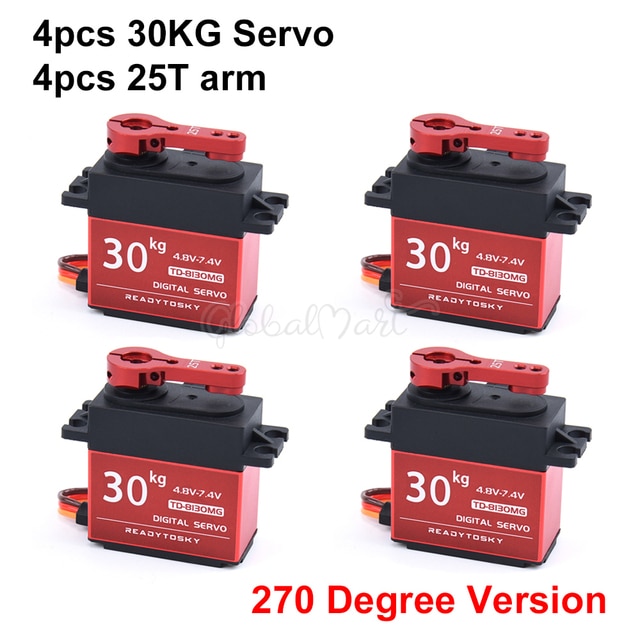

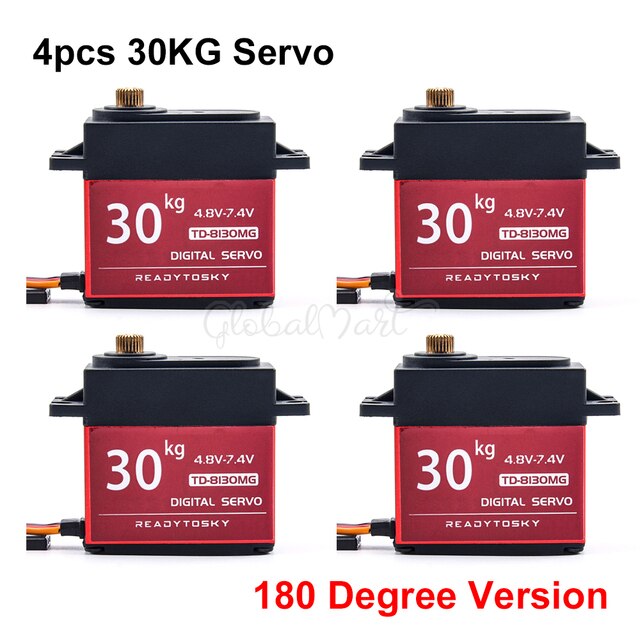

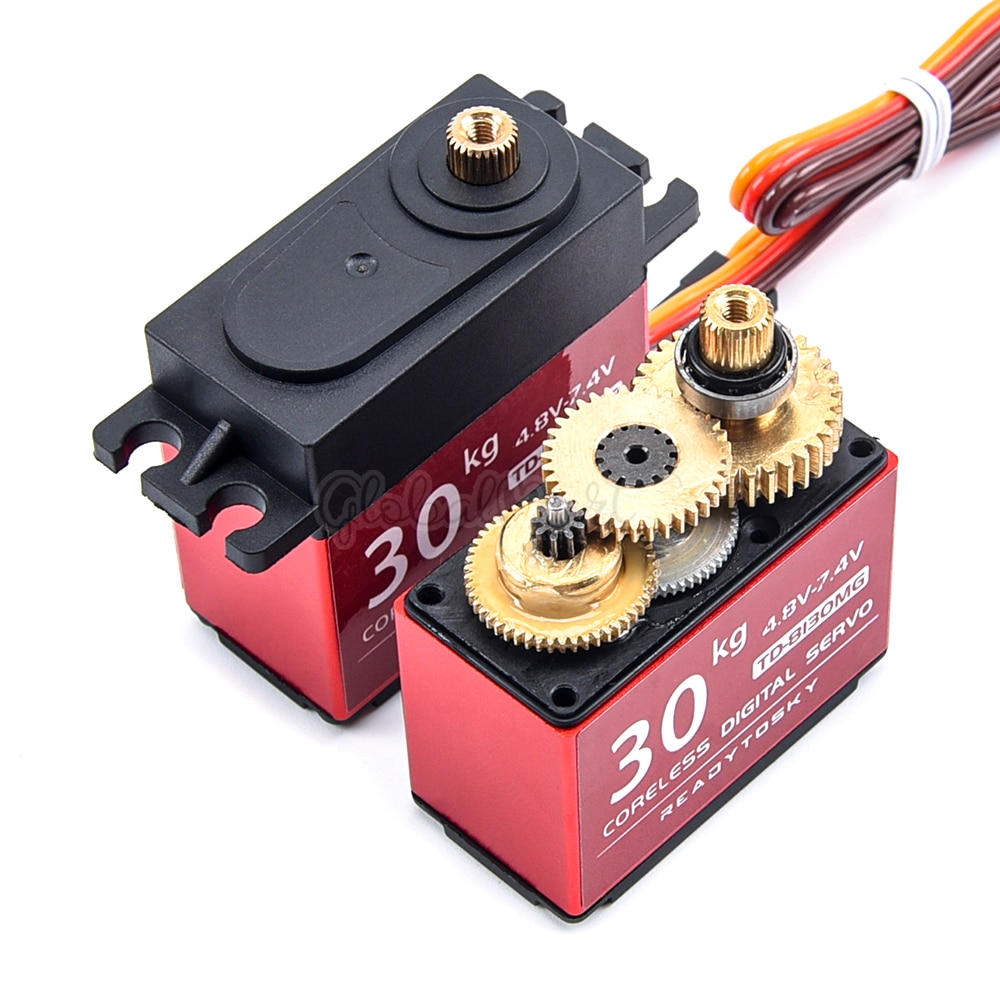

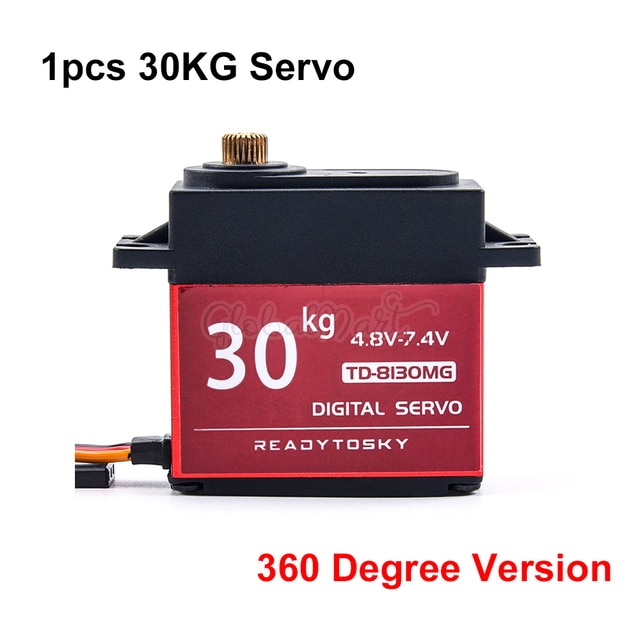

30KG Servo:
Apply Environmental Conditon:
1. Storage Temperature Range: -30°C～80°C
2. Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1.Temperature Range: 25°C～70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle:360°
5. Bearing:2BB
6. Horn gear spline: 25T Diameter: 5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire320mm±5mm
10. MotorCarbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.24sec/60° - 0.17sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque:29.5kg.cm - 32kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500～2500usec
4. Neutral position: 1500usec
5. Running degree: 180°±3°(when 500～2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000～2000usec)

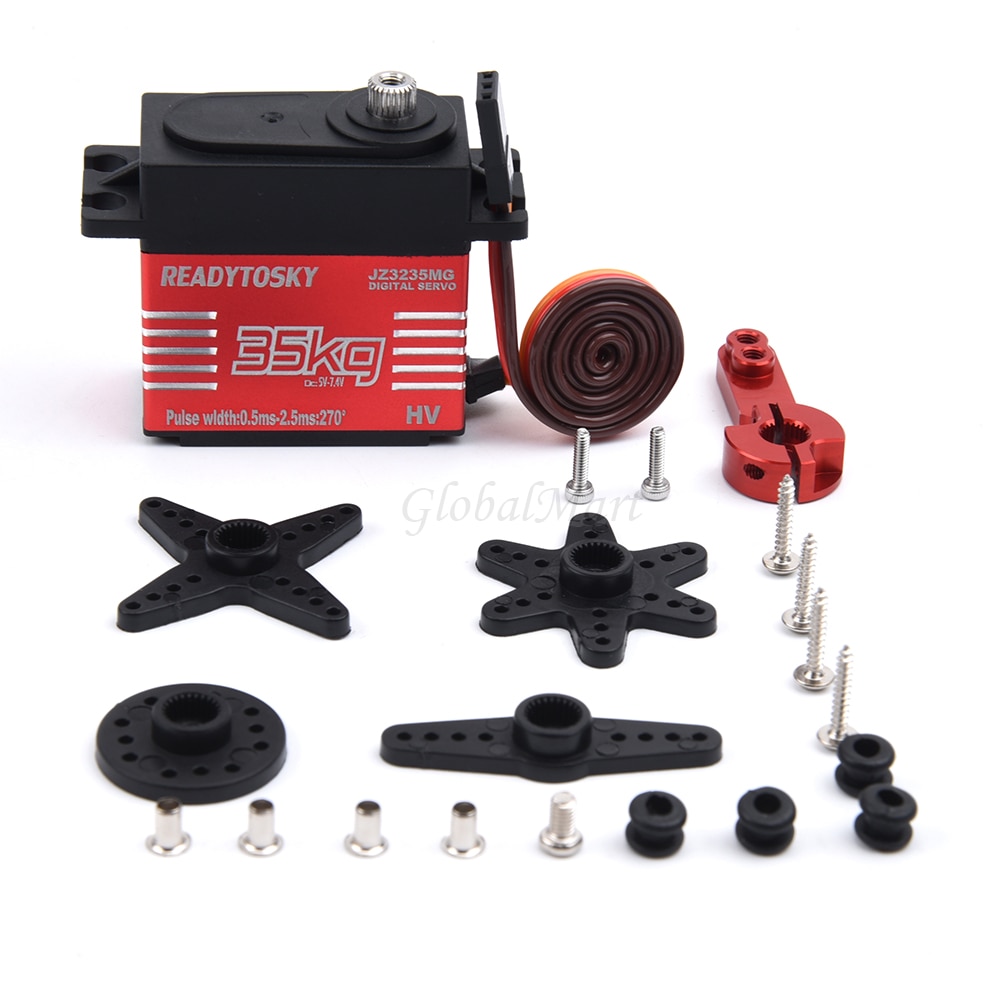

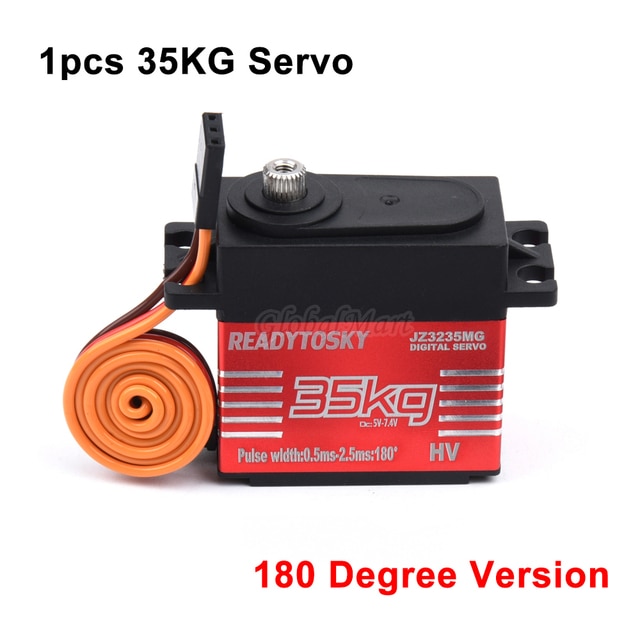

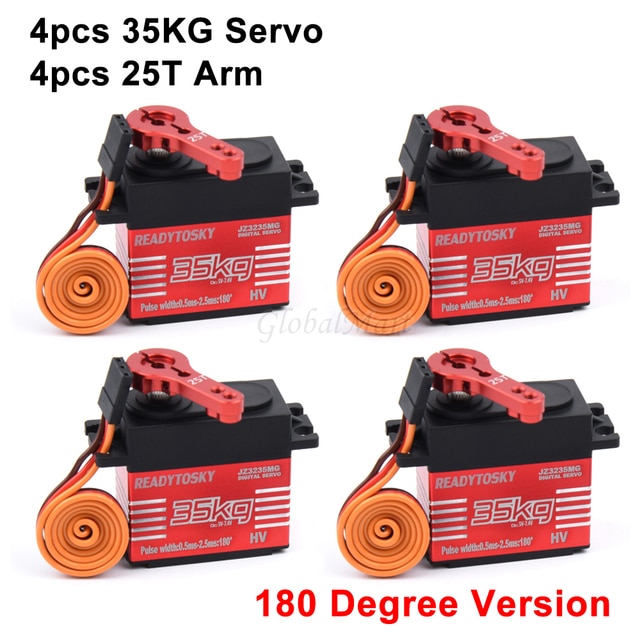

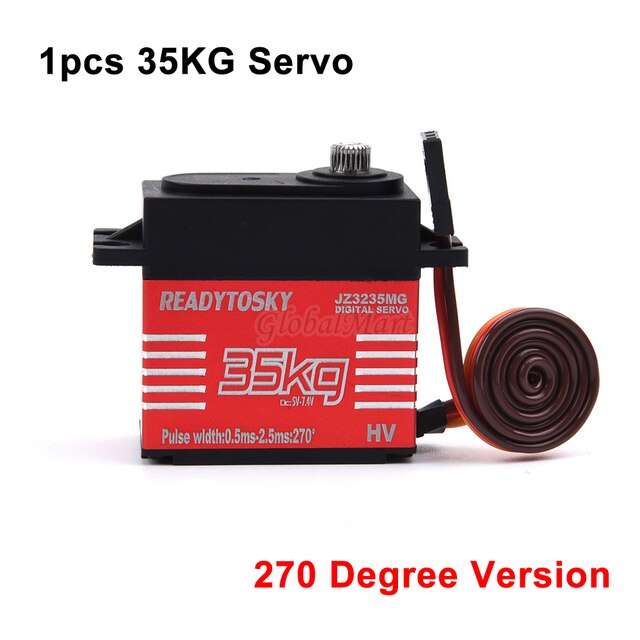

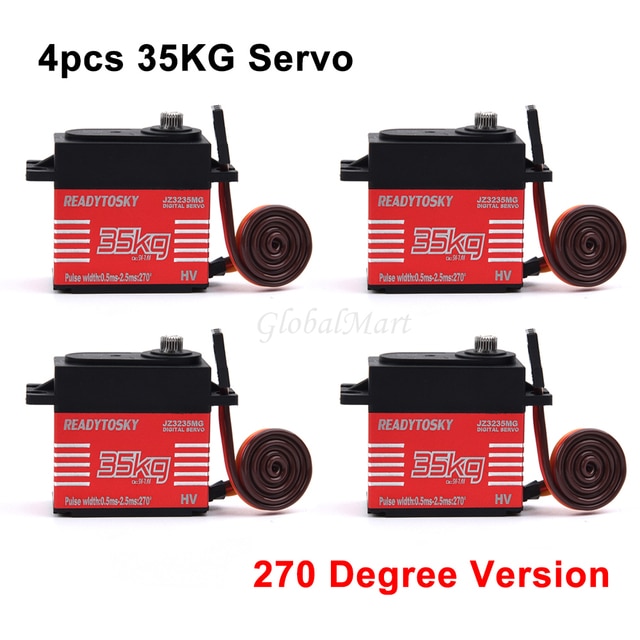

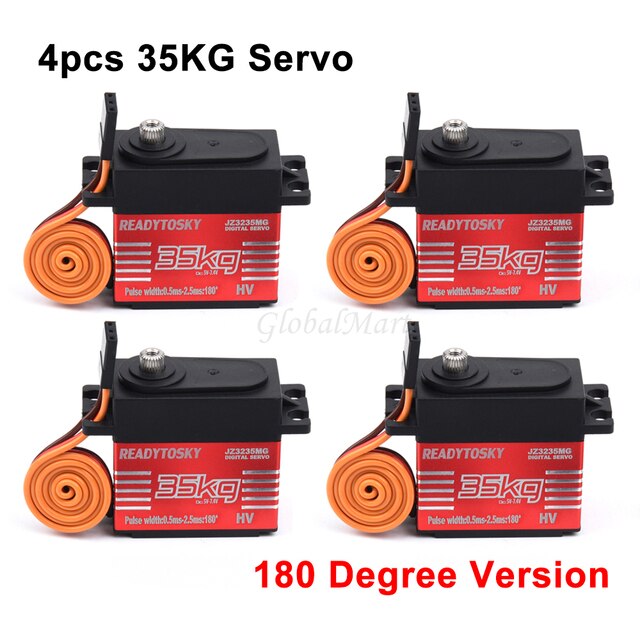

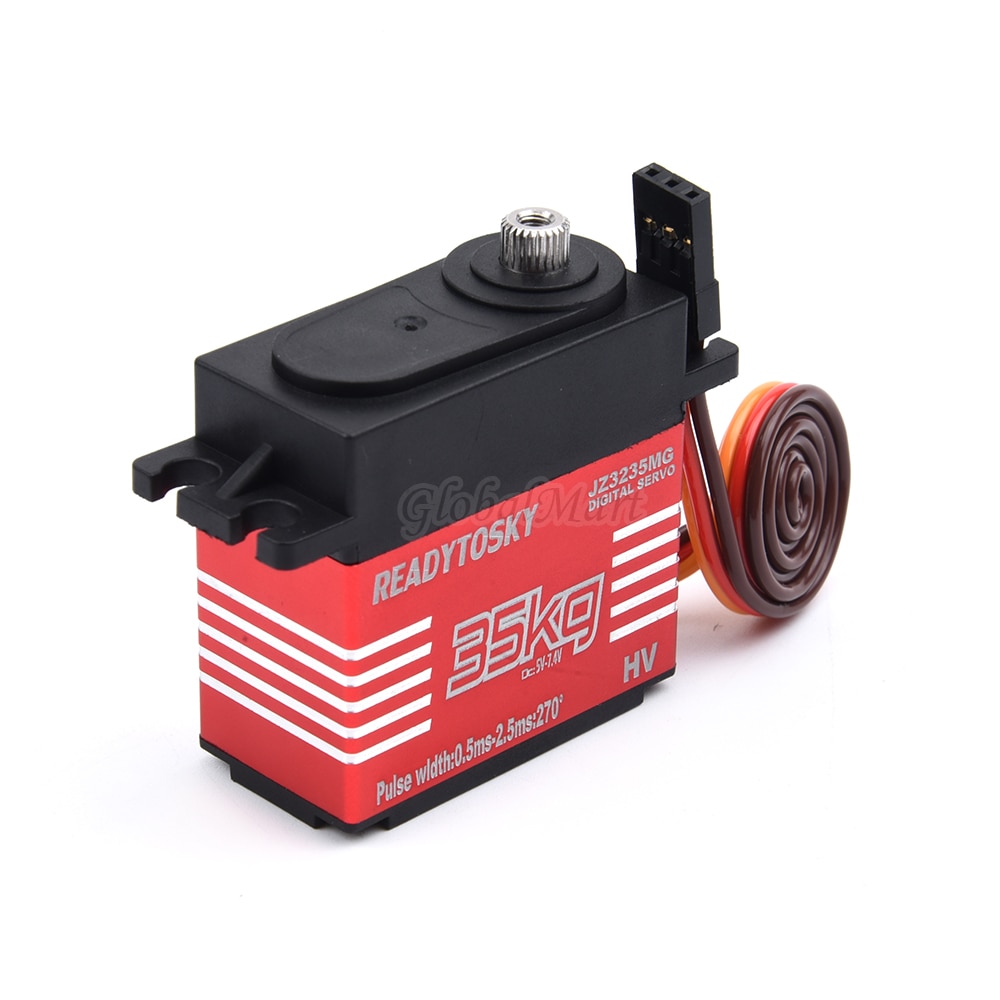

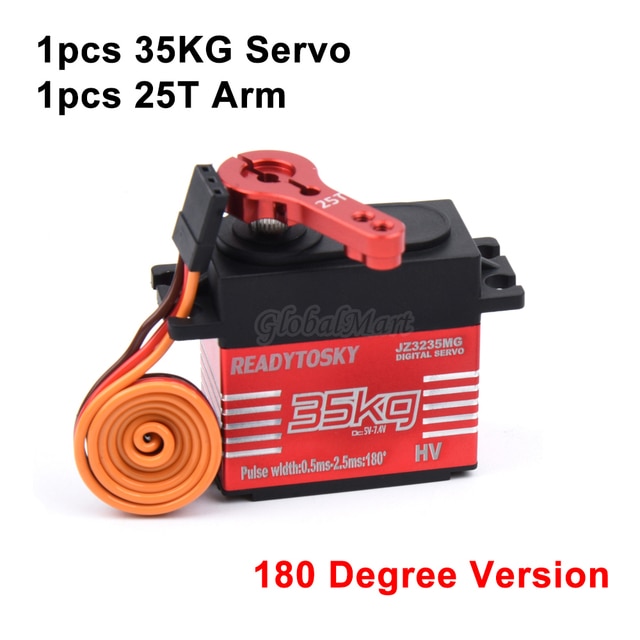

35KG Servo:
Apply Environmental Conditon :
1. Storage Temperature Range: -30°C～80°C
2. Operating Temperature Range: -25°C～70°C
Standard Test Environment:
1. Temperature Range: -25°C～70°C
2. Humidity Range: 65%±10%
Mechanical Specification:
1. Size: 40.0*20.5*40.5mm
2. Weight: 56g±2g
3. Gear type: 5 Metal
4. Limit angle: 360°
5. Bearing: 2BB
6. Horn gear spline: 25T Diameter :5.9mm
7. Horn type: Plastic, POM
8. Case: Engineering plastics(PBT)+Aluminum alloy
9. Connector wire: 320mm±5mm
10. Motor: Carbon brush motor
Electrical Specification:
1. Operat voltage: 4.8V - 7.2V
2. No load speed: 0.32sec/60° - 0.22sec/60°
3. Runnig current: 140mA - 200mA
4. Peak stall torque: 32.7kg.cm - 35.2kg.cm
5. Stall current: 2600mA±10% - 3400mA±10%
6. Working voltage range: 4.8 - 7.2V
Control Specification:
1. Command signal: Pulse width modification
2. Amplifier type: Digital controller
3. Pulse width range: 500～2500usec
4.Neutral position: 1500usec
5. Running degree: 180°±3°(when 500～2500usec)
6. Dead band width: 5 usec
7. Rotating direction: Counterclockwise (when 1000～2000usec)

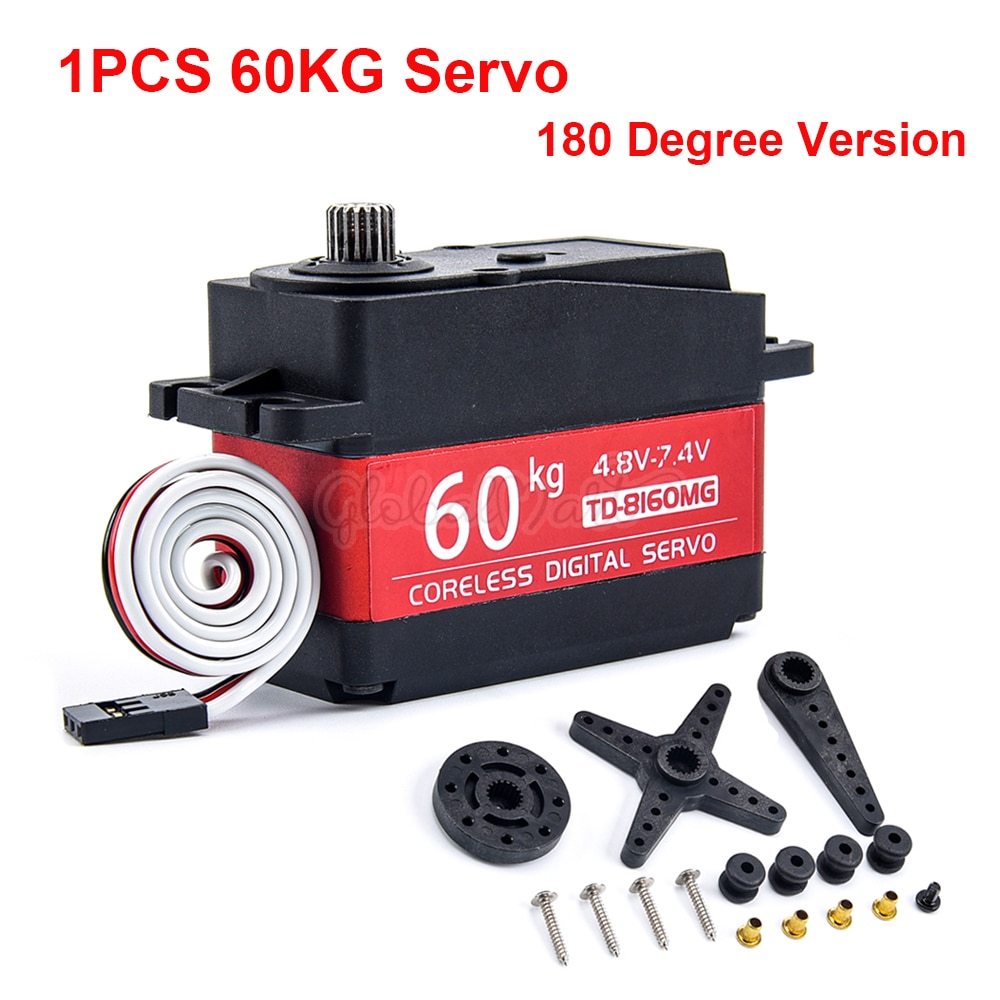

60kg Servo:
1.Apply Environmental Conditon
1.1 Storage Temperature Range -30°C～80°C
1.2 Operating Temperature Range -25°C～70°C
2. Standard Test Environment
2.1 Temperature Range -25°C～70°C
2.2 Humidity Range 65%±10%
3. Mechanical Specification
3.1 Size 65*30*48mm
3.2 Weight 160g±5%
3.3 Gear type "6 Metal"
3.4 Limit angle 360°
3.5 Bearing 2BB
3.6 Horn gear spline 18T diameter:8.1mm
3.7 Horn type Plastic, POM
3.8 Case "Engineering plastics(PBT)+Aluminum alloy"
3.9 Connector wire 320mm±5mm
3.10 Motor Carbon brush motor
3.11 Splash water resistance
4.Electrical Specification
No. Operat voltage 6V 8.4V
4.1 Idle current 5mA 5mA
4.2 No load speed 0.17sec/60° 0.13sec/60°
4.3 Runnig current 400mA 510mA
4.4 Peak stall torque 58.5kg.cm 70kg.cm
4.5 Stall current 8.5A±10% 10.4A±10%
4.6 Working voltage range " 4.8-8.4V
5.Control Specification
5.1 Command signal Pulse width modification
5.2 Amplifier type Digital controller
5.3 Pulse width range 500～2500usec
5.4 Neutral position 1500usec
5.5 Running degree 180°±3°(when 500～2500usec)
5.6 Dead band width 5usec
5.7 Rotating direction Counterclockwise (when 1000～2000usec)

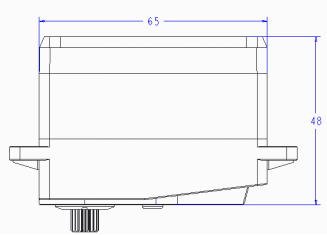

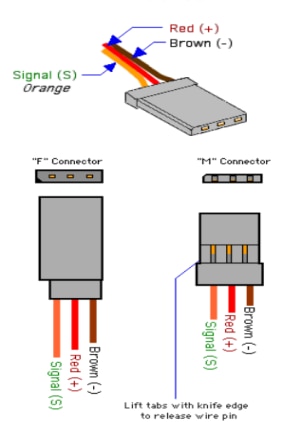

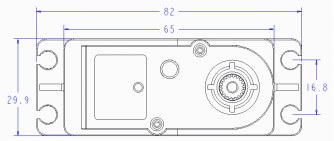

6.The Drawings: The Wire and plug:

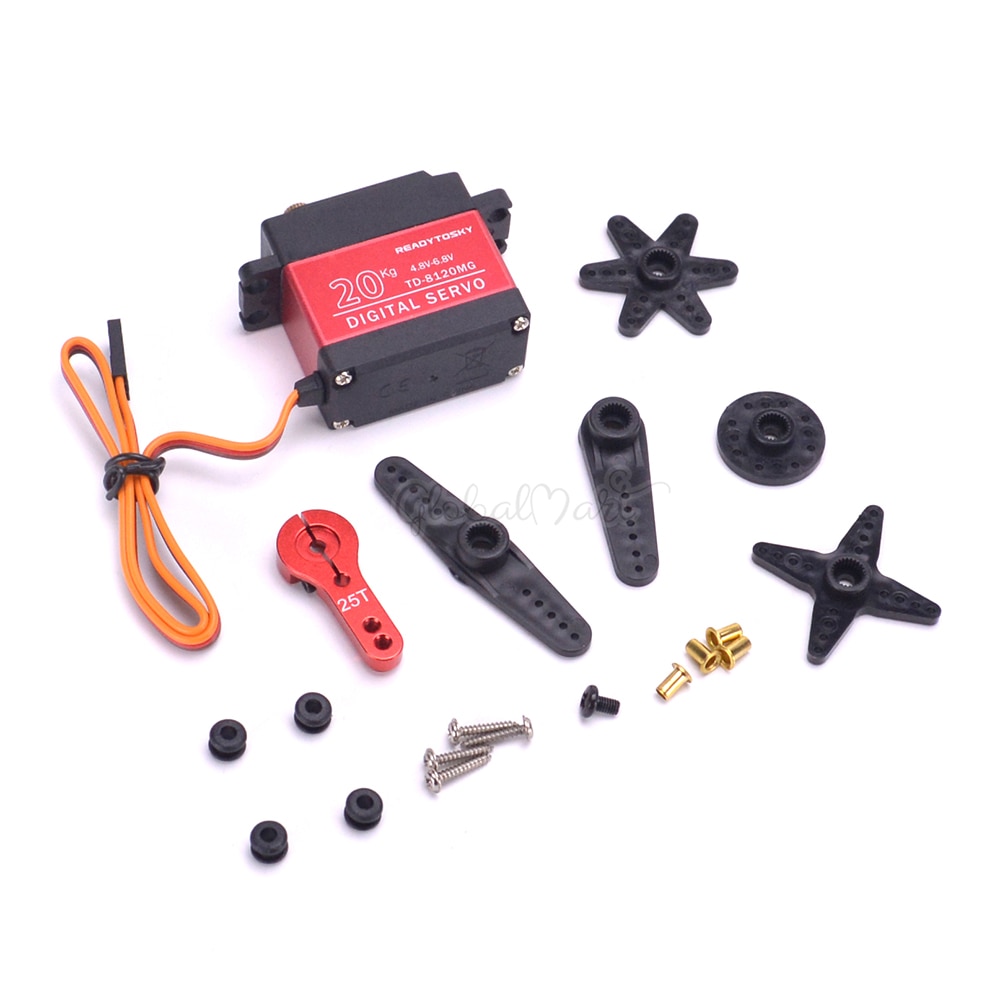

Package included: ( Send it as your choice, as the picture showed)

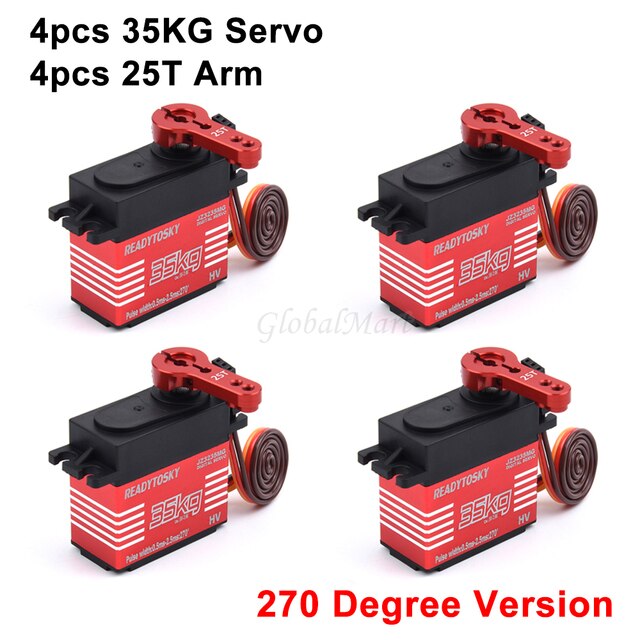

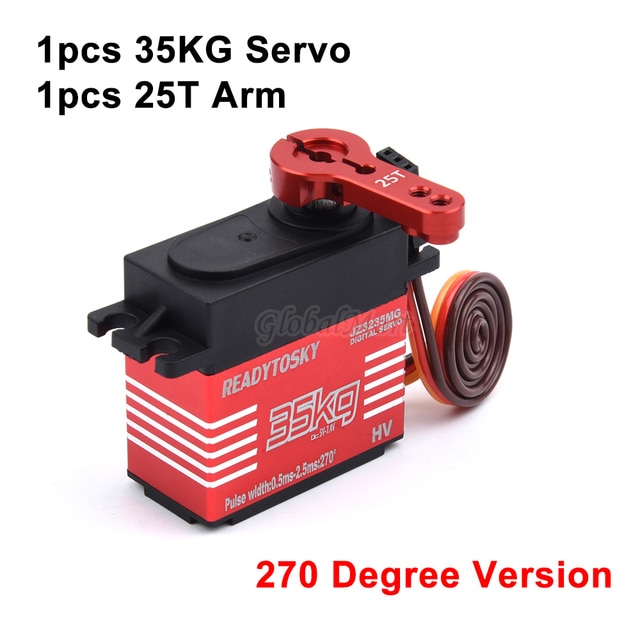

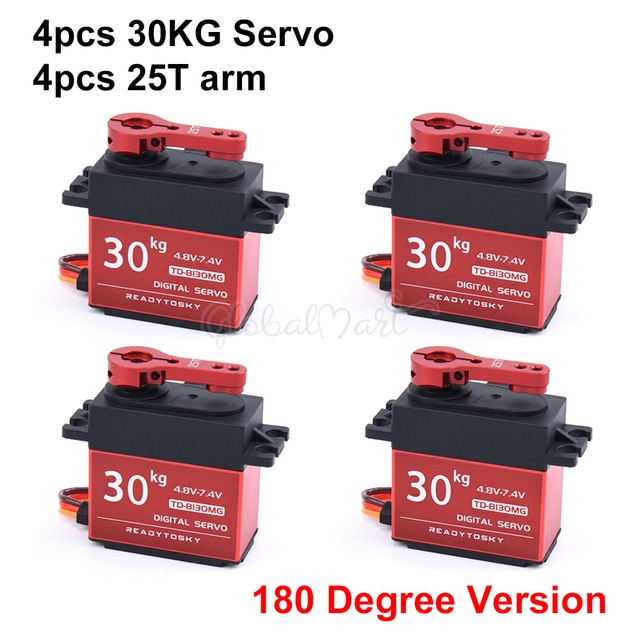

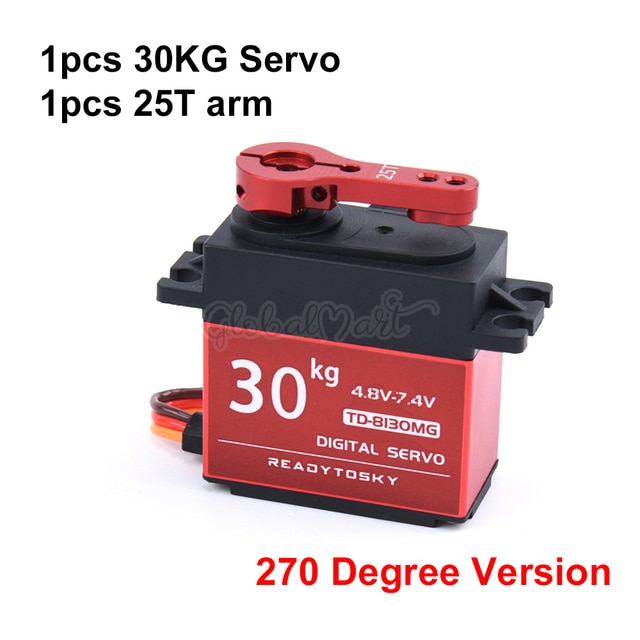

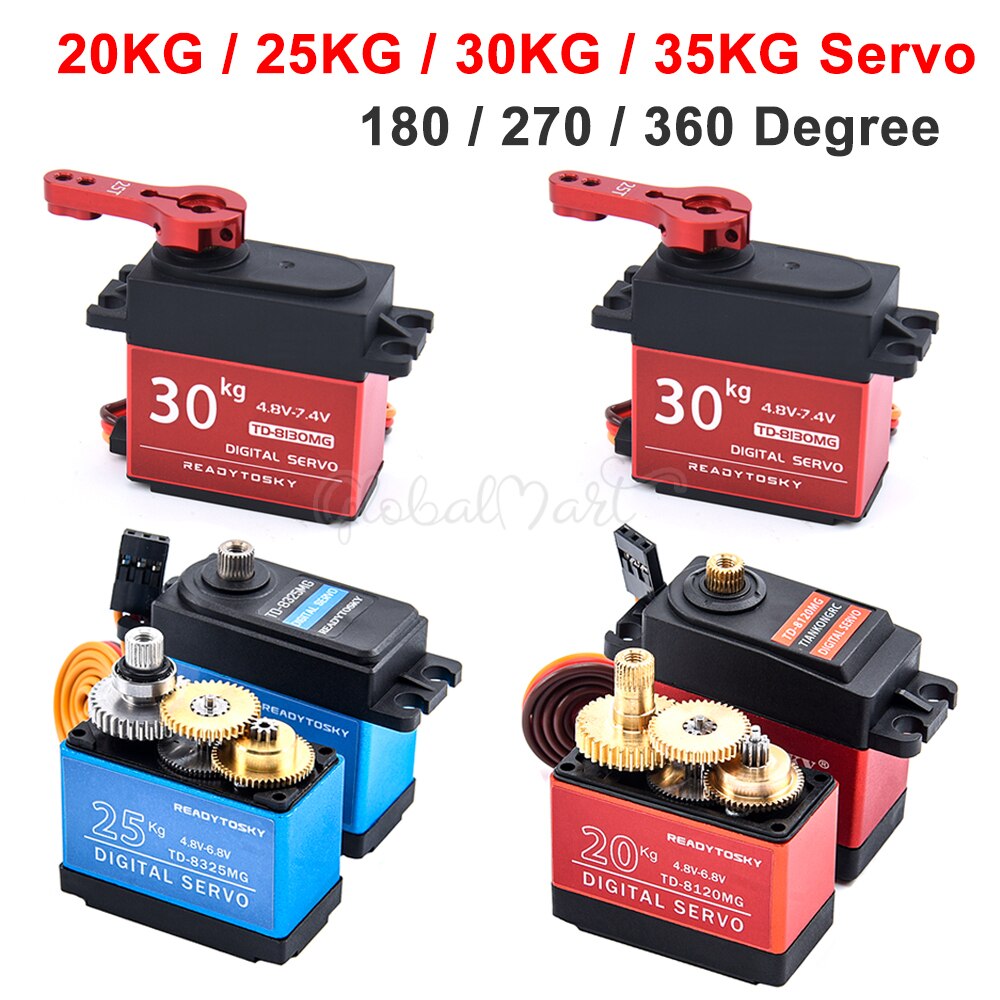

1PCS / 4PCS 20kg / 25kg / 30kg / 35kg / 60kg servo (There are two kinds of 30KG Servo, send it at random)
1PCS / 4PCS 25T arm
Note:The direction the servo rotates all depends on the signal the servo is receiving.
Special Notice:

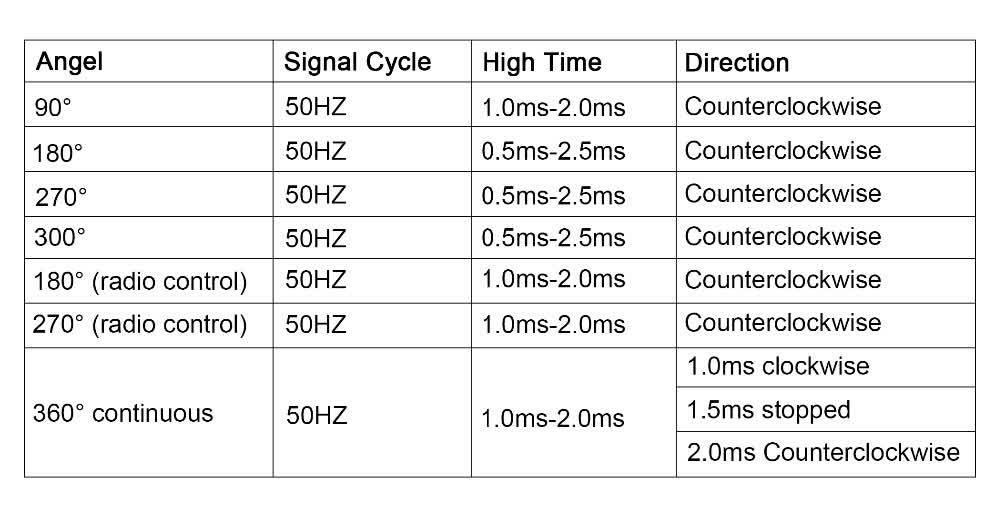

The RC Use-Angle 180/270 marked in selections to be shipped by Angle-180/270 servo, Cuz the below signal match with Angle-180/270 servo support PWM signal width 500-2500us.
Transmitter only can generate 1000-2000us, it is half signal of the servo, thus the feedback angle will be half at 90/135.
The Angle 180/270 which request pwm signal width 500-2500us, if you use a transmitter to control them, the angle will be 90/135.
Note: If you need the servo reach 180 degree and controlled by your remote controller, Please buy here :
- Size: 20kg 25kg 30kg 35kg servo
- Technical parameters: Value 5
- Model Number: Waterproof Servo 20kg 25kg 30kg 35kg 60kg servos
- For Vehicle Type: boAts
- Tool Supplies: Battery
- Four-wheel Drive Attributes: Motors
- Remote Control Peripherals/Devices: Remote Controller
- Upgrade Parts/Accessories: Gear
- RC Parts & Accs: Servo Accessories
- Material: Metal
- Brand Name: Readytosky
- Origin: Mainland China
- Recommend Age: 12+y
- Use: Vehicles & Remote Control Toys
