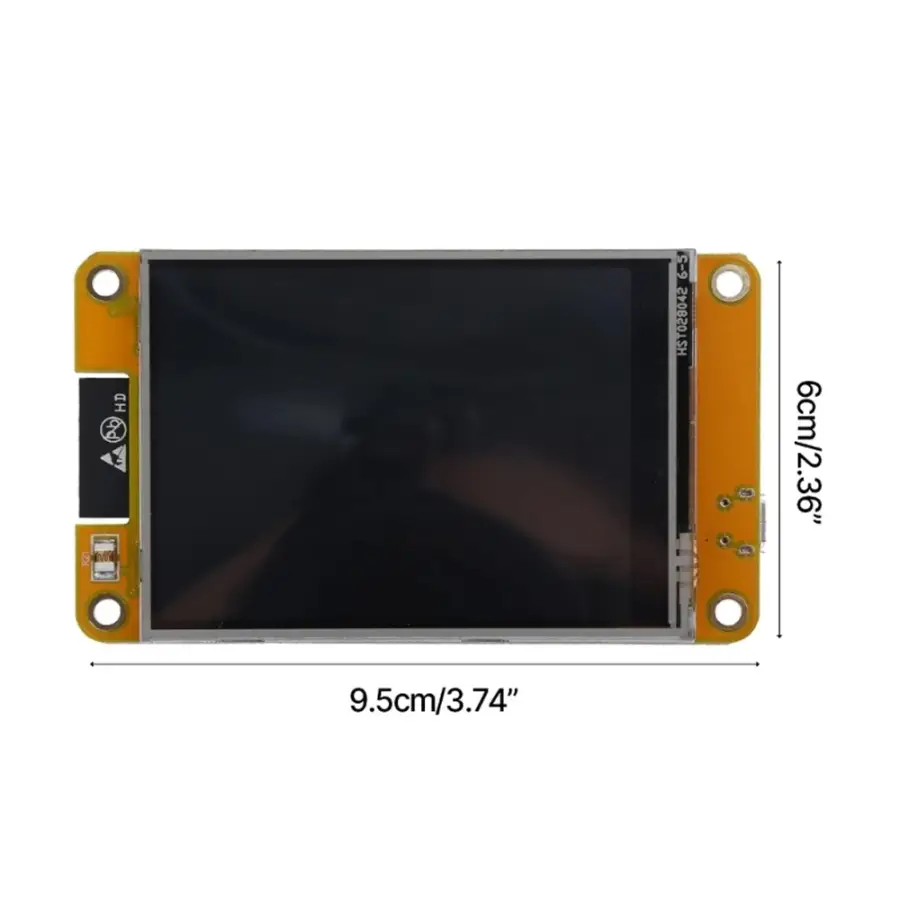

ESP32 2.8inch Display Module 240*320 2.8" LCD TFT Touch Screen Display WiFi BLE Board ESP32-2432S028R ILI9341 Drive for Arduino
5.0 (1 votes) | 25 orders
Price:
US $48.05 - 124.76
Discount Price:
US $
46.42 -
115.55
-3%

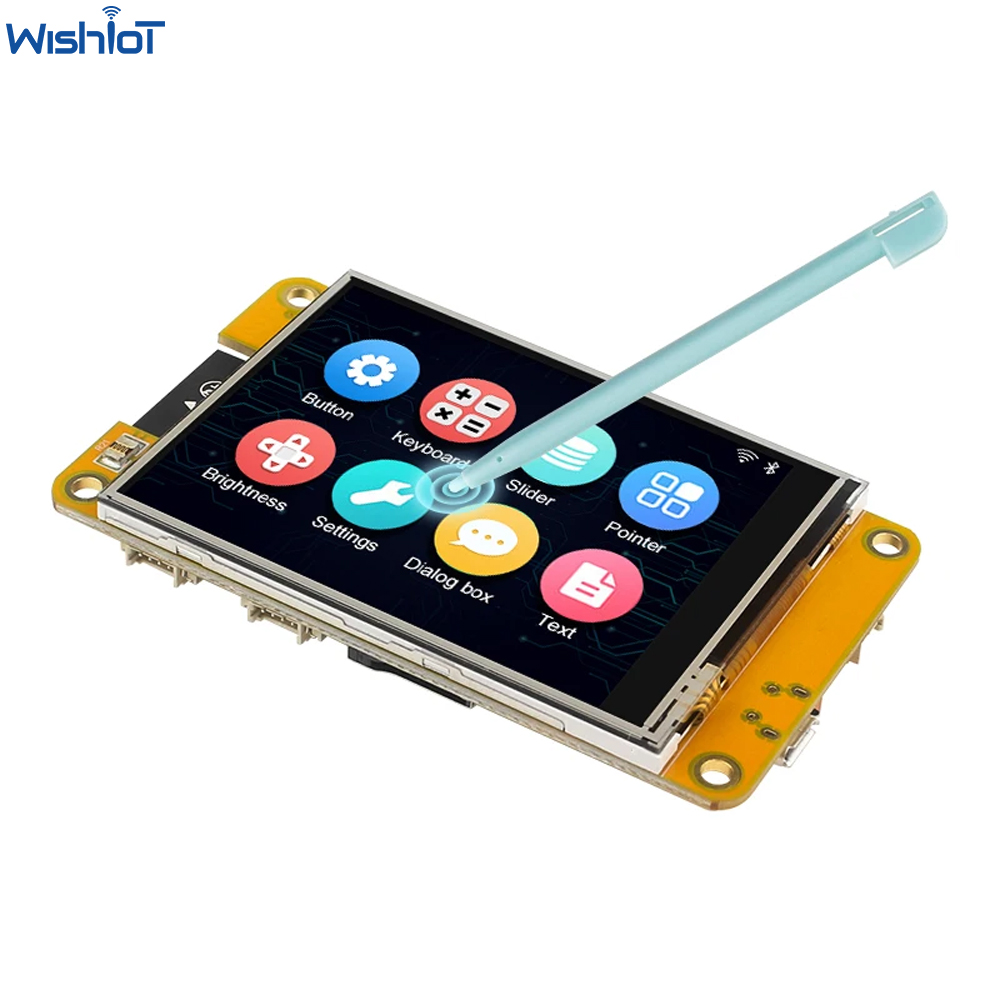

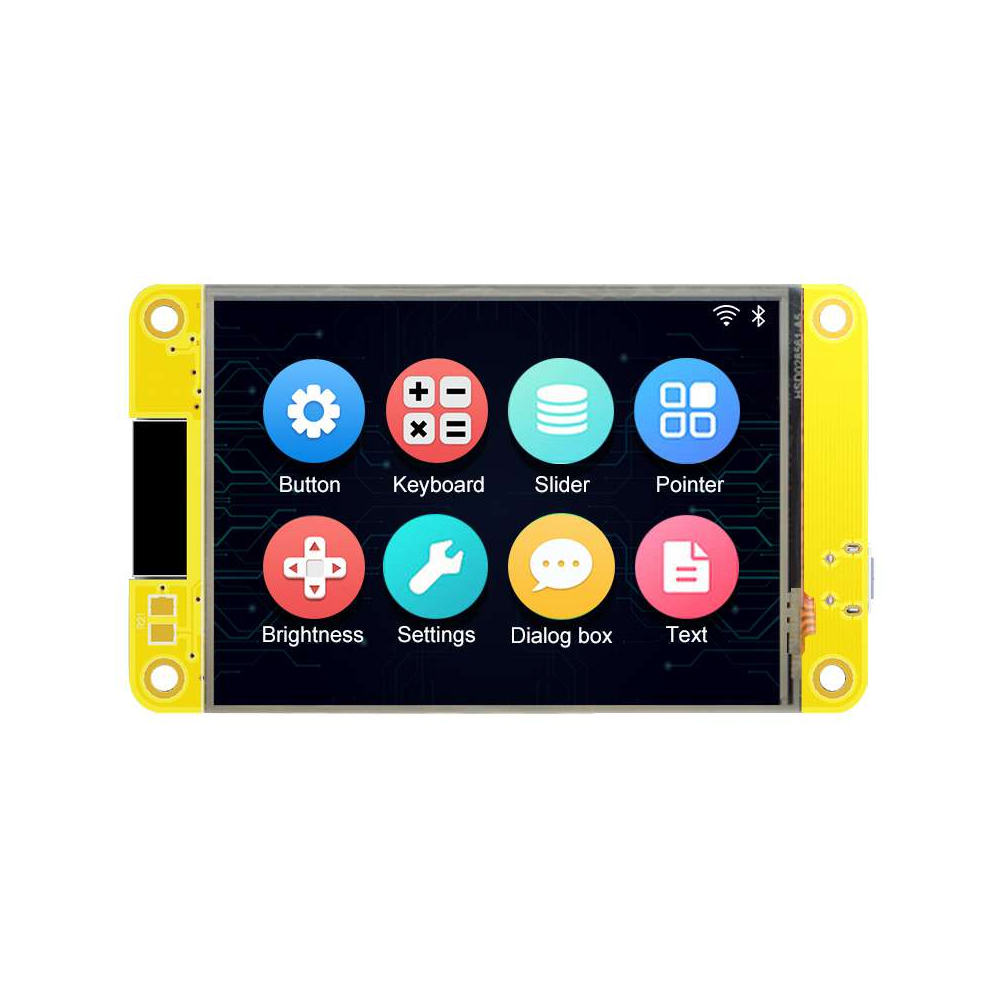

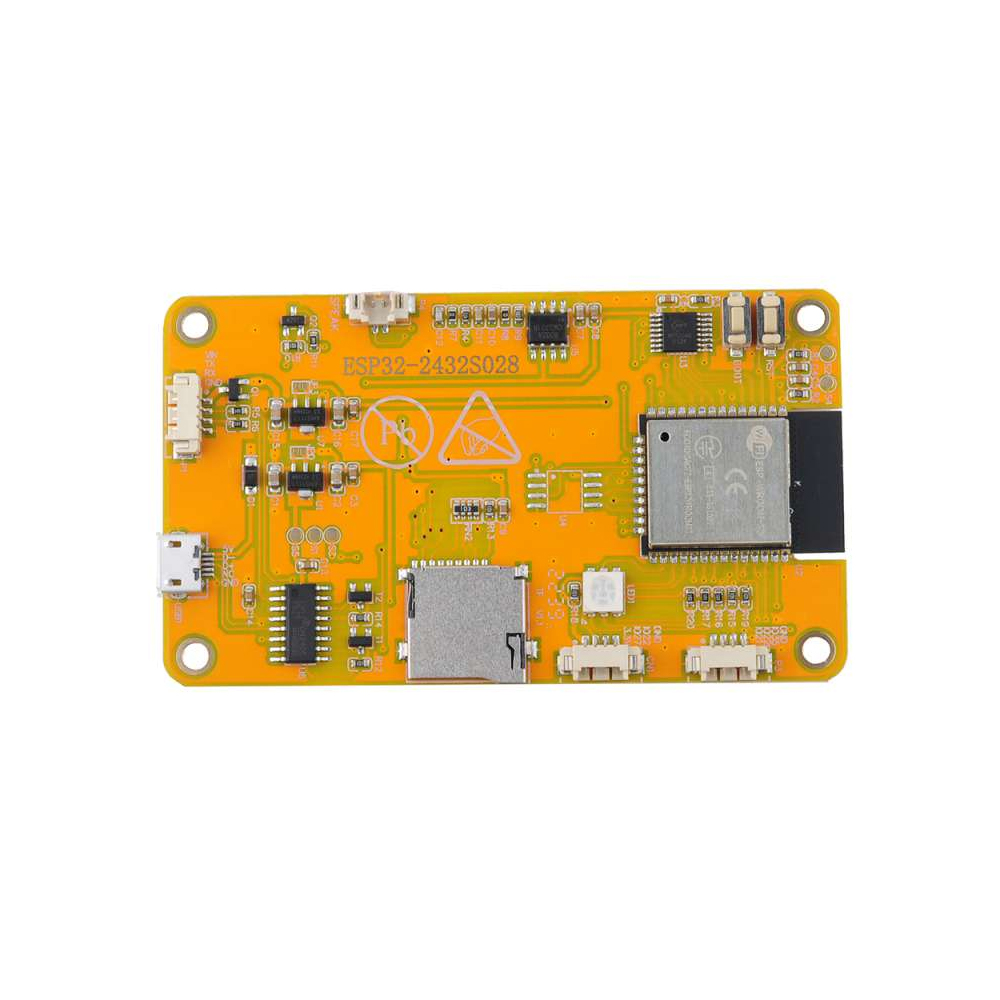

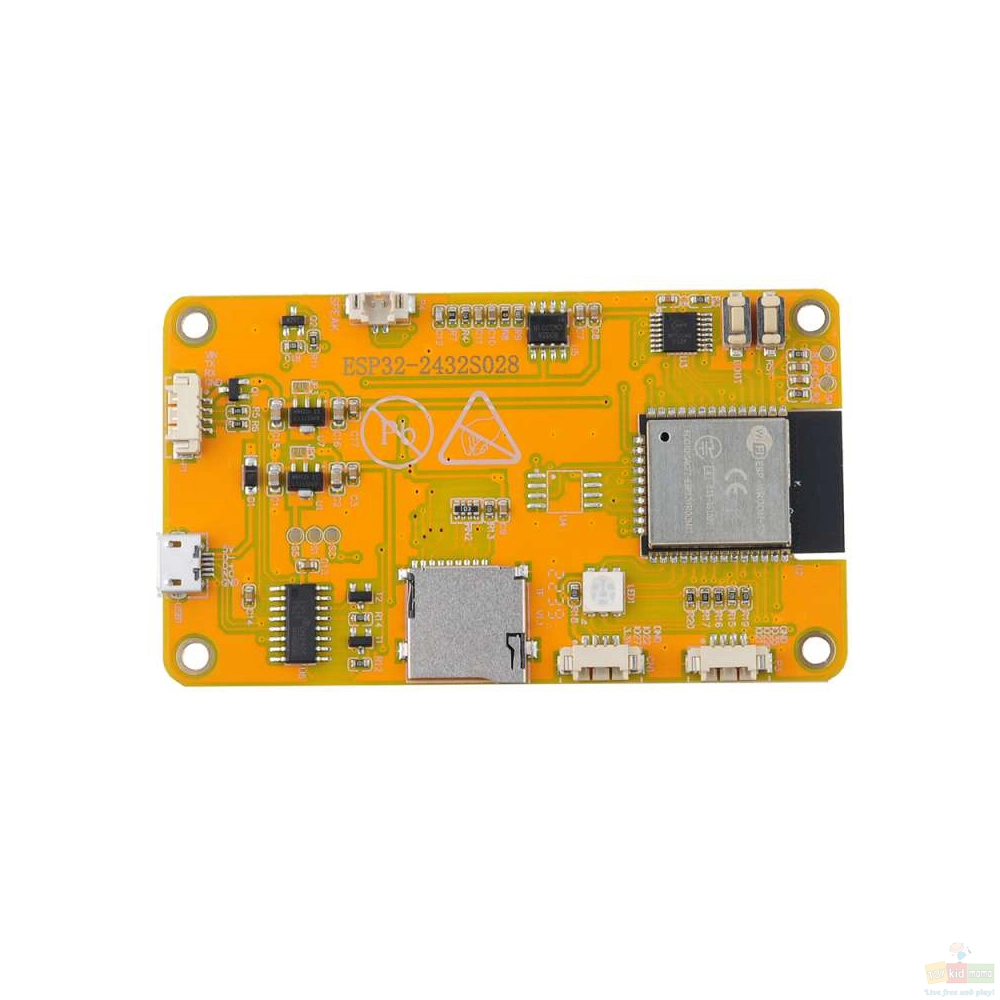

ESP32 2.8inch Display Module 240*320 LCD TFT Touch Screen Display WiFi Blue-tooth Board ESP32-2432S028R Drive Chip ILI9341 for Arduino
Parameter:
Use low-power dual-core 32-bit CPU, which can be used as an application processor.
The main frequency is up to 240MHz, and the computing power is up to 600 DMIPS
Built-in 520 KB SRAM

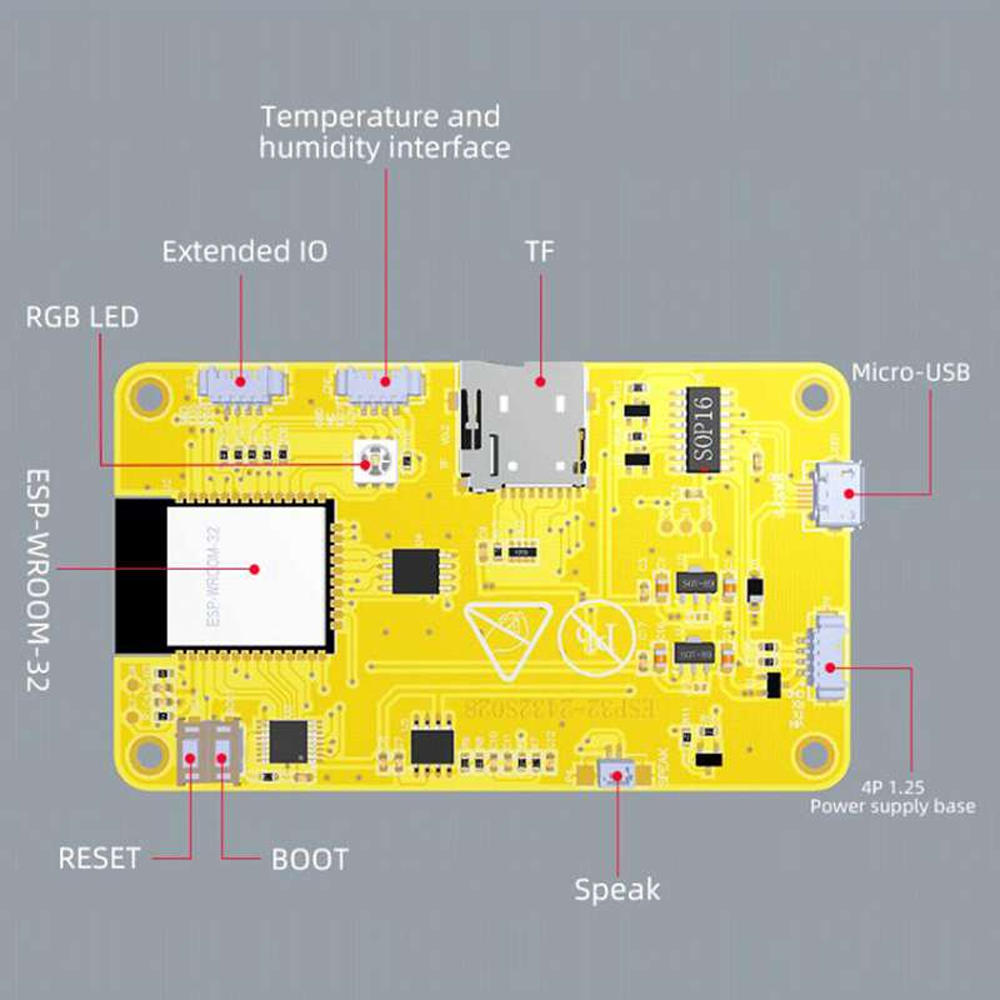

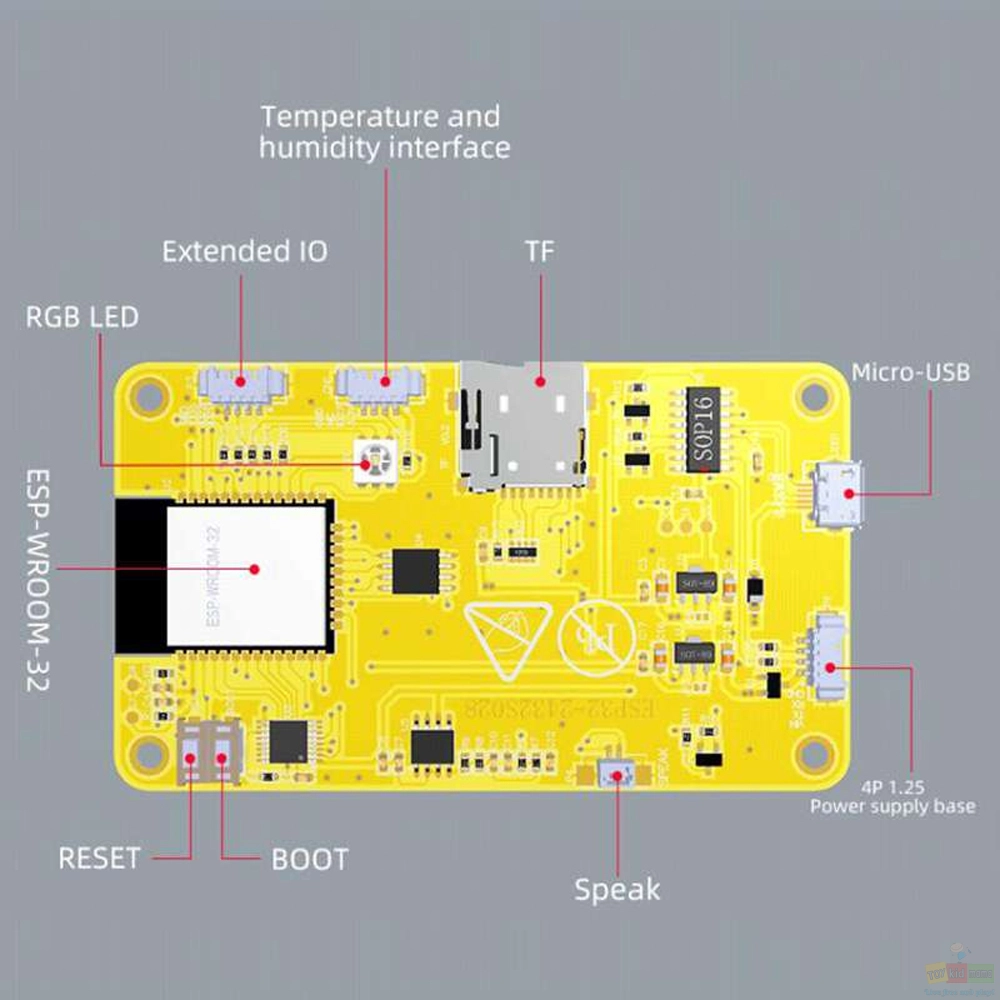

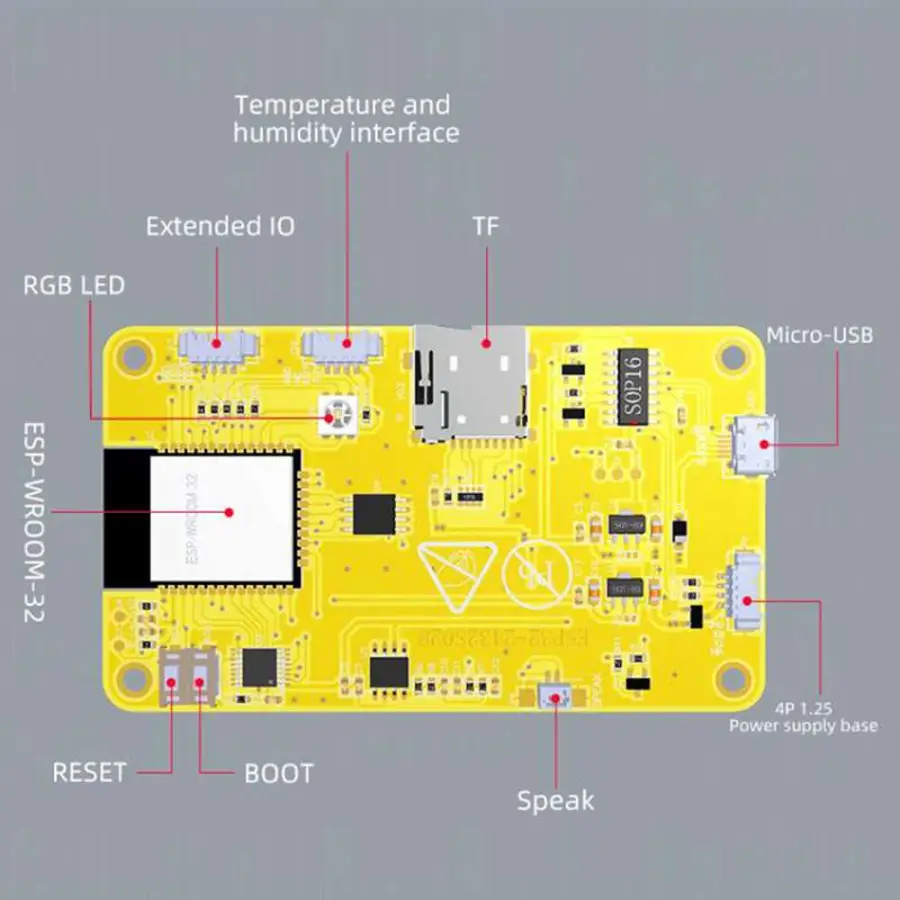

Support UART/SPI/I2C/PWM/ADC/DAC and other interfaces
Support OV2640 and OV7670 cameras, built-in flash
Support picture WiFI upload
Support TF card
Support multiple sleep modes.
Embedded Lwip and FreeRTOS
Support STA/AP/STA+AP working mode
Support Smart Config/AirKiss one-click network configuration
Support secondary development
Specifications:
Working voltage 4.75-5.25V
SPI Flash default 32Mbit
RAM internal 520KB
Wi-Fi 802.11b/g/n/e/i
Blue-tooth Blue-tooth 4.2BR/EDR and BLE standard
Support interface (2Mbps) UART, SPI, I2C, PWM
Support TF card, maximum support 4G
IO port 9
Serial port rate default 115200bps
Spectrum range 2400 ~2483.5MHz
Antenna form Onboard PCB antenna, gain 2dBi
Image output format: JPEG (only OV2640 support), BMP, GRAYSCALE
Packaging method DIP-16
Transmit power 802.11b: 17±2dBm (@11Mbps)
802.11g: 14±2dBm (@54Mbps)
802.11n: 13±2dBm (@MCS7)
Receiving sensitivity CCK, 1Mbps: -90dBm
CCK, 11Mbps: -85dBm
6Mbps(1/2BPSK): -88dBm
54Mbps (3/464-QAM): -70dBm
MCS7 (65Mbps, 72.2Mbps): -67dBm
Power consumption Turn off the flash: 180mA@5V
Turn on the flash and adjust the brightness to the maximum: 310mA@5V
Deep-sleep: The lowest power consumption can reach 6mA@5V
Modern-sleep: the lowest can reach 20mA@5V
Light-sleep: the lowest can reach 6.7mA@5V
Security WPA/WPA2/WPA2-Enterprise/WPS
Working temperature -20 ℃~ 70 ℃
Storage environment -40 ℃~ 125 ℃, <90%RH
Application:
Home smart device image transmission
Wireless monitoring
Smart agriculture
QR wireless recognition
Wireless positioning system signal
And other IoT applications
Package:

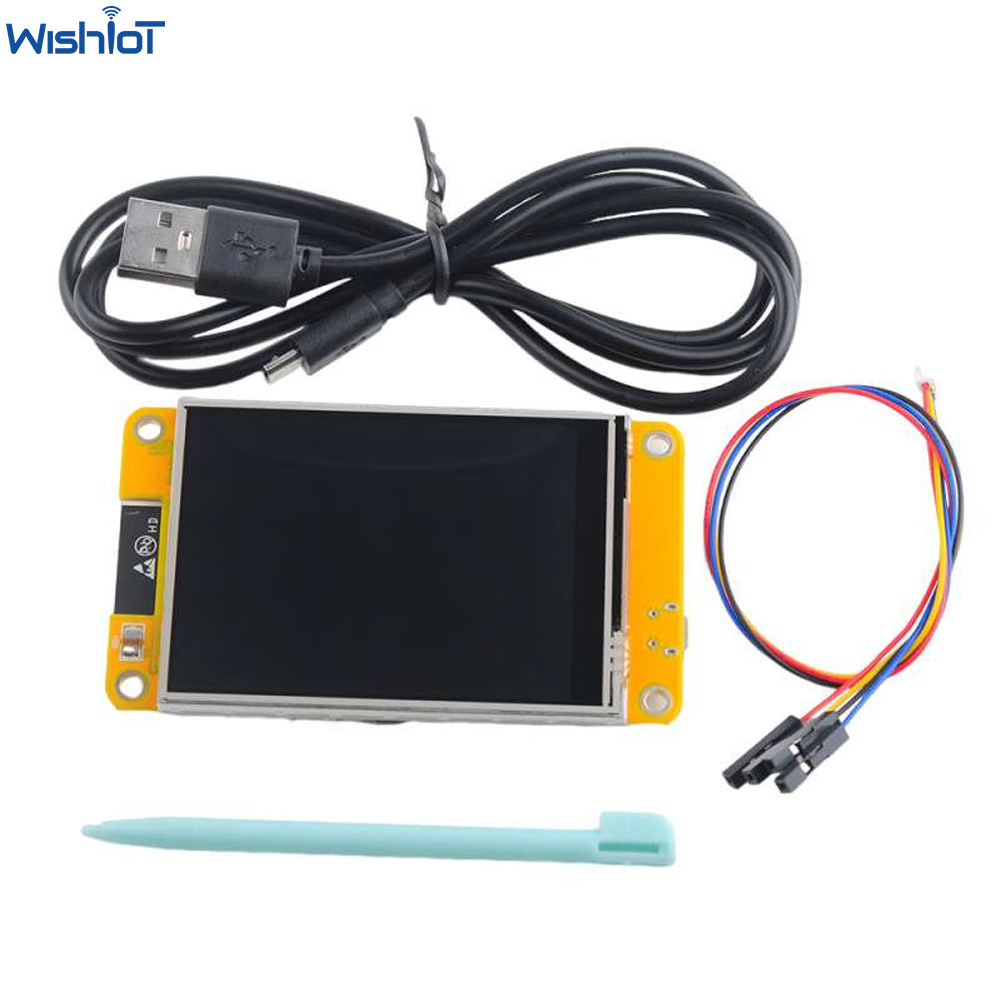

Bundle 1 1PCS 2.8inch display
Bundle 2 2PCS 2.8inch display
Bundle 5 5PCS 2.8inch display
Packaging Details
- Unit Type:
- Package Weight: 0.500
- Package Size: 10x10x10
- Brand Name: wishiot
- Recommend Age: 14+y
- Hign-concerned Chemical: None
- Is Electric: No Battery
- Origin: Mainland China
- Model Number: FZ5815
- Product name: ESP32 2.8inch Display Module
- Support: for Arduino
- SRAM: 520 KB
- Support: WiFi & Blue-tooth
- Choice: yes
- semi_Choice: yes
