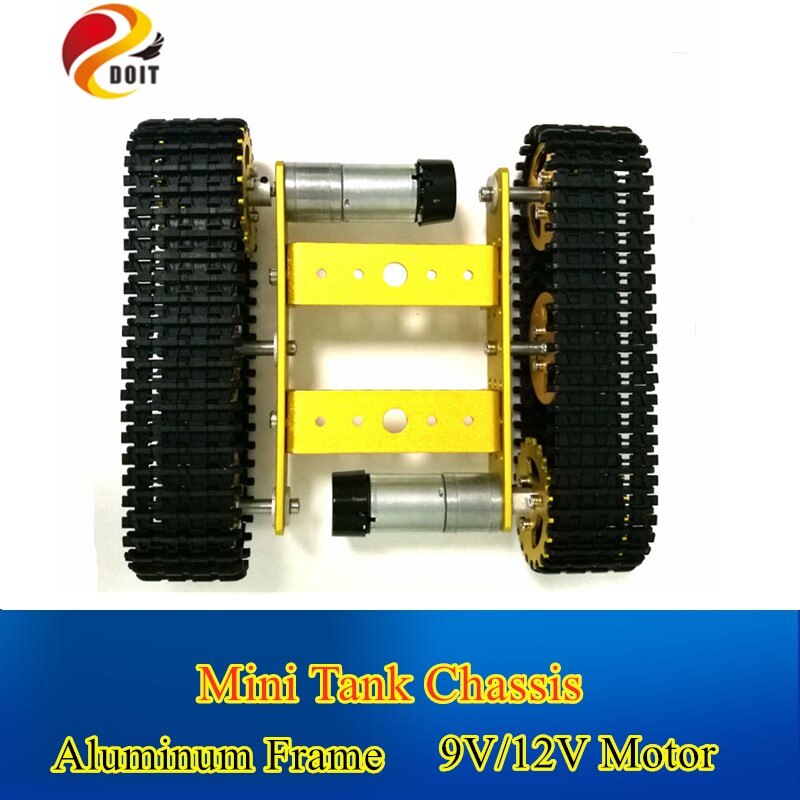

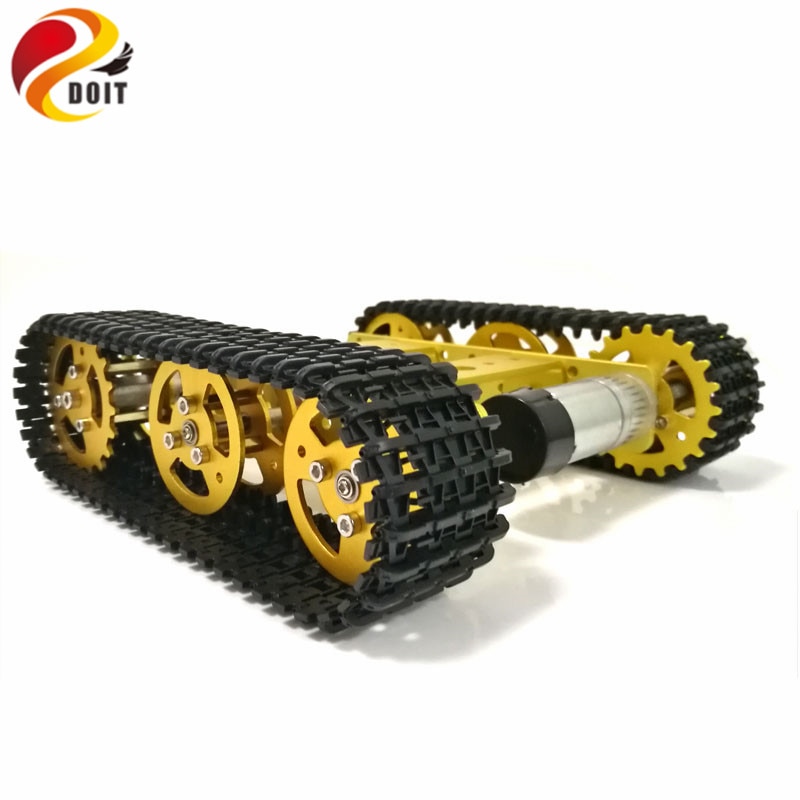

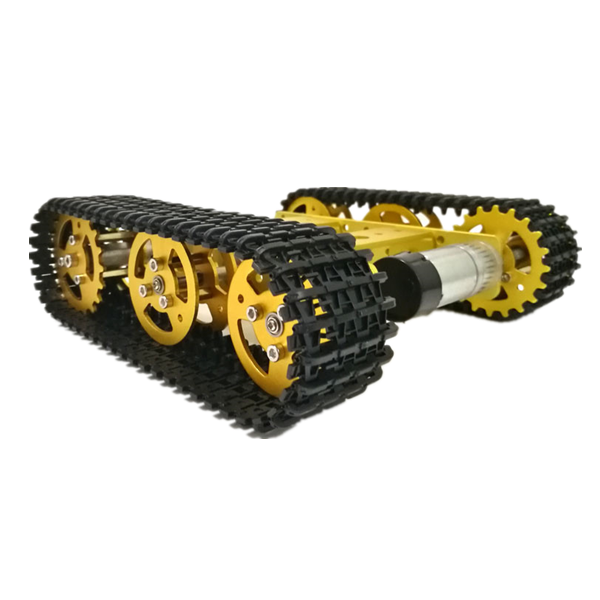

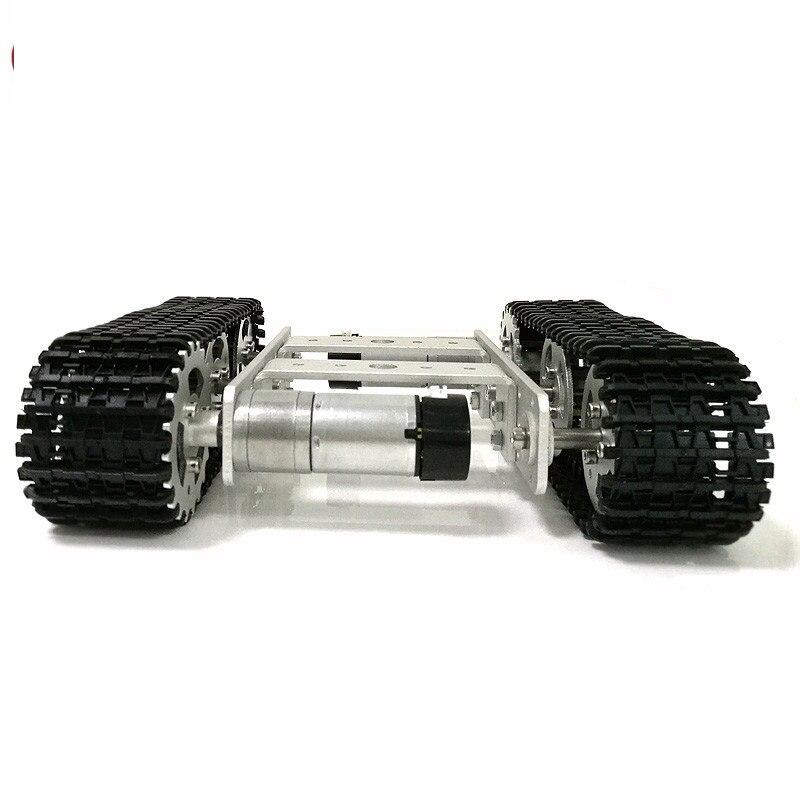

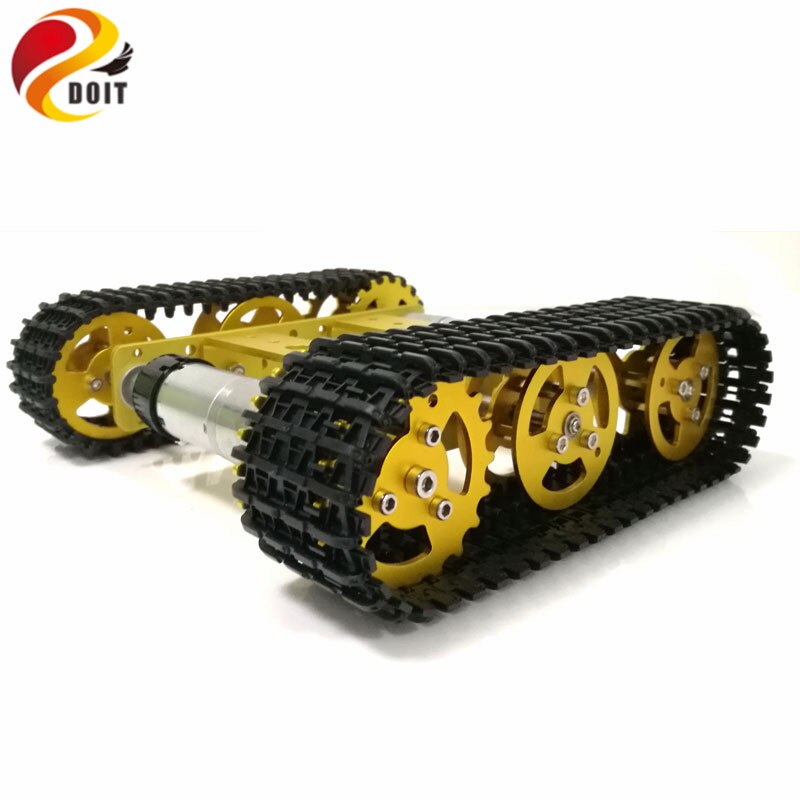

Mini T100 RC Metal Robot Tank Chassis with Plastic Track and 2 Motors for Robot Platform

0.0 ( votes)
US $ 63.65 - 131.36 / piece

Product Parameters

Tank Chassis Parameters

  • Name: Mini T100 Tracked Tank Chassis

  • Material: Aluminum Alloy

  • Surface treatment: sandblasting oxidation

  • Color: Golden yellow、silver、black (for optional)

  • Track: Engineering plastic

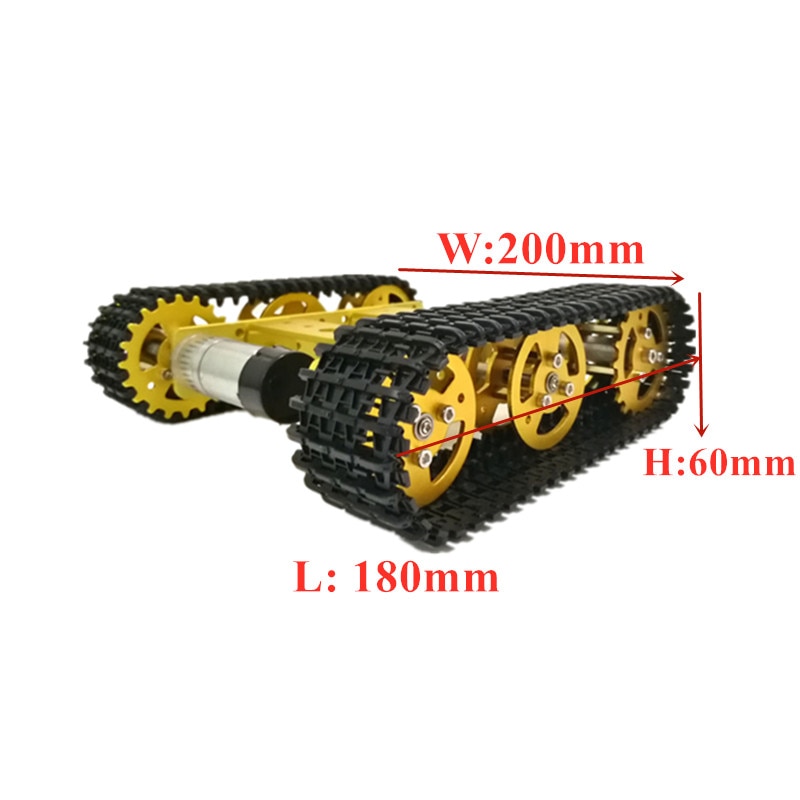

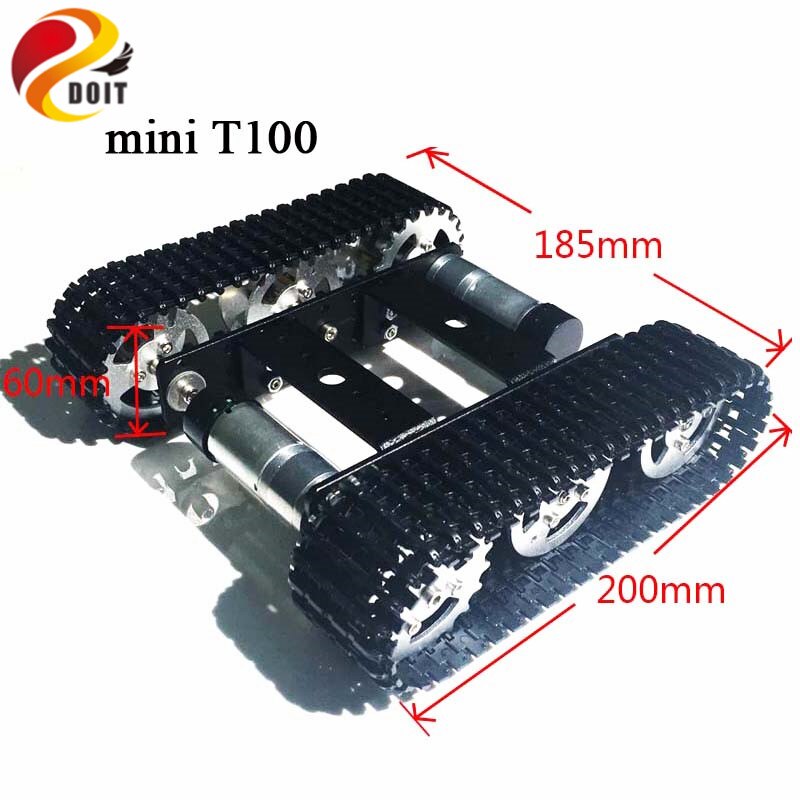

  • Size: About 185*200*60mm(Length*width*Height)

  • Weight: 0.70kg

  • Design load: 5kg



Motor Parameters

Motor: 33GB-520 Motor, 9V&150RPM, 12V&300RPM

Motor parameters(33GB-520 Motor):

  • Rated Voltege: DC12V

  • No load Current: 100mA

  • Voltage: 6-12V

  • No load Speed: 170-350r/min

  • Weight: 100g

Motor parameters(25mm 9V DC Motor, has hall sensor):

  • Name: 25mm gear motor

  • Output speed: 150±10%rpm

  • No_load Current: 200mA (Max)

  • Stall current: 4500mA(max)

  • Stall torque: 9.5kgNaN

  • Rated speed: 100±10%rpm

  • Rated torque: 3000gNaN

  • Rated Current: 1200mA (Max)

  • Noise: 56dB

  • Working voltage: 9V

  • Outside Shaft Length: 14.5mm

  • Shaft End Play: 0.05-0.50mm

  • Screw Size: M3.0

  • Dia. Of Shaft phi4mm, D3.5

  • encoder: 2 pulses/circle

Motor parameters(12V DC Motor without encoder):

  • Voltage: 12V DC

  • RPM: 300RPM

  • Current: 0.55A

  • Diameter: 25mm

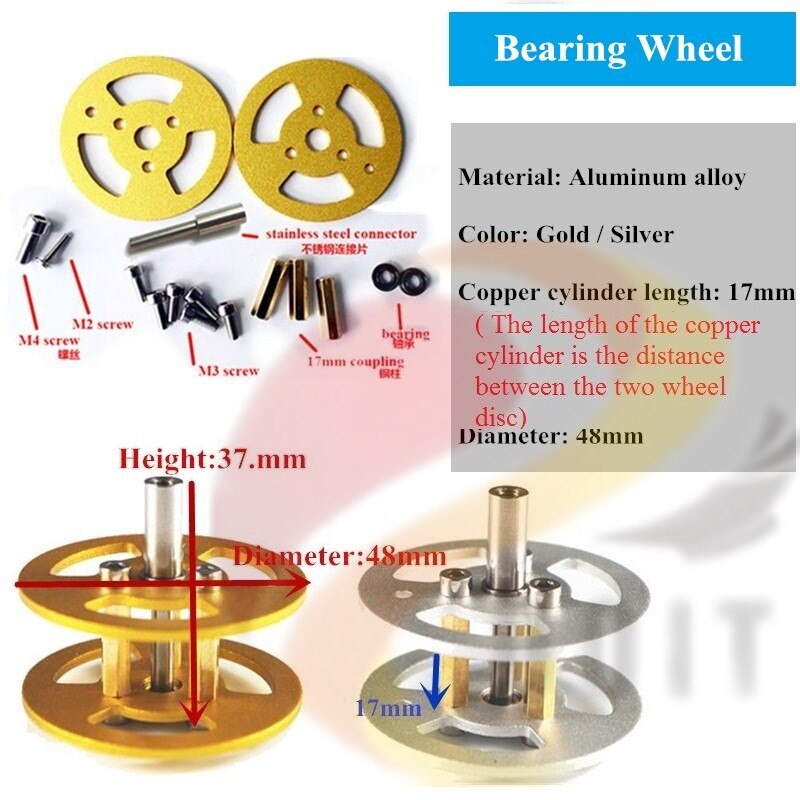

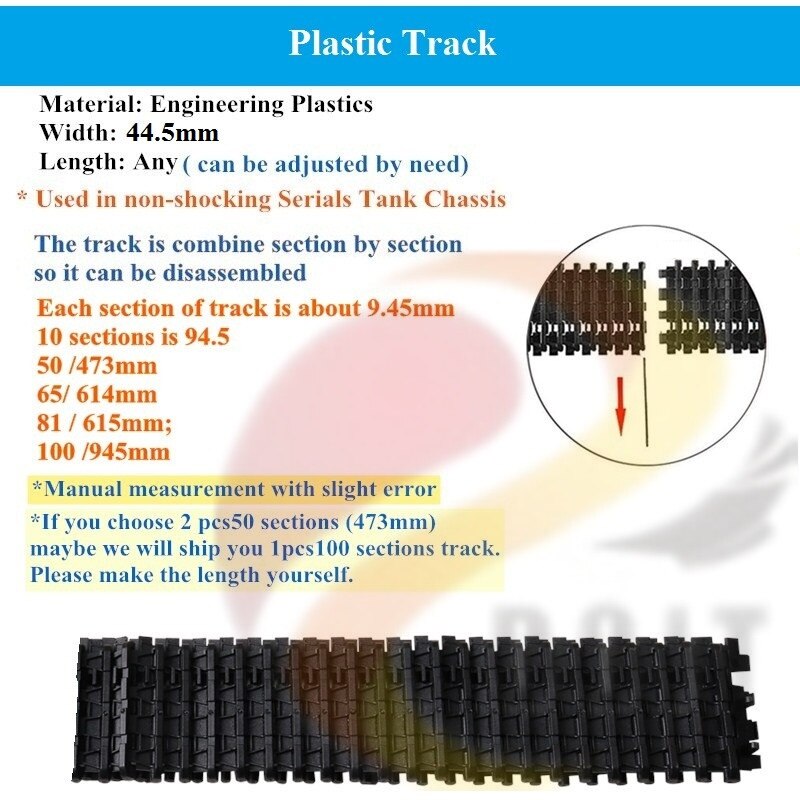

  • Wheel Parameters/ Taack Parametes

  • 非减震履带5581副本_副本

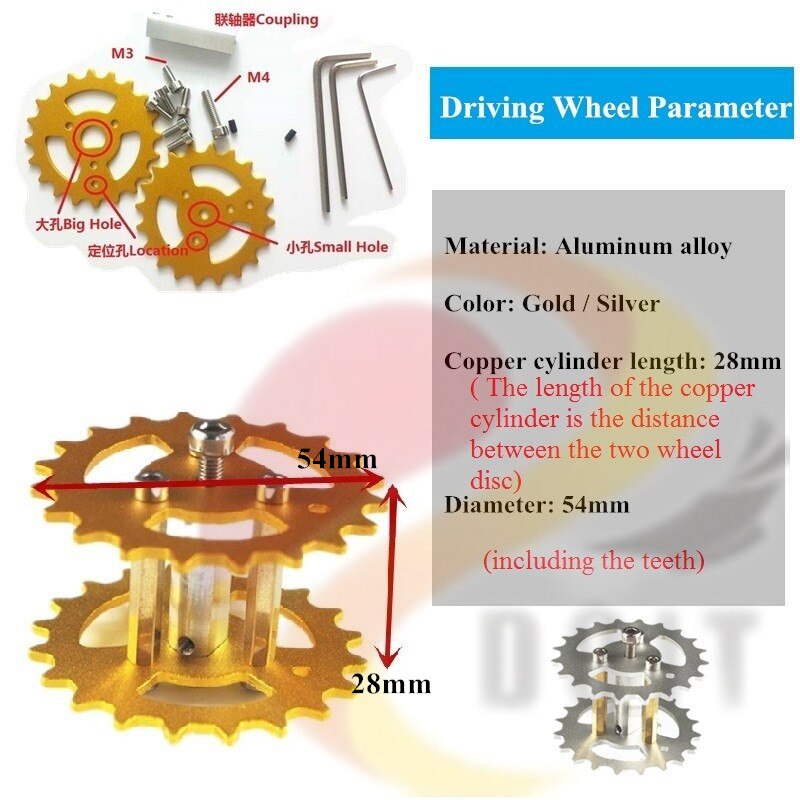

  • 金属驱动轮5581_副本


  • 驱动轮参数5581_副本




Package Included

silver/golden/black 9V 150rpm:

  • Silver/golden/black tank chassis: 1 set(motor: 9V 150rpm)

silver/golden/black 12V 350rpm:

  • Silver/golden/black tank chassis: 1 set(motor: 12V 350rpm)

silver/golden/black 12V 330rpm:

  • Silver/golden/black tank chassis: 1 set(motor: 12V 330rpm)



  • For the convenience of transport, the products is unassembled. Please leave your mail box to get the installation manual or visit our official wiki:

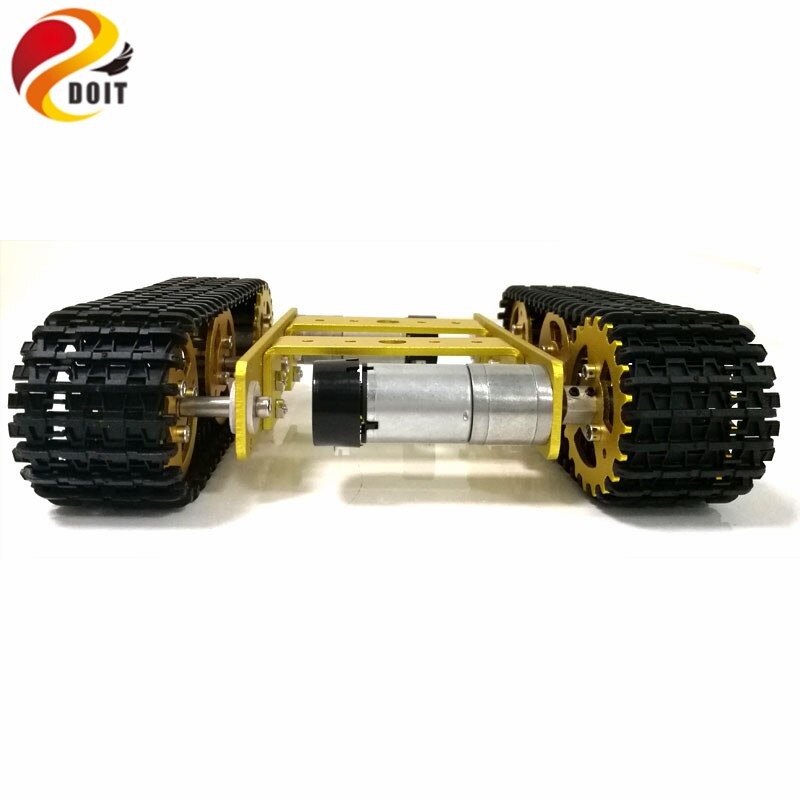

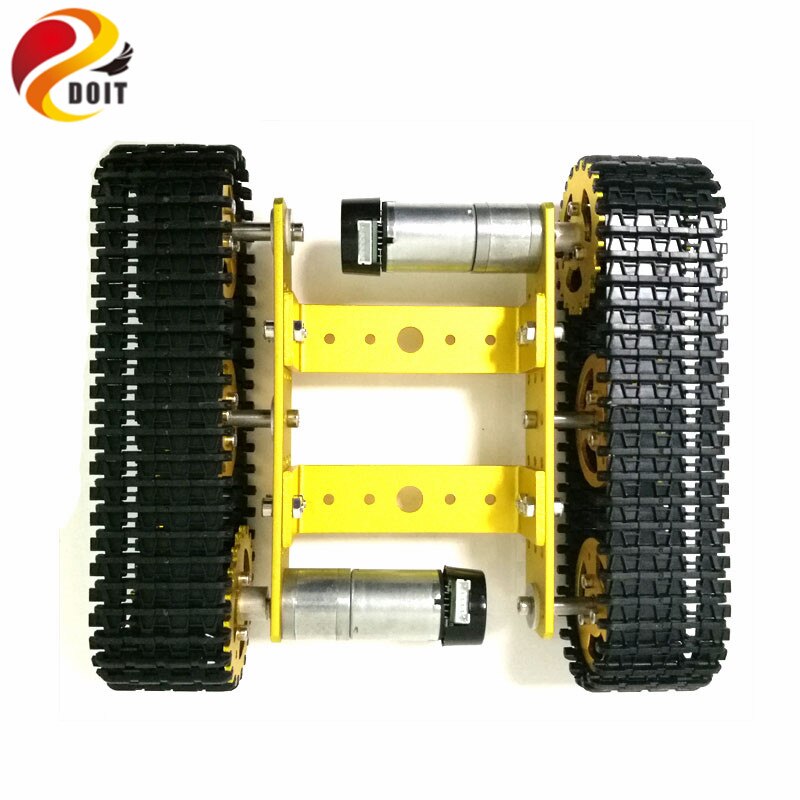

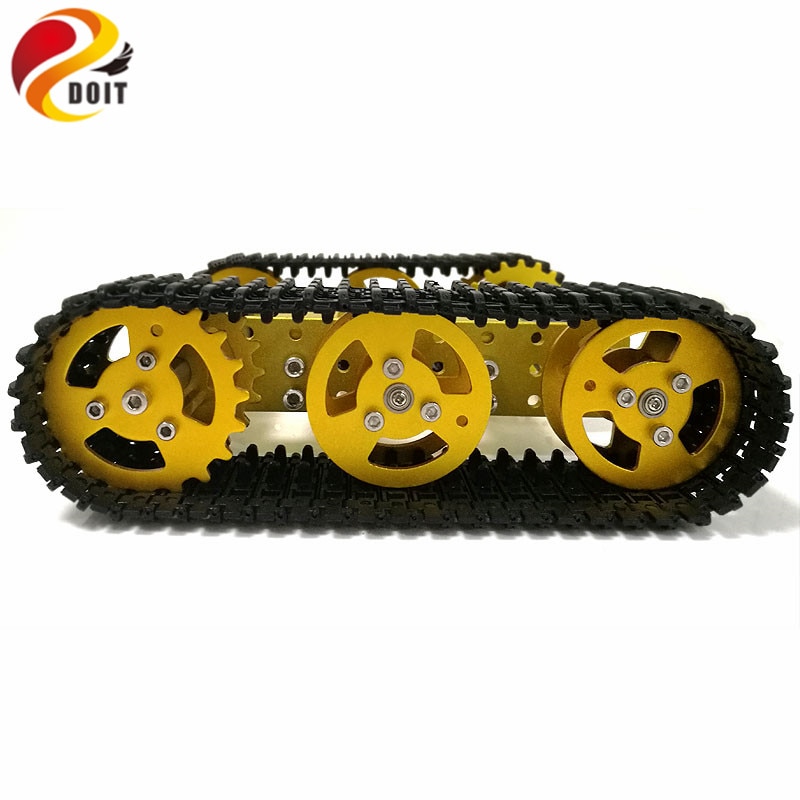

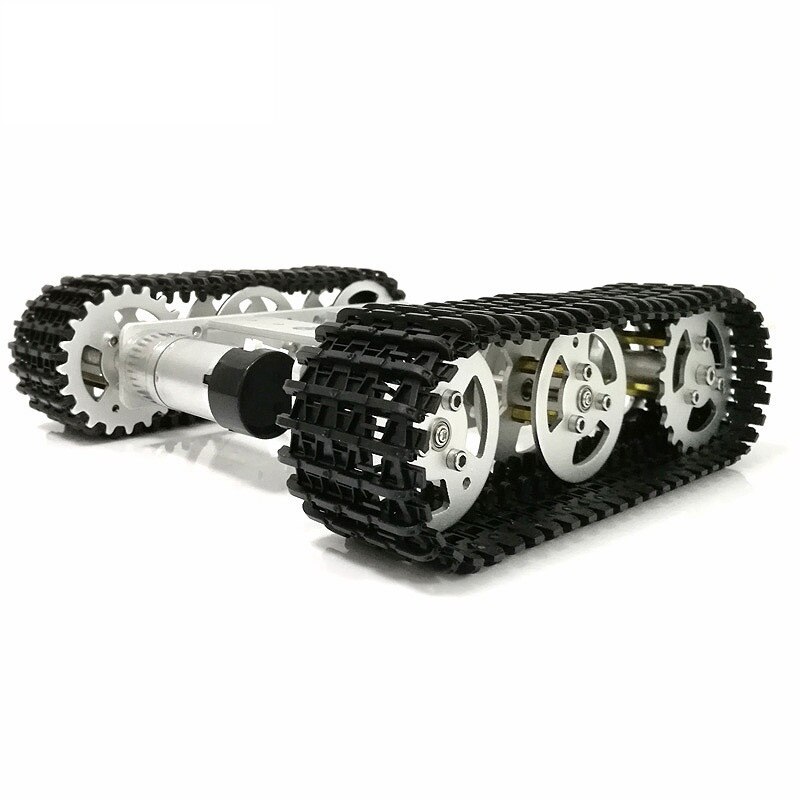

Product Images








  • Certificate Number: 2017NT04142709
  • 3C: Certificate
  • Barcode number: 2ALSB-ESP-F
  • Barcode: Yes
  • Certification: 3C
  • Dimensions: 185*200*60mm
  • State of Assembly: Unassembled Kit
  • Warning: None
  • Warranty: Other
  • Model Number: mni T100
  • Design: Other
  • Controller Mode: MODE1,MODE2
  • Flight Time: Other
  • Control Channels: 2 Channels
  • Controller Battery: lithium battery
  • Remote Distance: 50-100m
  • Charging Time: Other
  • Charging Voltage: Other
  • Remote Control: Yes
  • Material: Metal
  • Brand Name: SZDoit
  • Origin: Mainland China
  • Features: Remote Control
  • Type: Tank
  • Age Range: > 8 years old
