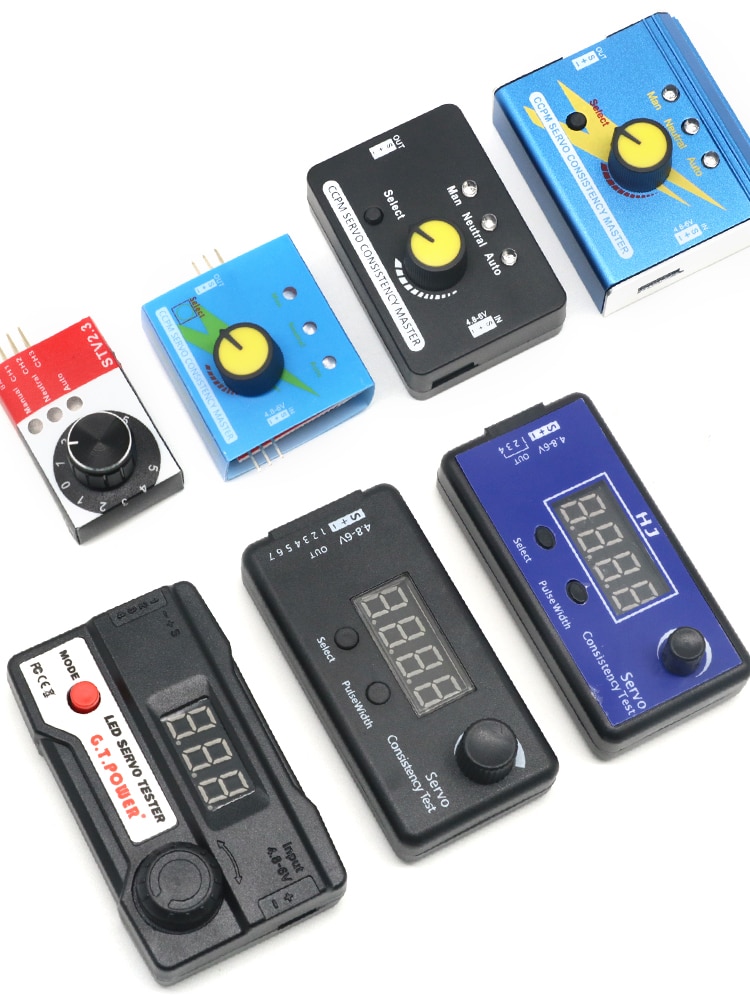

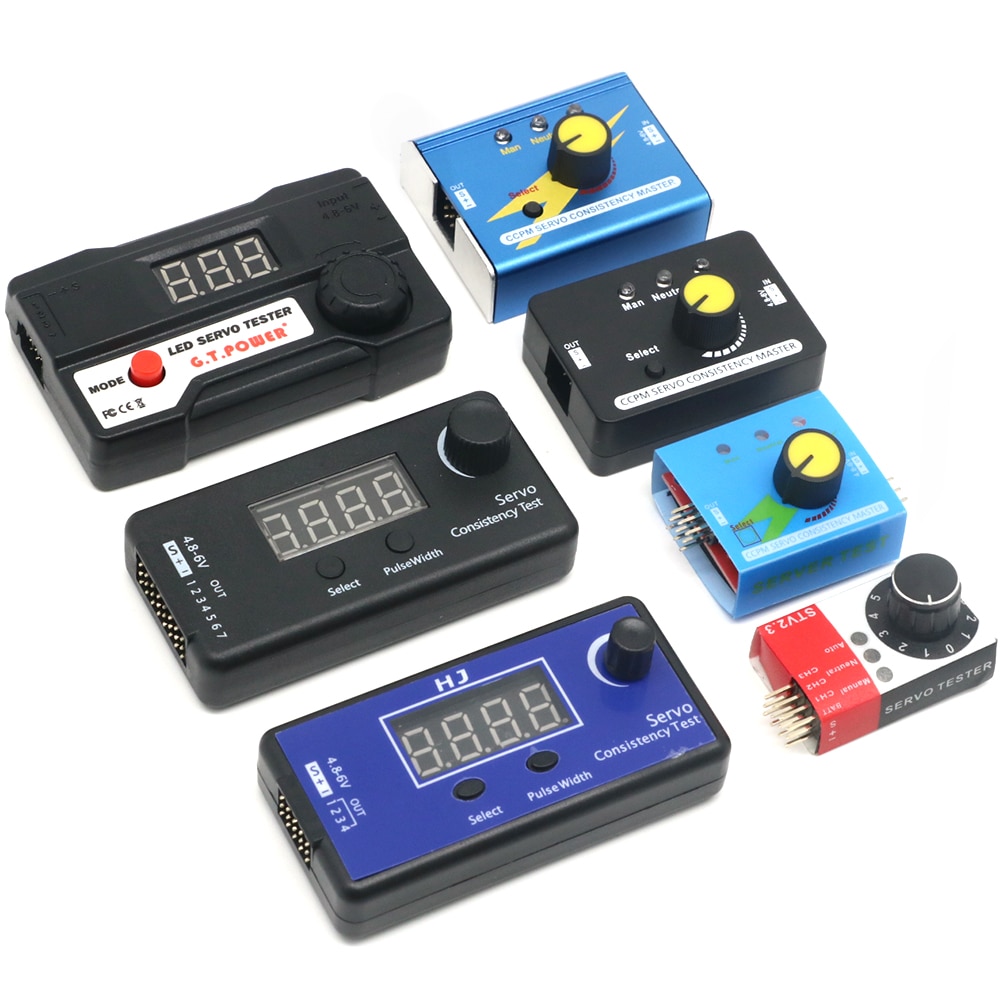

RC Electronic Speed Controller Tester & Servo Tester for Helicopter Airplane Car

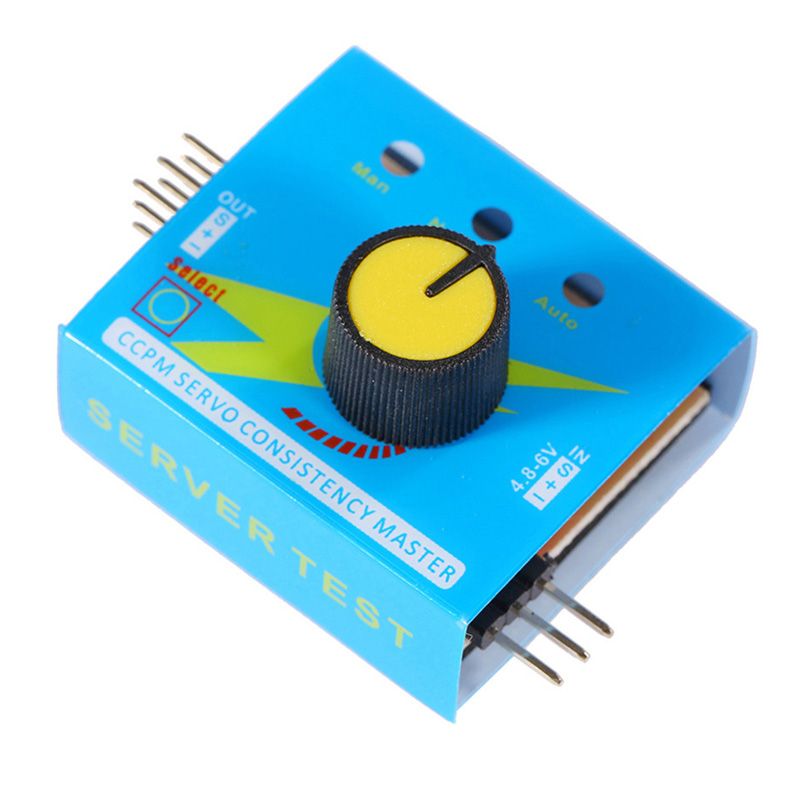

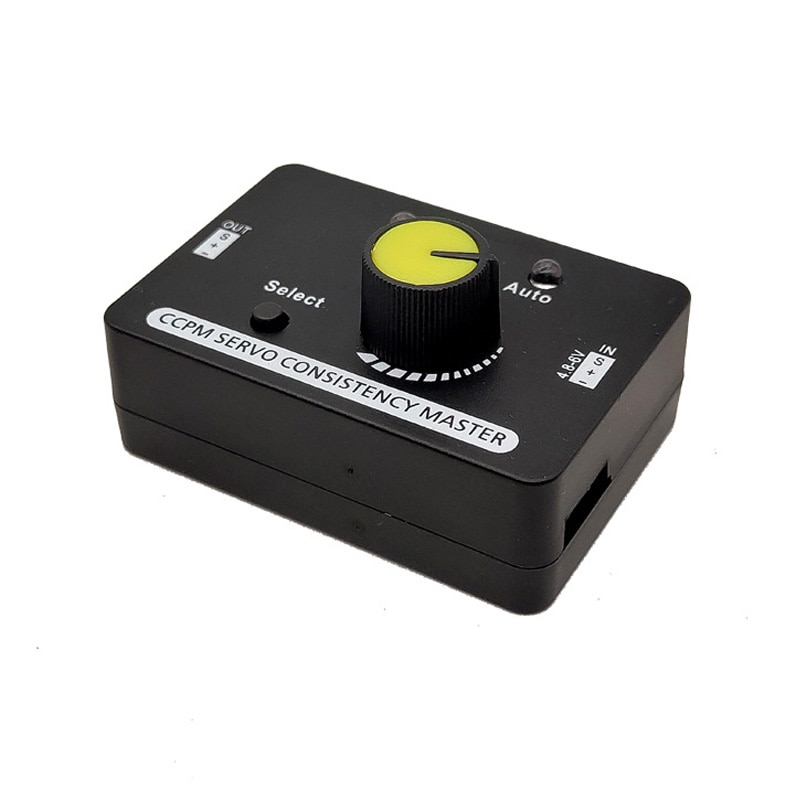

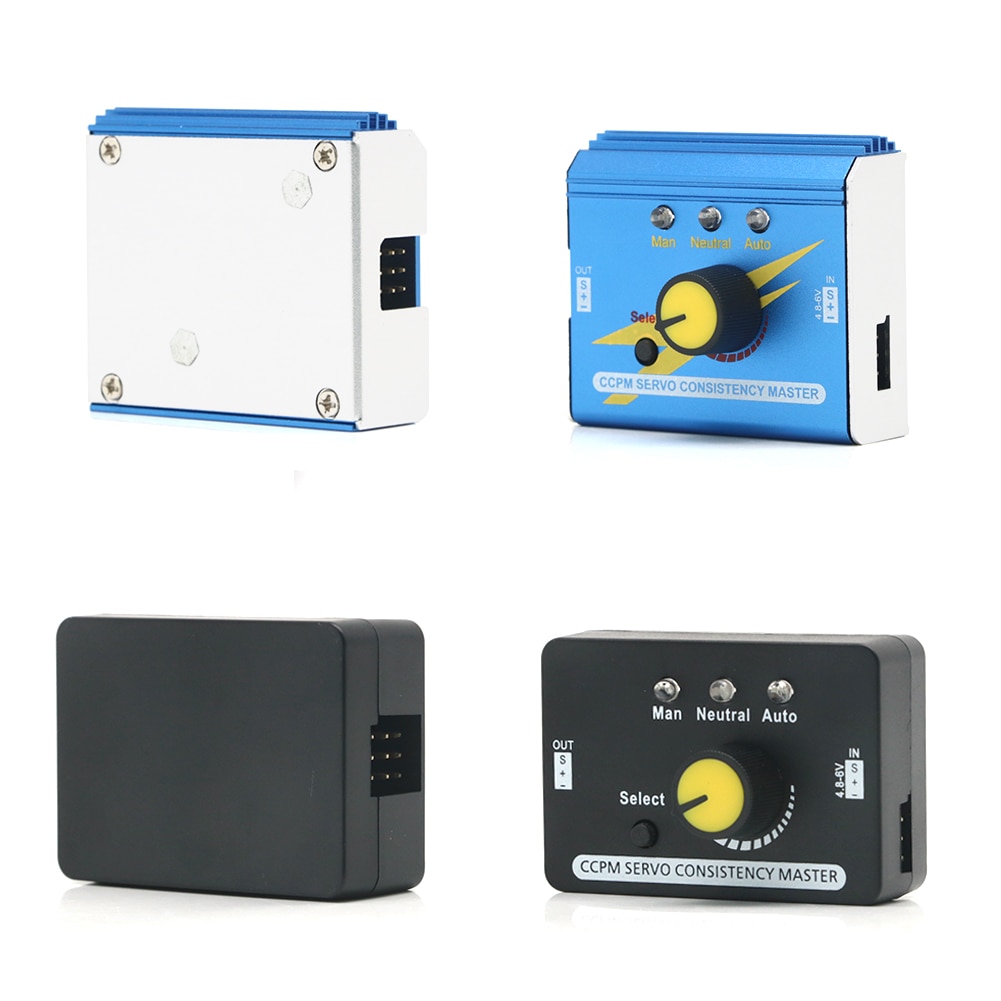

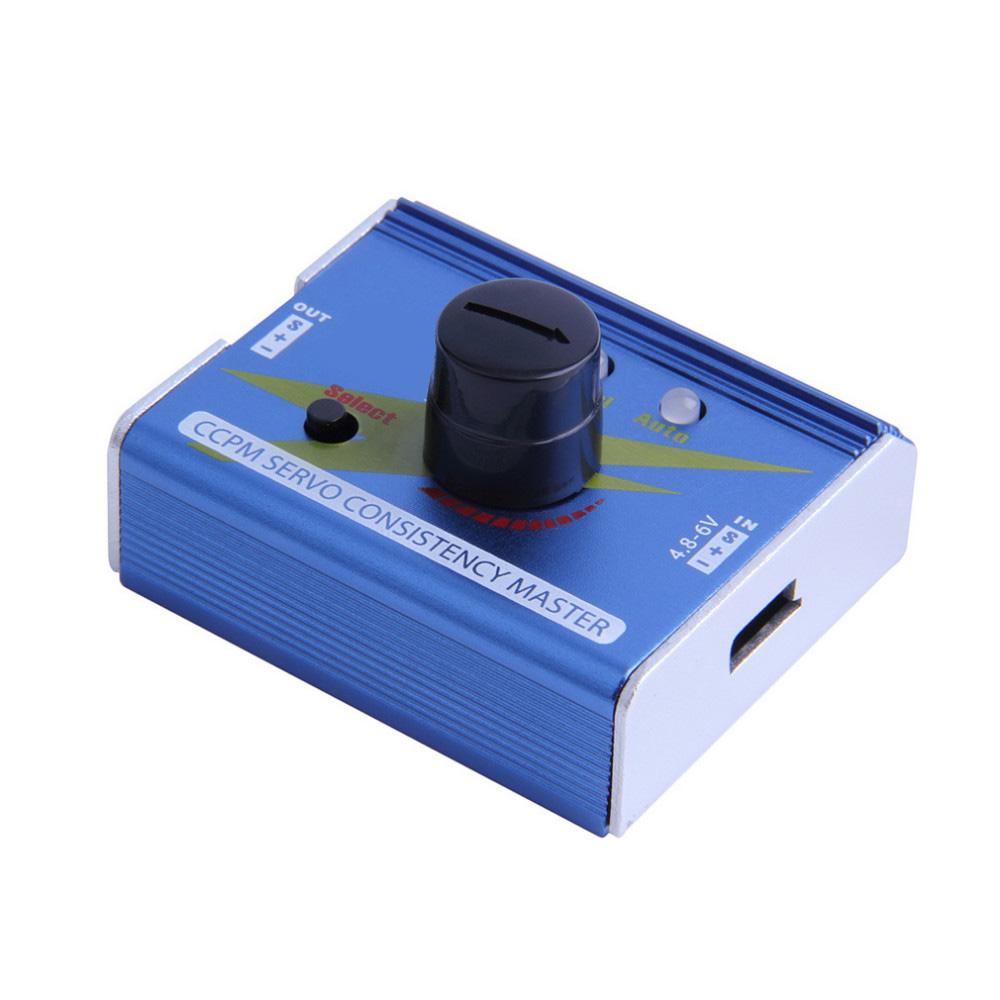

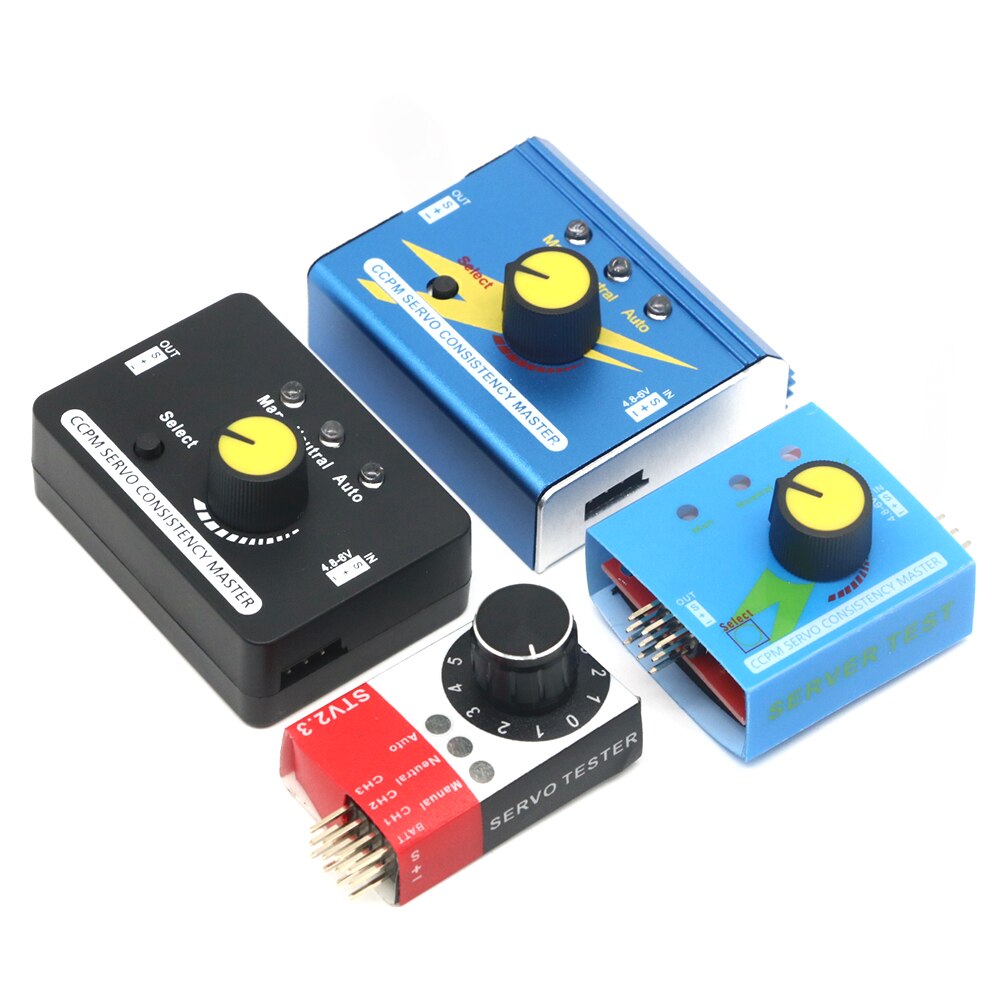

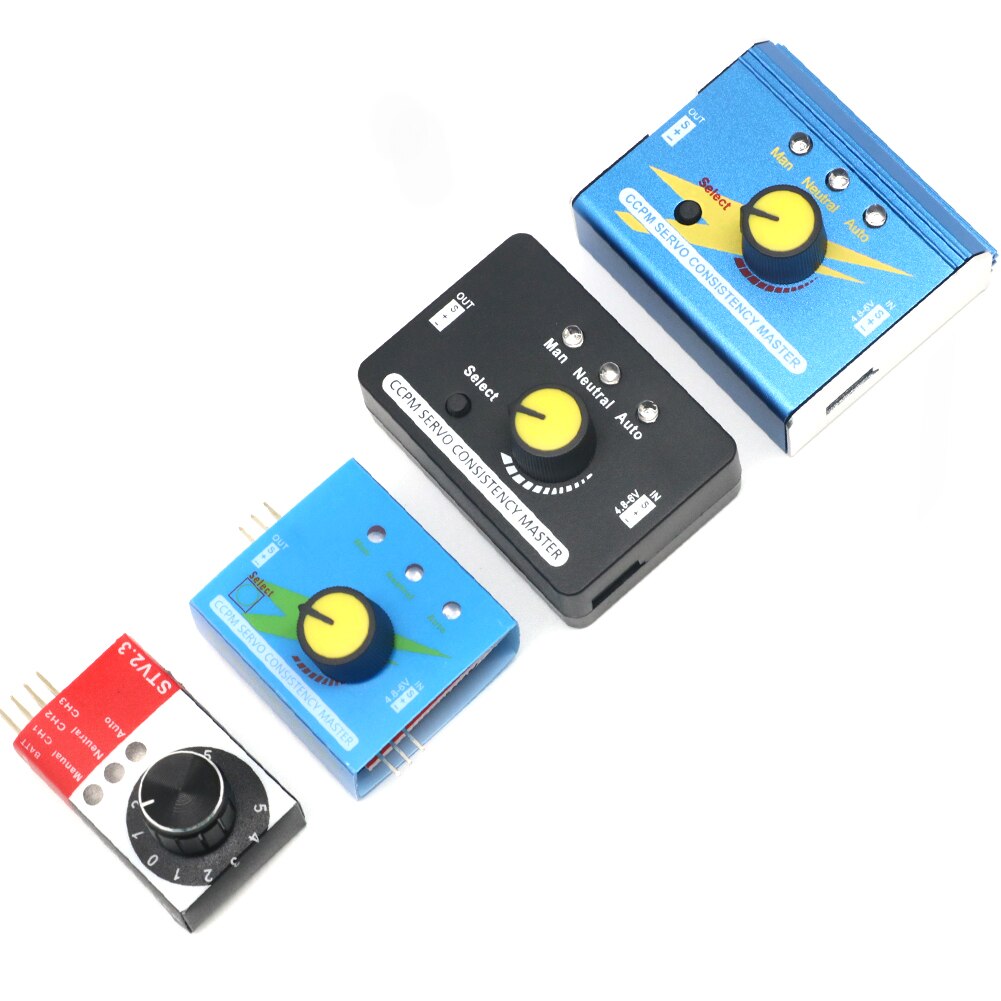

CCPM Servo Consistency Master / Servo tester
The device also can be used as a signal generator for electric speed controller (ESC), then you can test your motor system without using a transmitter and receiver.

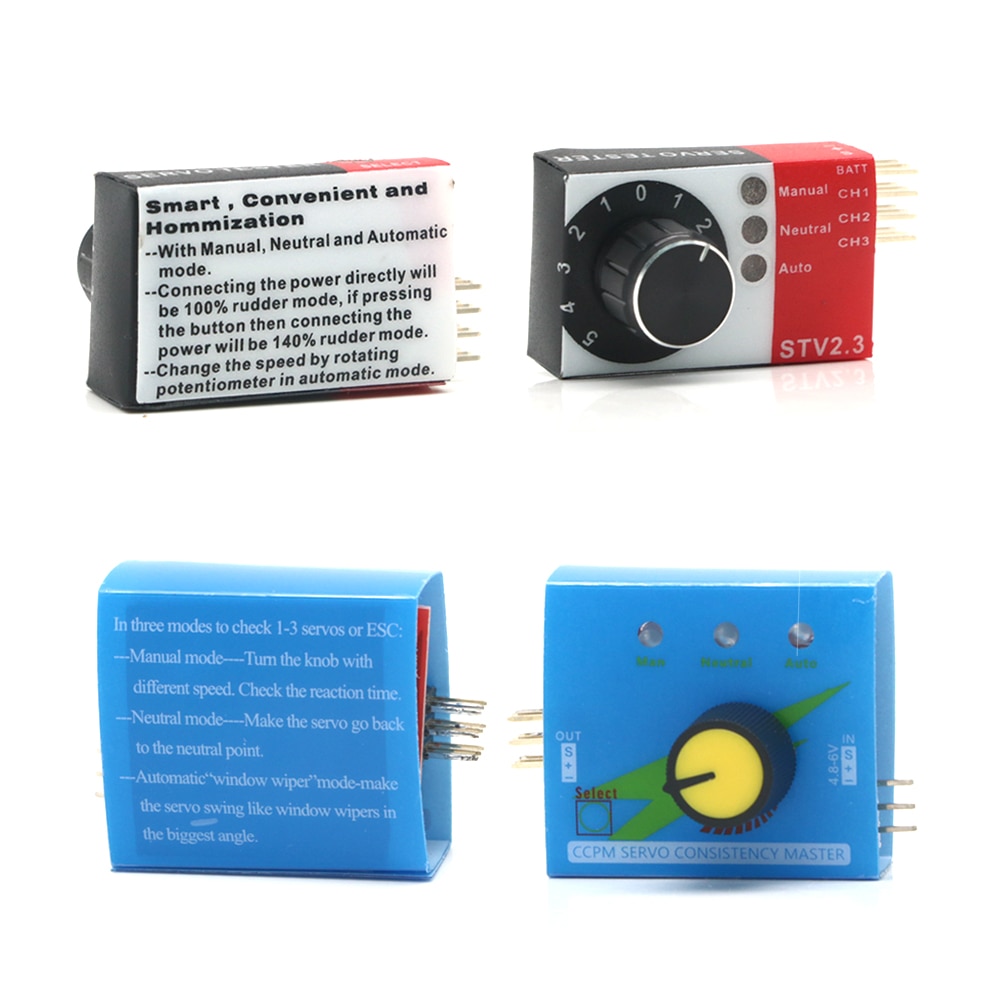

There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the reaction time.
Neutral mode: make the servo go back to the neutral point.
Automatic "window wiper" mode: make the servo swing like a window wipers in the biggest angle.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.

Voltage consumption: DC4.8-6V
Size: 48 x 42 x 17mm
Weight: 31.5 g

Output: 15mA (5.0)
Input: DC 4.5 ~ 6V
Neutral point output signal: 1.5ms 0.5ms
Size: 42.5 x 24.0 x 23.5mm
Weight: 8g

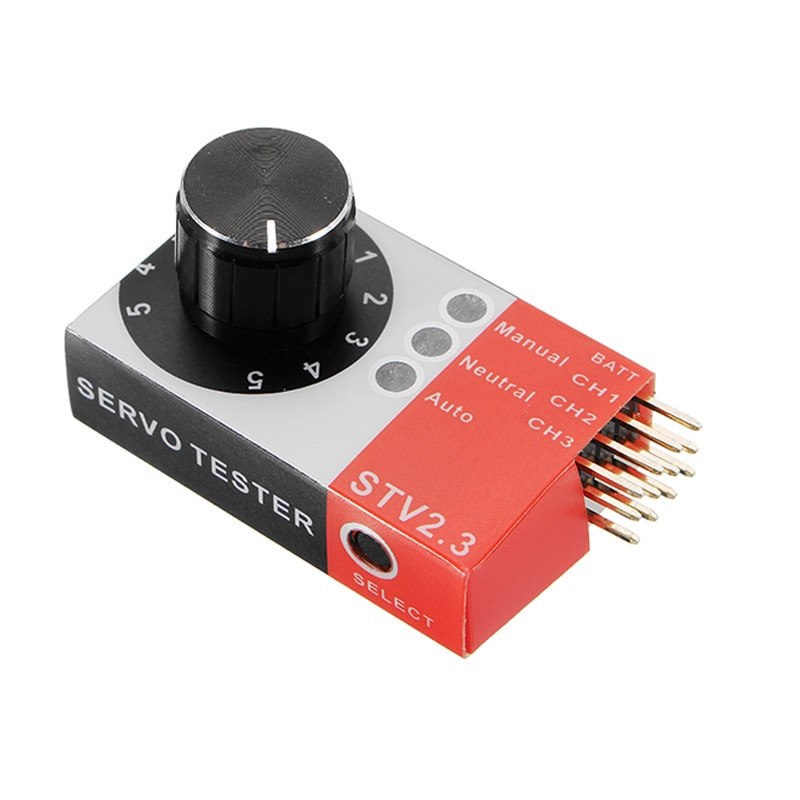

Pulse width adjustment mode: automatic / manual adjustment / automatic neutral point signal output

Specifications:
built-in BEC or UBEC
3 Pulse width adjustment mode
15mA Output
DC 4.5 ~ 6V Input
1.5ms0.5ms Neutral point output signal
easily detect the clearance, jitter and median of all kinds of Servo

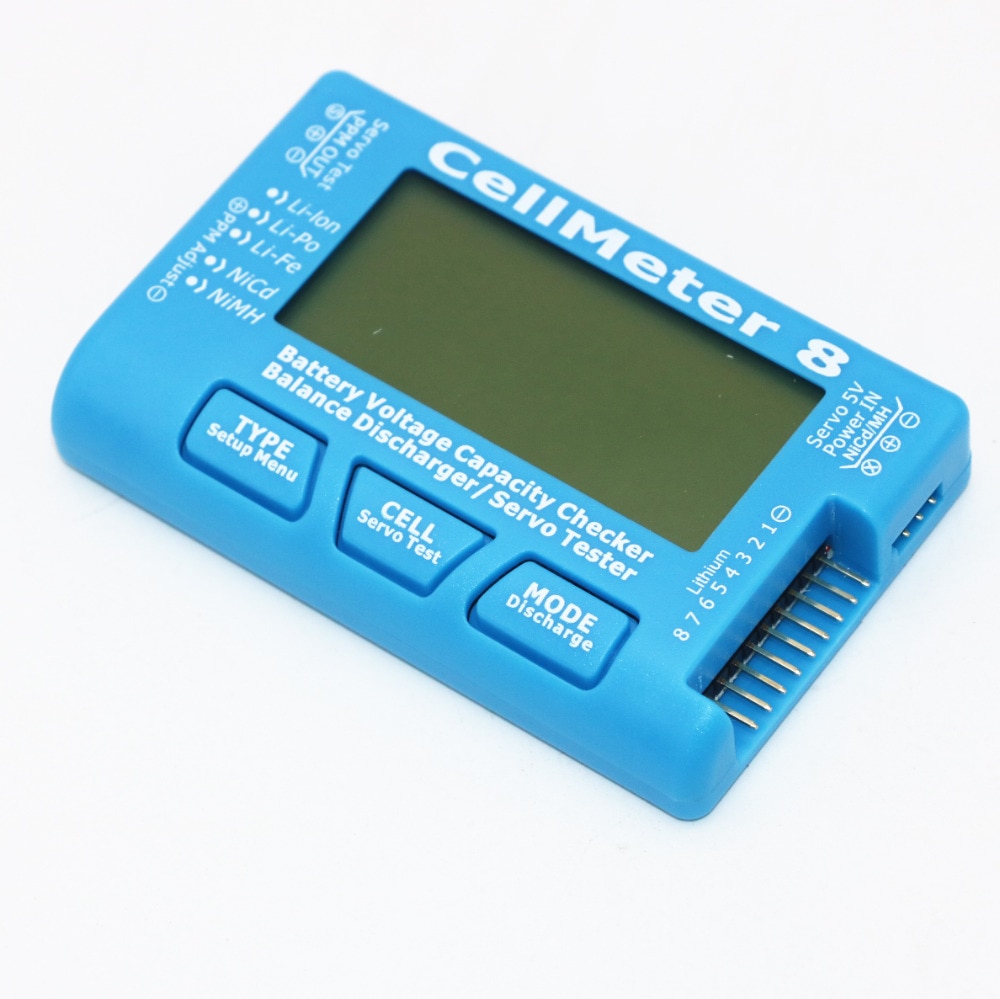

This RC CellMeter-8 digital battery capacity checker is able to be used for LiPo LiFe Li-ion NiMH Nicd batteries.

Features:
Support Battery Type:LiPo, LiFe, Li-ion, NiCd, NiMH
Servo Test Mode:Manual adjustment, Auto Matic, Neutral
Servo Test Frequency: 50Hz, 60Hz, 100Hz, 125Hz, 200Hz, 250Hz, 300Hz
Display Mode: Battery cell voltages, Total Voltages, Lowest cell voltage, Highest cell voltage, Voltage gap between highest cell voltage and Lowest cell voltage, Remaining battery capacity(%).

Specifications:


Item size: 8.5 * 5 * 1.6cm
Item Weight: 40g
Package size: 10.5 * 10 * 2cm
Package Weight: 55g

Material: Plastic

Color: Black

Size:7.5 cm x 3.8 cm x 2.5 cm

Weight: 0.88 ounce (30 g)

Input voltage: DC 5~6V

Output signal width: 800~2200us

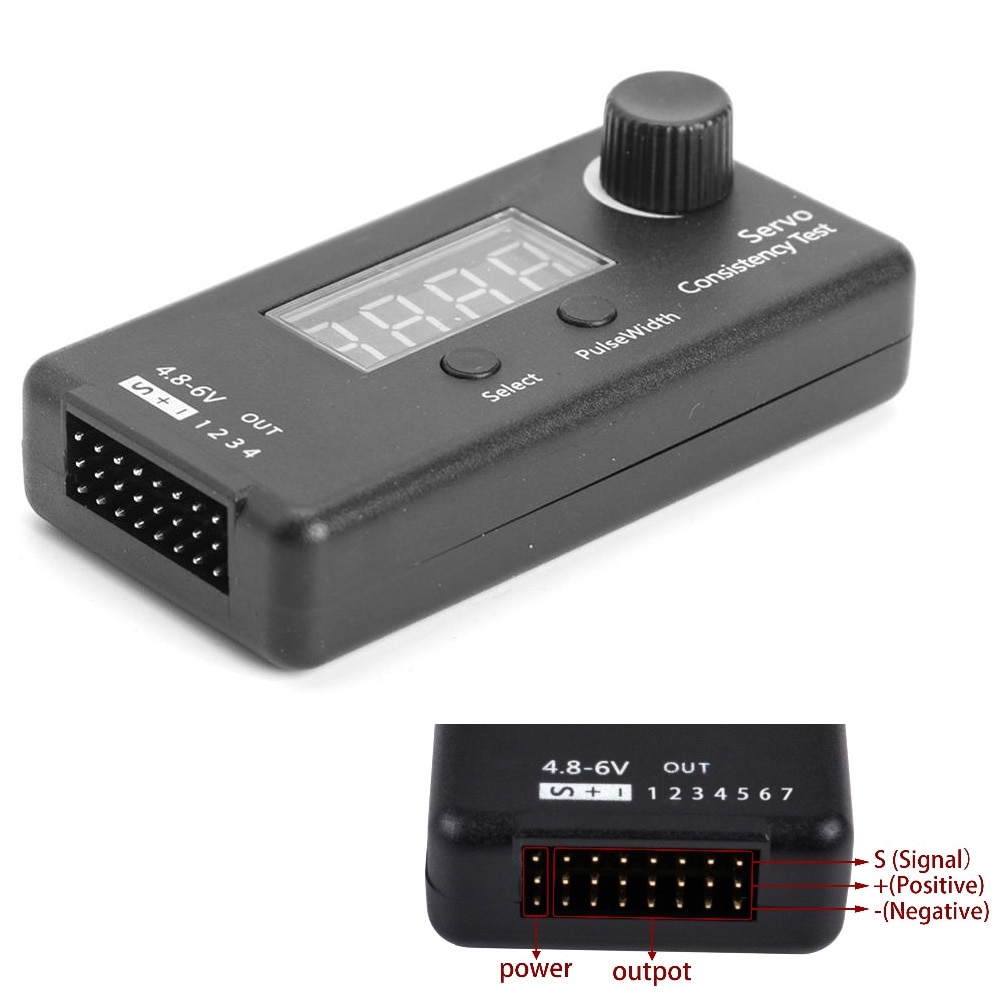

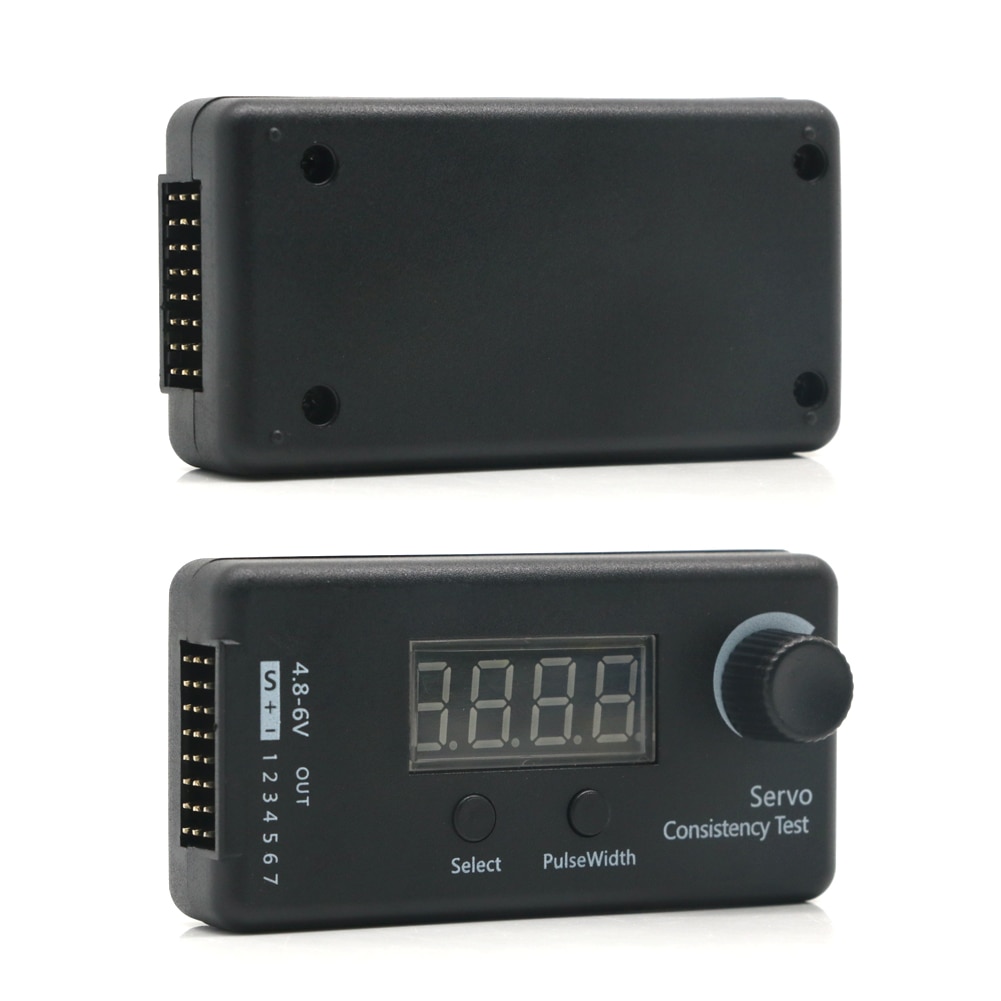

Can be synchronized output control 4 servos and used to compare the performance steering gear control of the steering servo output signal can be accurate to 2us (1 milliseconds = 1000 microseconds), you can test the steering gear is able to respond to subtle changes

With PPM signal test function in the display, the input PPM signal changes while the input the PPM signal synchronization output to the servo

Energized automatically enter manual mode (Manual) 20us

50H analog servo signal cycle, frequency 50Hz, rotary potentiometers to decrease or increase the width of the output pulse

Button the Select (Note: the key switch function, circulation patterns)

1. S-1 manual mode (Manual)

2. S-2-bit mode (Neutral)

3. S-3 automatic mode (Automatic)

Keys pulse width - 1. 50H analog servo signal cycle 20us frequency 50Hz

2. 125H digital the steering gear a signal cycle 8us frequency 125Hz

3. 250H Digital Servo signal cycle 4us frequency 250Hz

There are 3 modes to check servos or ESC:
Manual mode: turn the knob with different speed, check the reaction time;
Neutral mode: make the servo go back to the neutral point;
Automatic ''window wiper'' mode: make the servo swing like a window wipers in the biggest angle.
It can connect 1-3 servos simultaneously and test such as 1-3 servos consistency and so on.
You can also connect 1-3 ESC to test and compare their reaction time respectively.
It can connect 3 servos of the CCPM helicopters and select servos.
It can also connect the servo of airplanes install the steering-box and adjust planes by using such as the neutral mode and so on.
With LED indicators.
Specifications:
Output: 15mA (5.0)
Voltage consumption: DC4.8-6V
Output signal: 1.5ms±0.5ms
Item Color: Blue
Size: 48mm*42mm*17mm
Net Weight: 30g
Package Weight: 45g

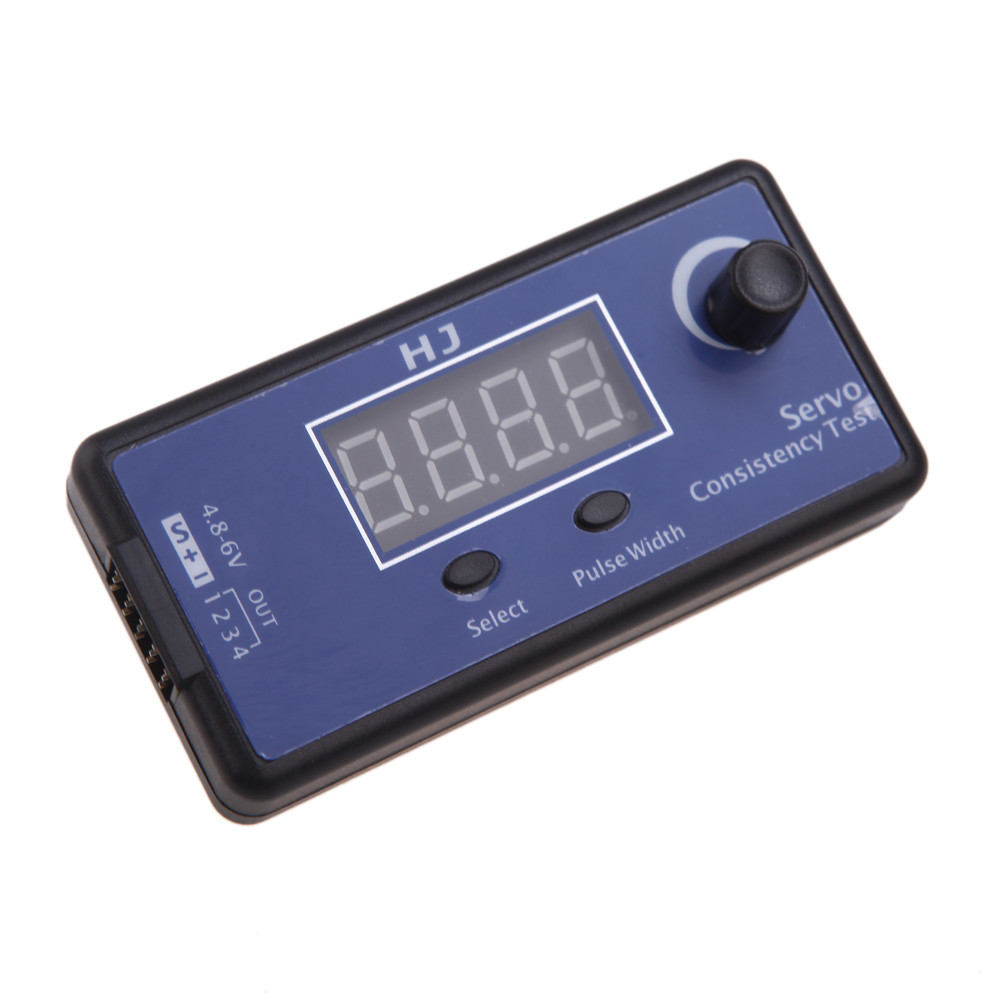

Button the Select (Note: the key switch function, circulation patterns)
    1. S-1 manual mode (Manual)
    2. S-2-bit mode (Neutral)
    3. S-3 automatic mode (Automatic)
    Keys pulse width:
    1. 50H analog servo signal cycle 20us frequency 50Hz
    2. 125H digital the steering gear a signal cycle 8us frequency 125Hz
    3. 250H Digital Servo signal cycle 4us frequency 250Hz

    Specifications:

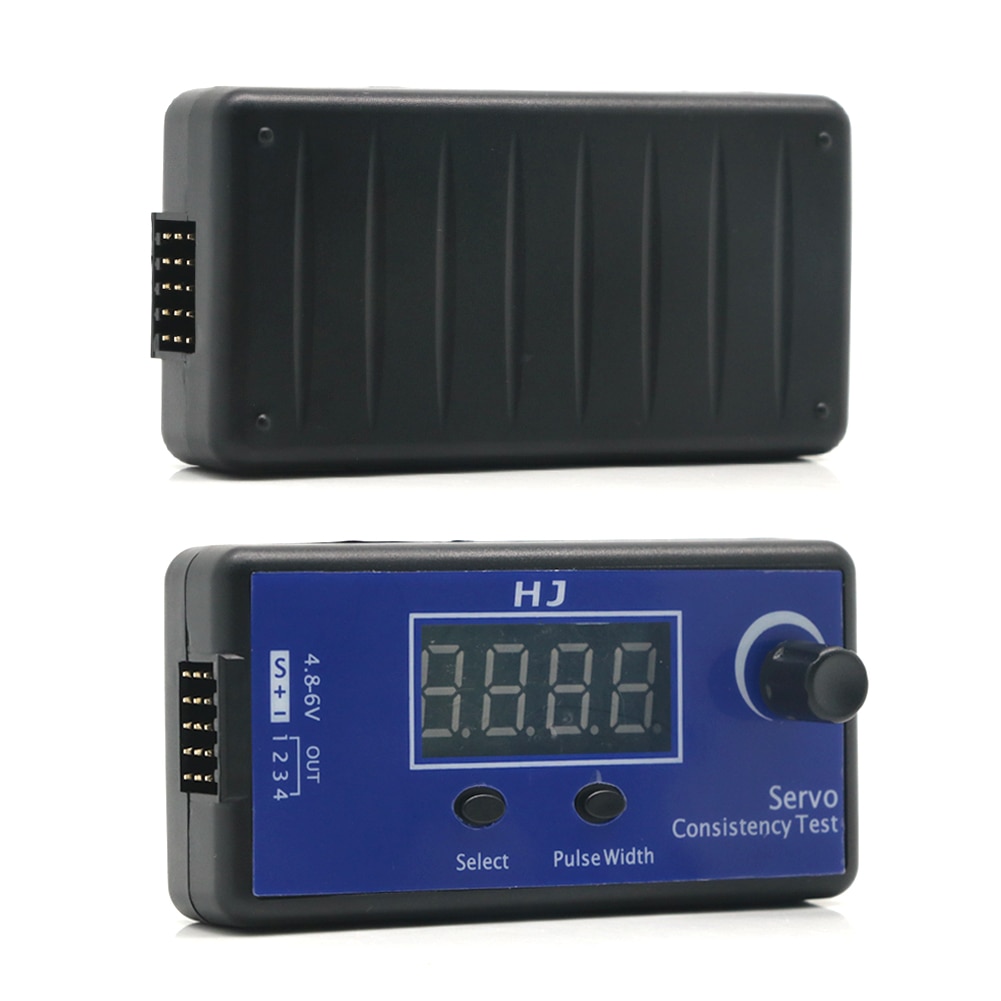

    Brand: HJ
    Material: Plastic
    Color: Blue + black
    Input voltage: DC 5~6V
    Output signal width: 800~2200us
    Package size: 14 * 10 * 3cm / 5.5 * 3.9 * 1.2in
    Package weight: 39g / 1.4oz

Input voltage: DC4.8-6v

Size: 49×34.5×16.5mm

Weight: 15g

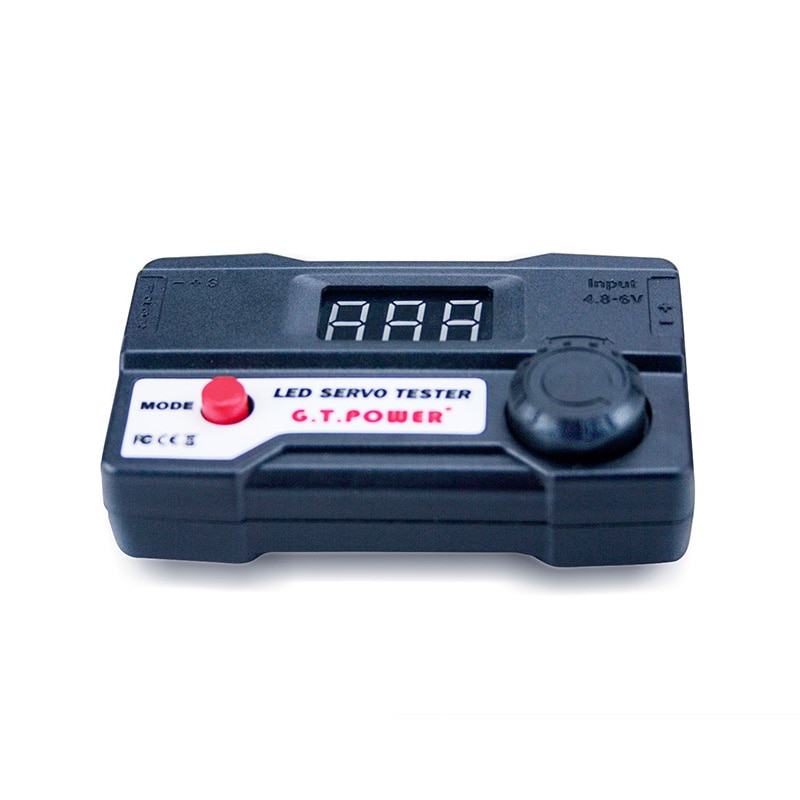

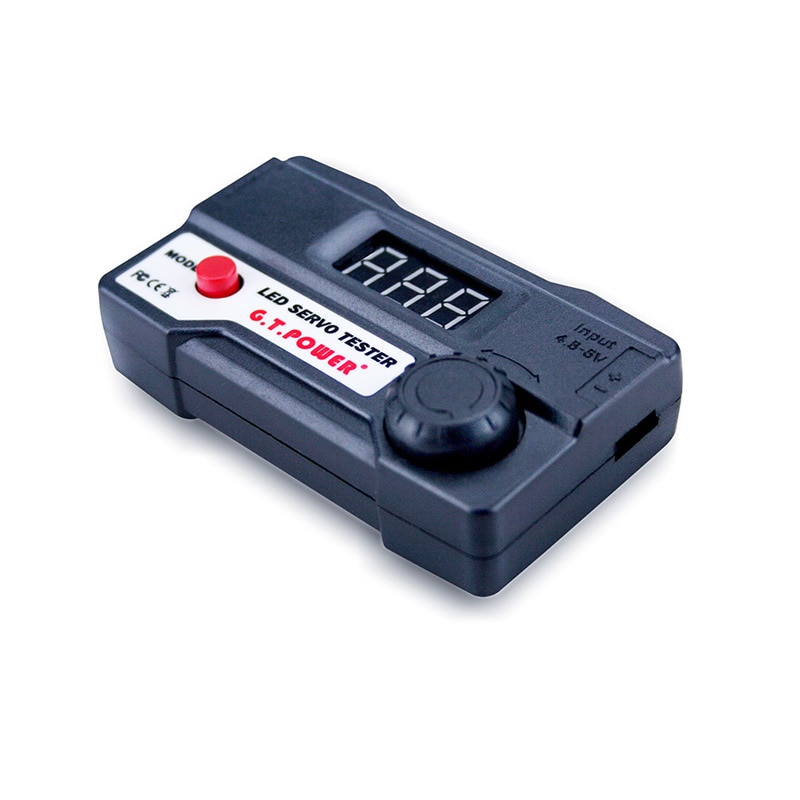

• It’s with small size and easy to carry.

• Four groups of servo connector and it can insert four servos to test at the same time.

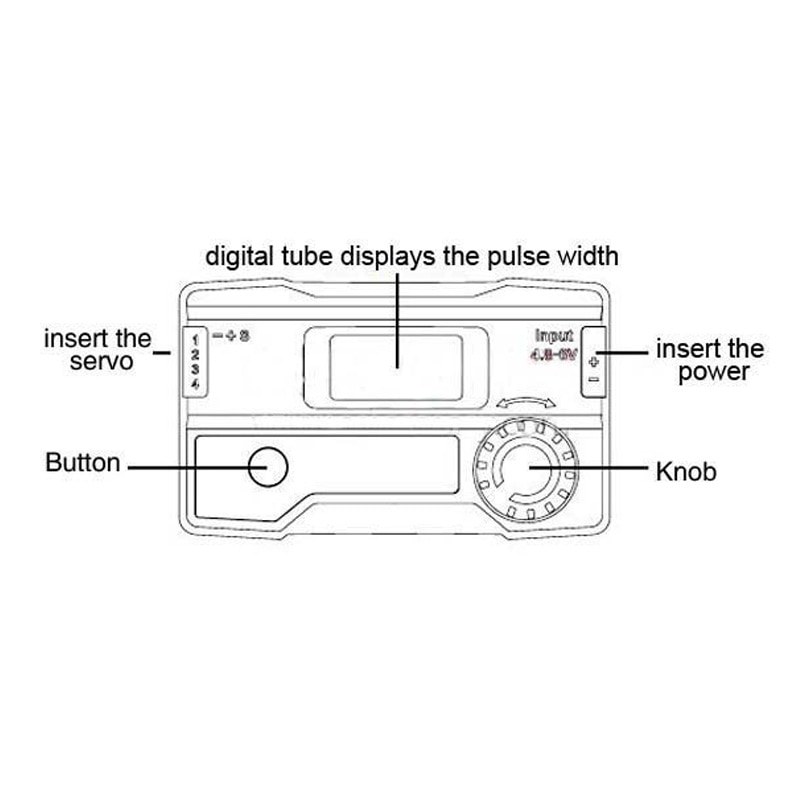

• The digital tube will real-time display the sizes of pulse width.

• Support two test modes: manual operation and self-motion.

Features:

• Input Voltage:  4.6-6V

• Size:  73.5*43.5*22.5mm

• Net Weight:  108g
