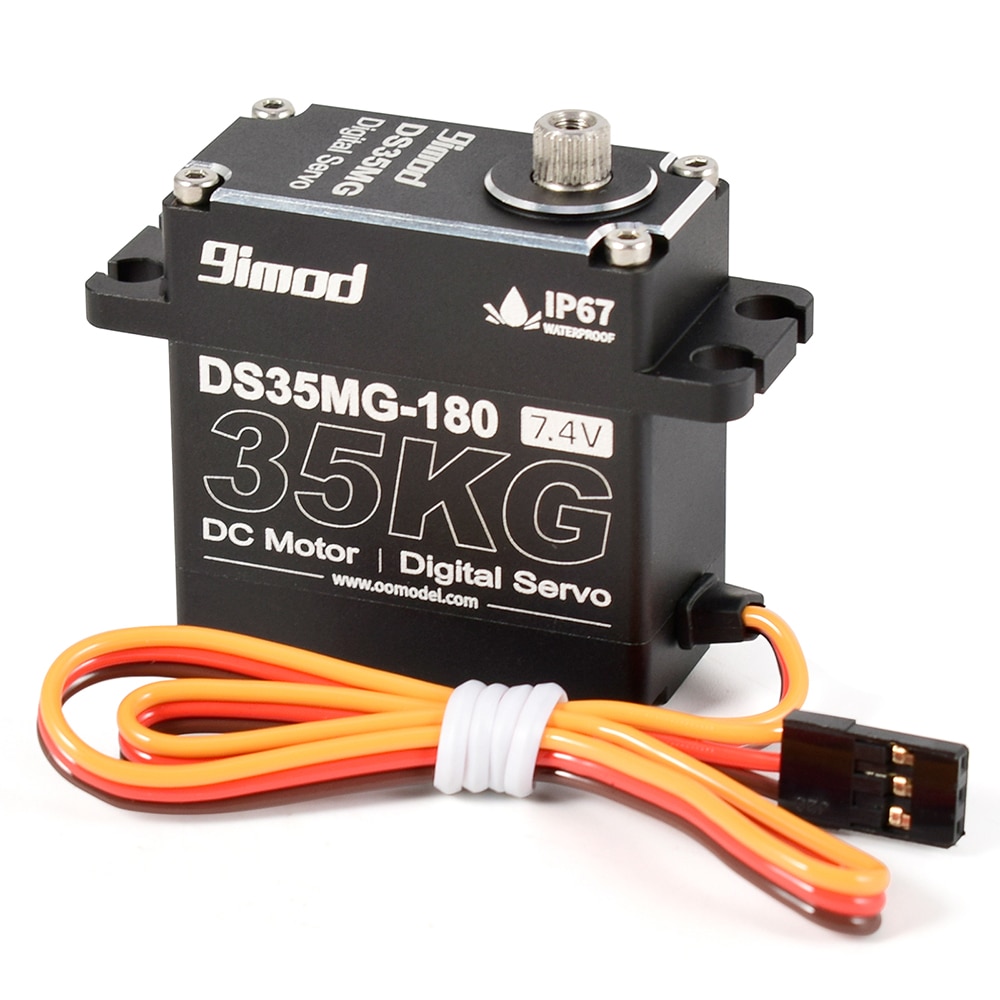

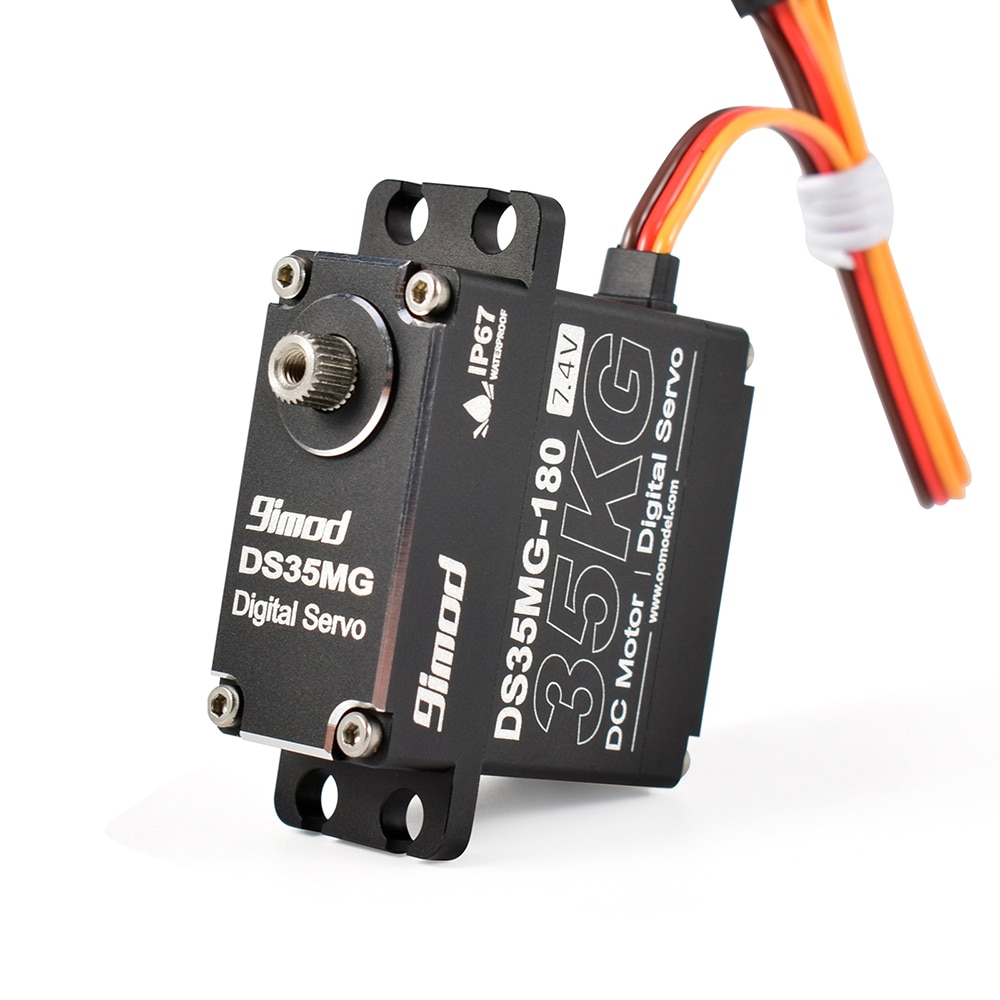

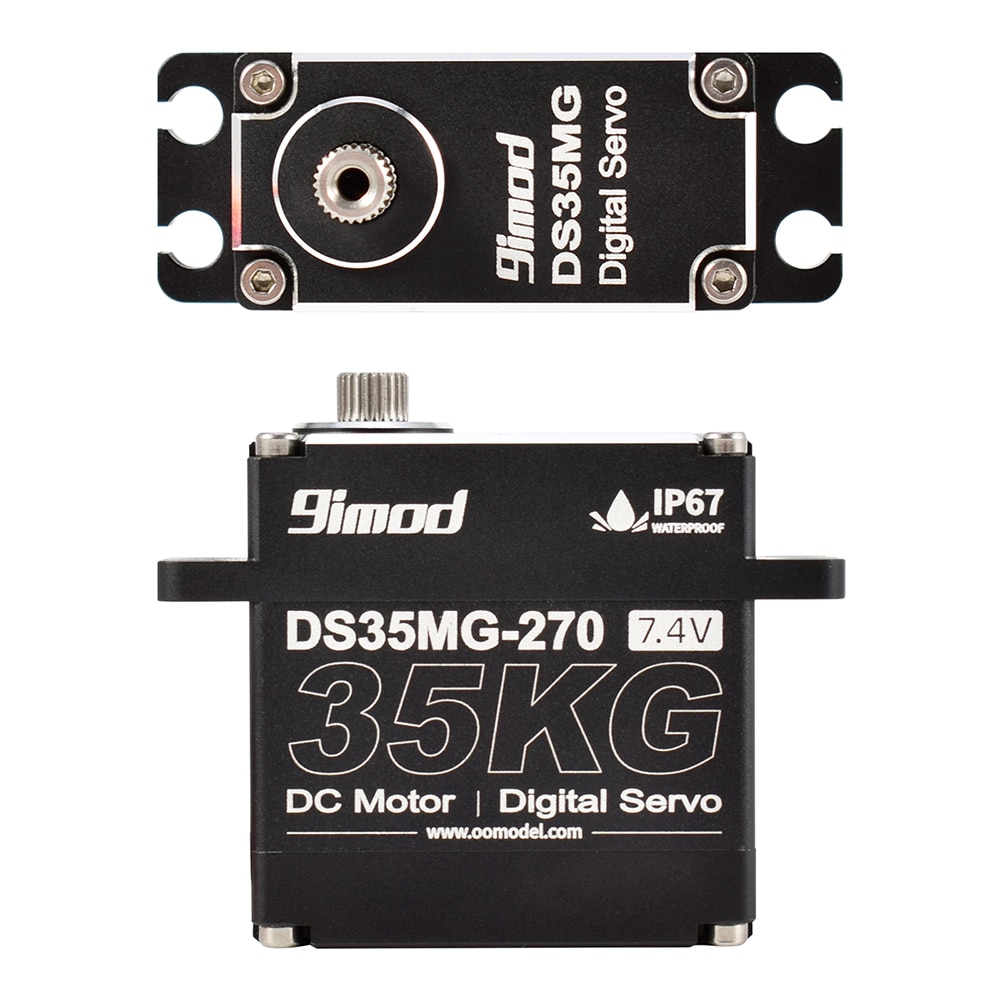

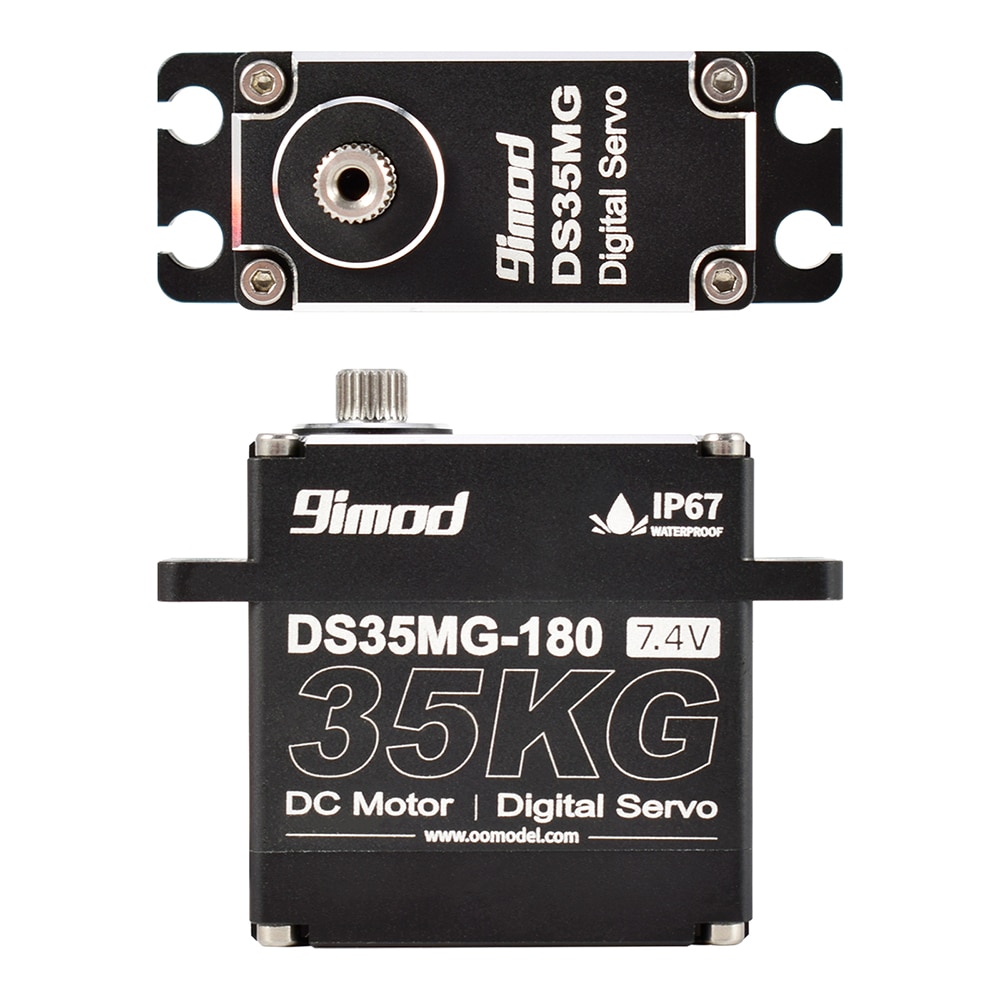

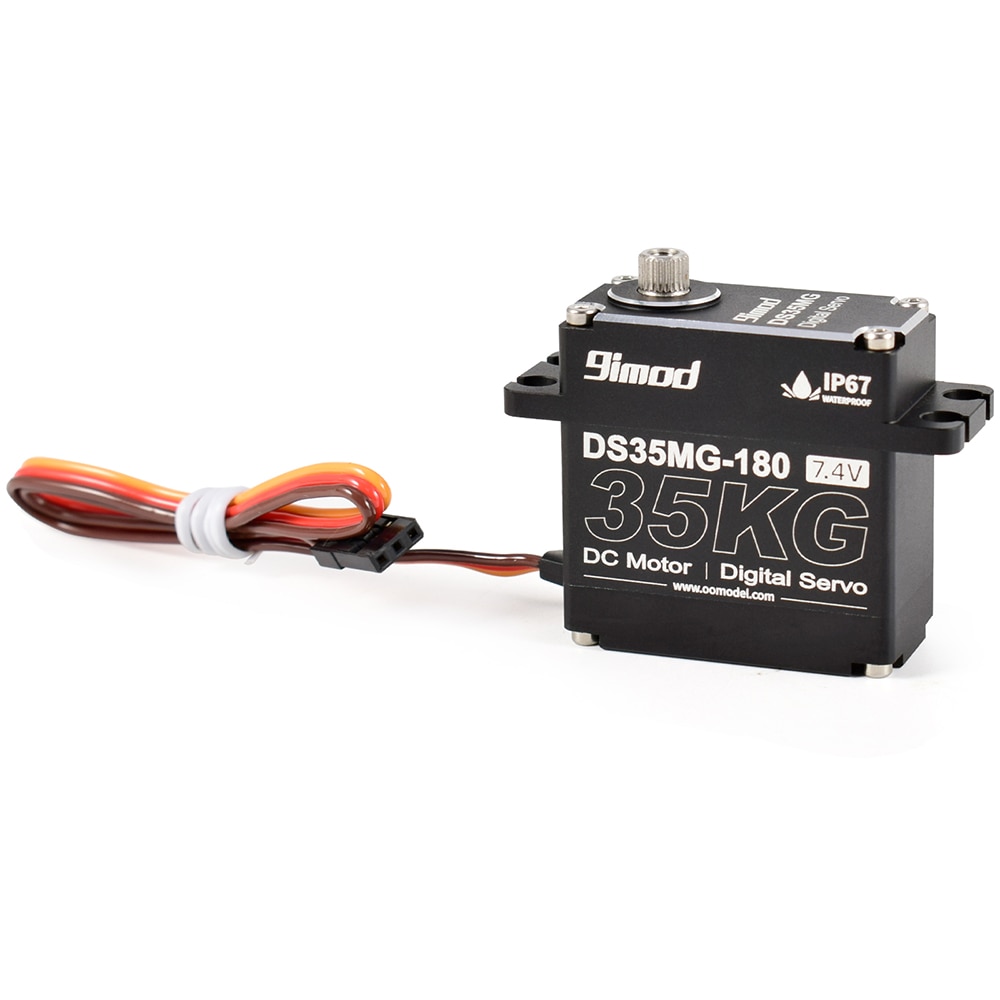

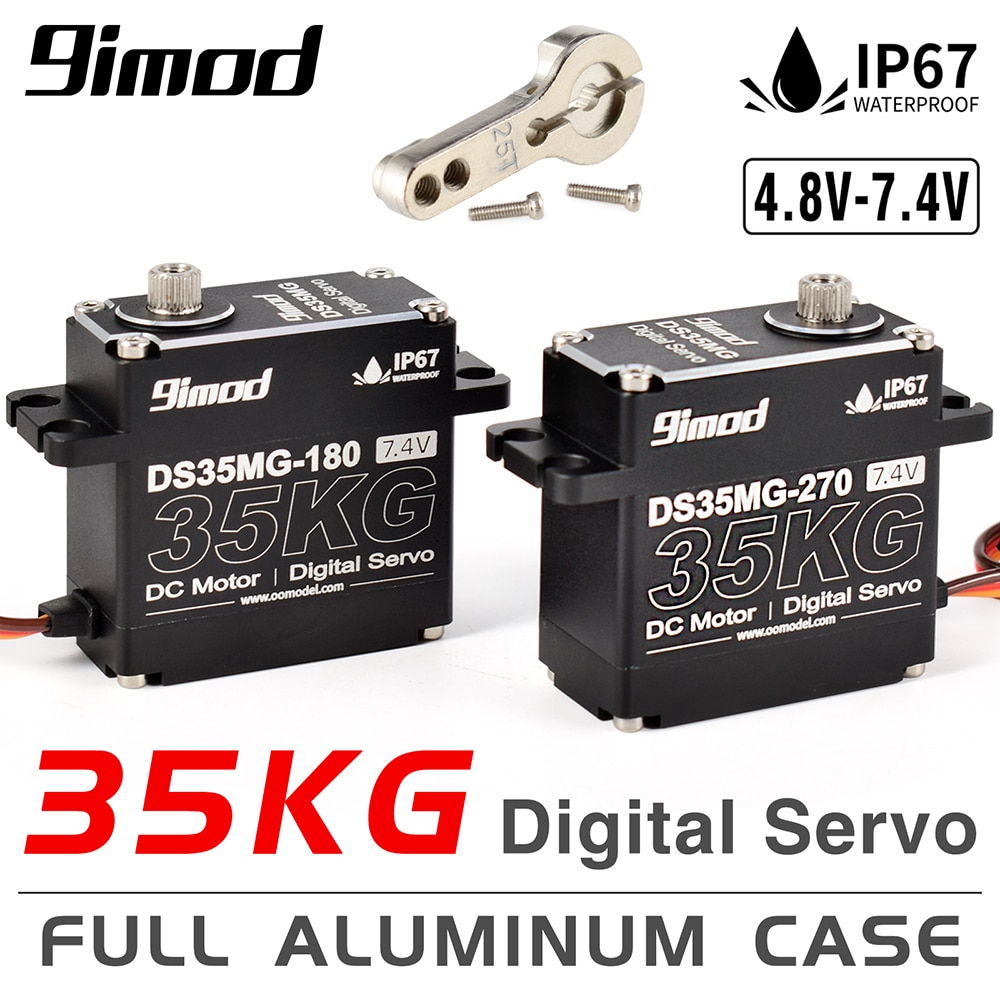

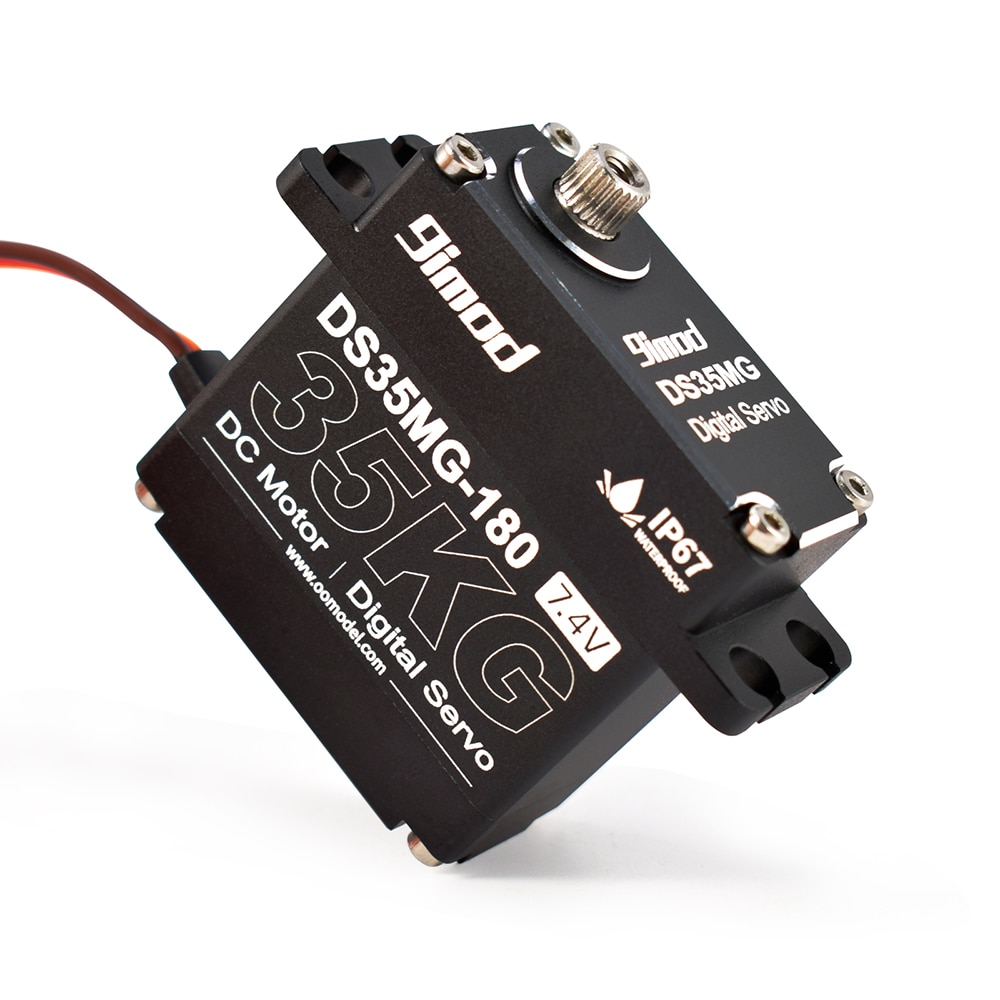

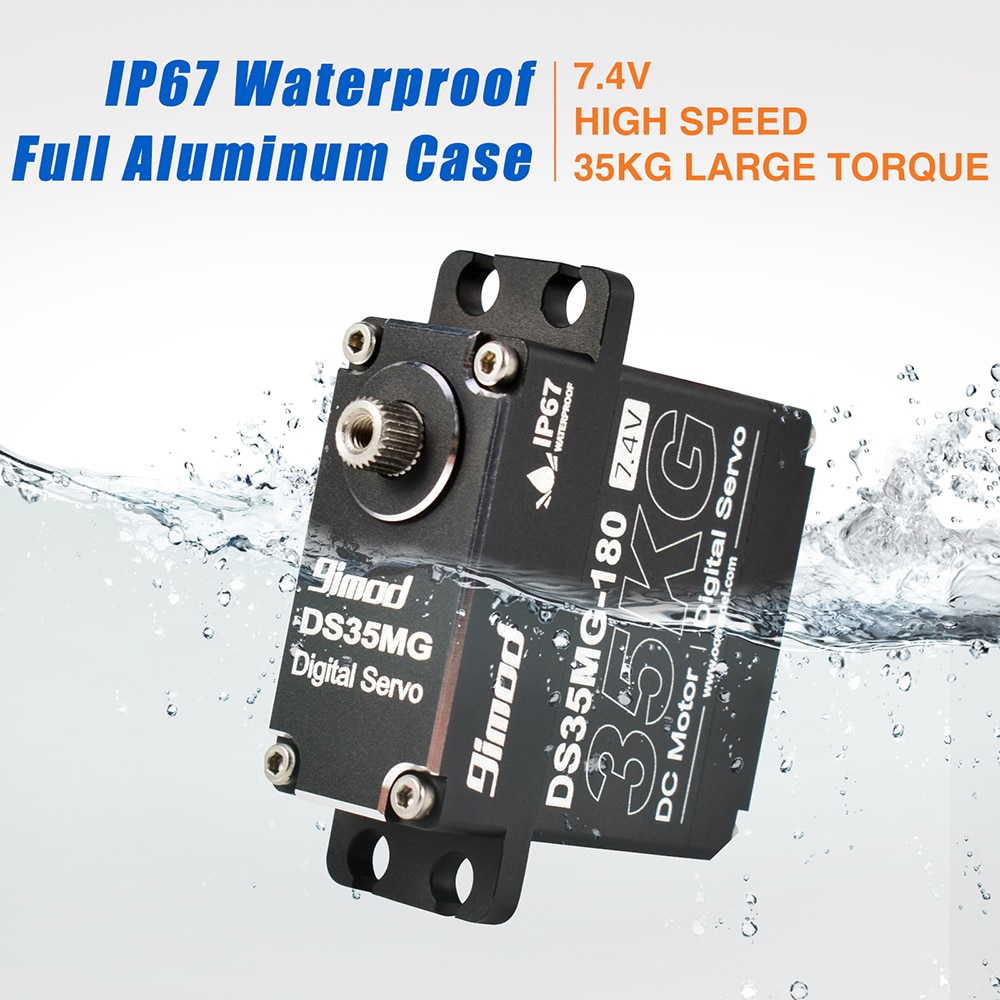

Waterproof DS35MG Servo, 35kg Torque, Full Aluminum Case and Stainless Steel Gear for 1/6 to 1/12 RC Cars.
4.8 (321 votes)
Price:
US $76.90 - 80.33
/ piece
Discount Price:
US $
42.38 -
44.24
/ piece
-45%
- Color
-
-
- Ships From

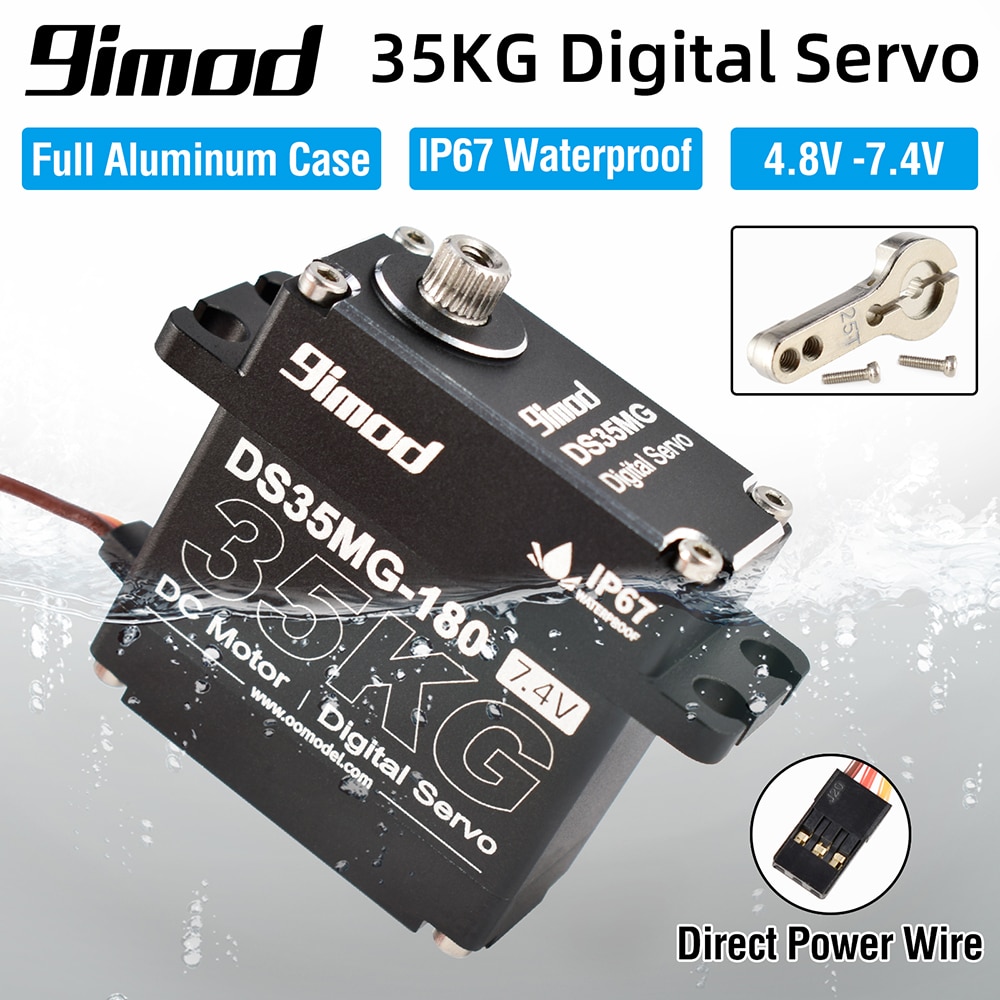

Features:
1.4.8V -7.4V High voltage,High performance digital High Voltage .

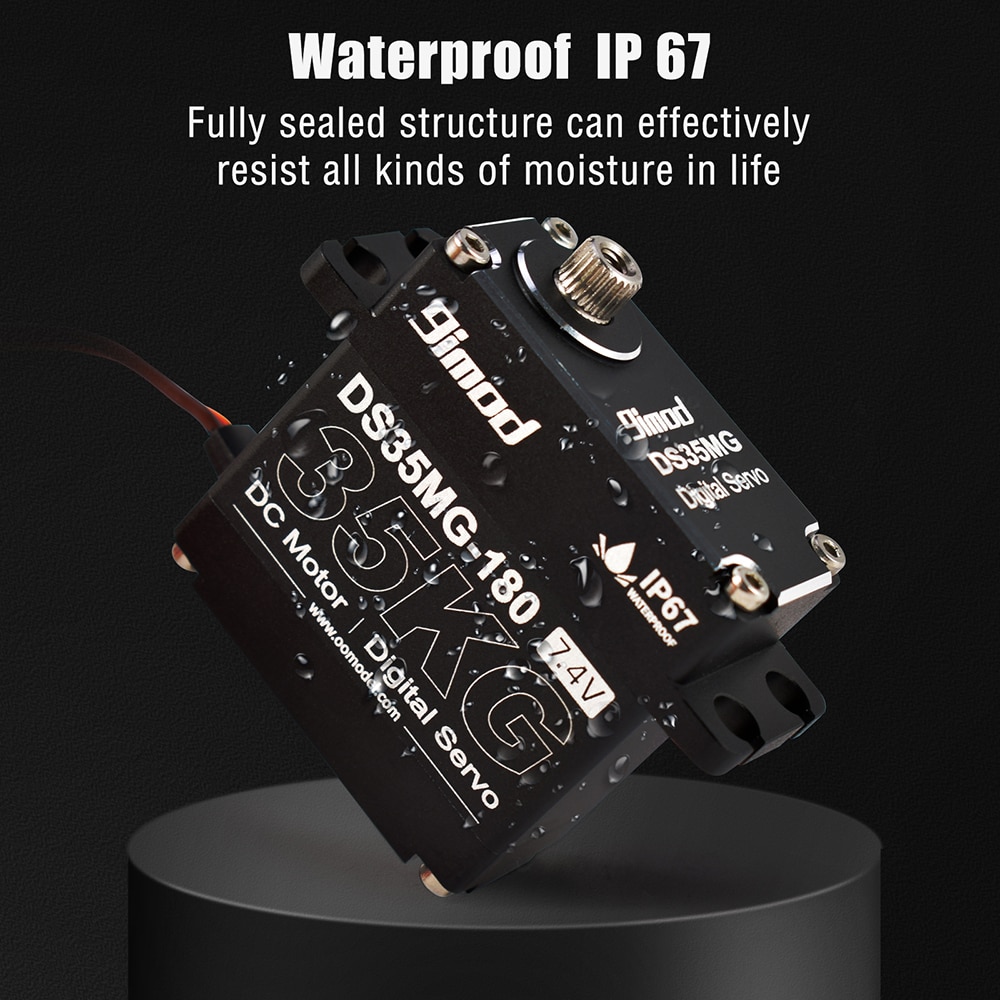

2.Waterproof performance:
1.4.8V -7.4V High voltage,High performance digital High Voltage .
2.Waterproof performance: IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 /270 degrees, Excellent linearity, precision control.

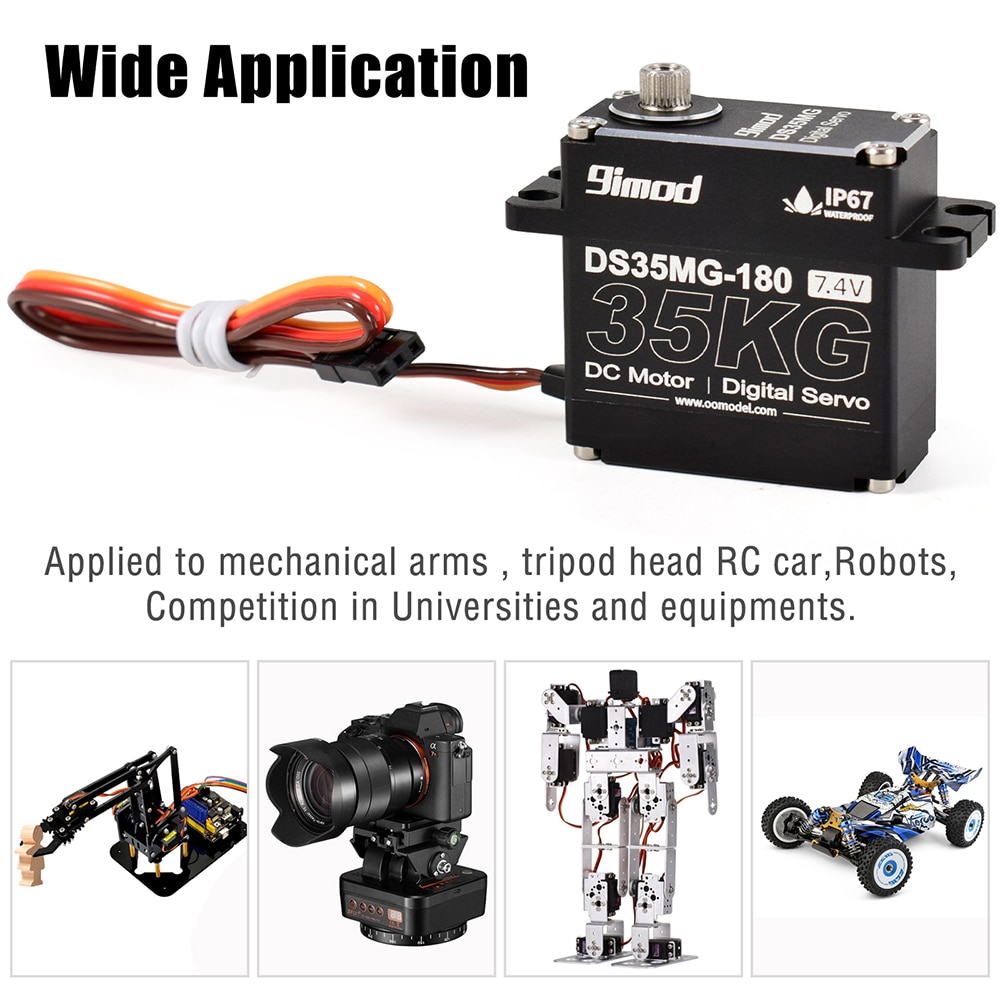

3.Widely Use Digital High Torque Servo：This 35kg Waterproof Servo's maximum torque is up to 35 kg/cm@7.4V ,Compatible with 1/6,1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.
4.Metal Gear Servo:Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.

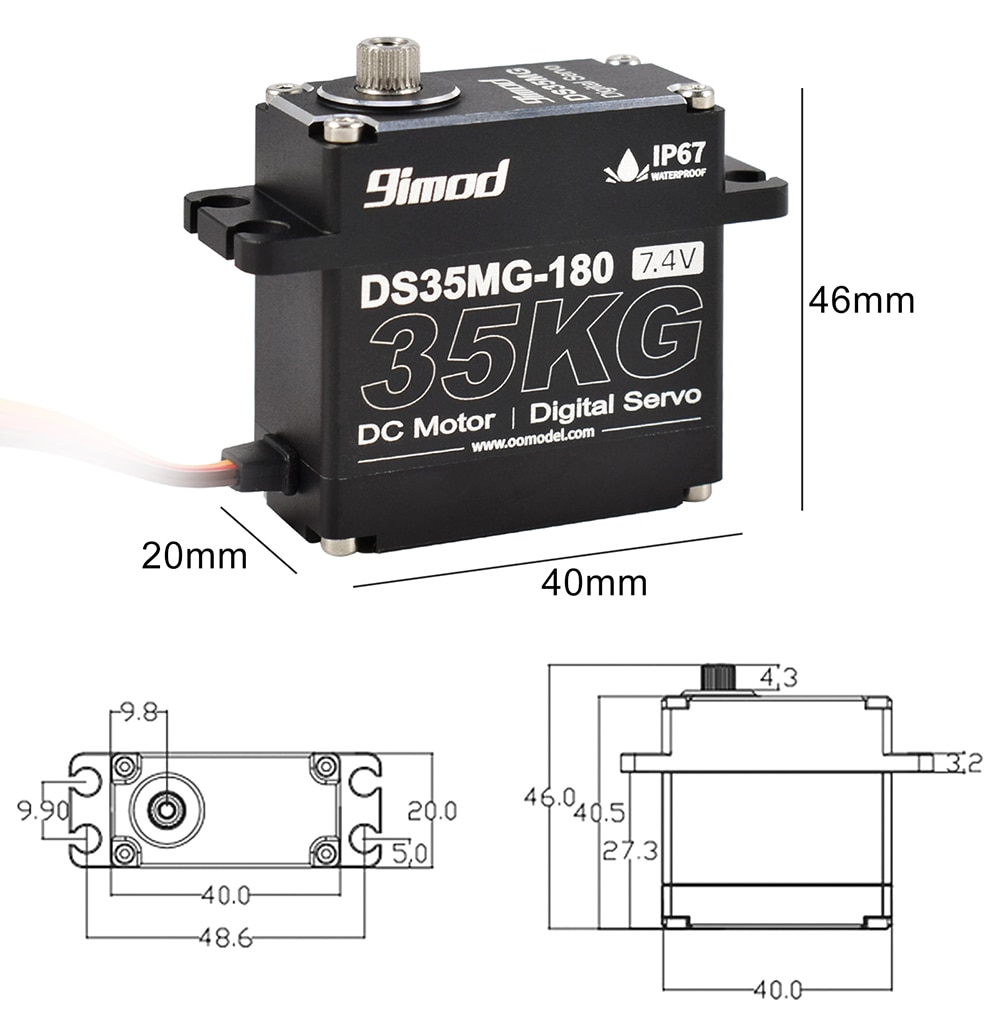

5.High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (80g)
Description:
The 9imod DS35MG 35KG Large torque Digital Waterproof servo,adopt DC motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,4.8V -7.4V High Operation Voltage Range,
It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!
Specifications:
Brand:9imod
Model:DS35MG
Color:Black

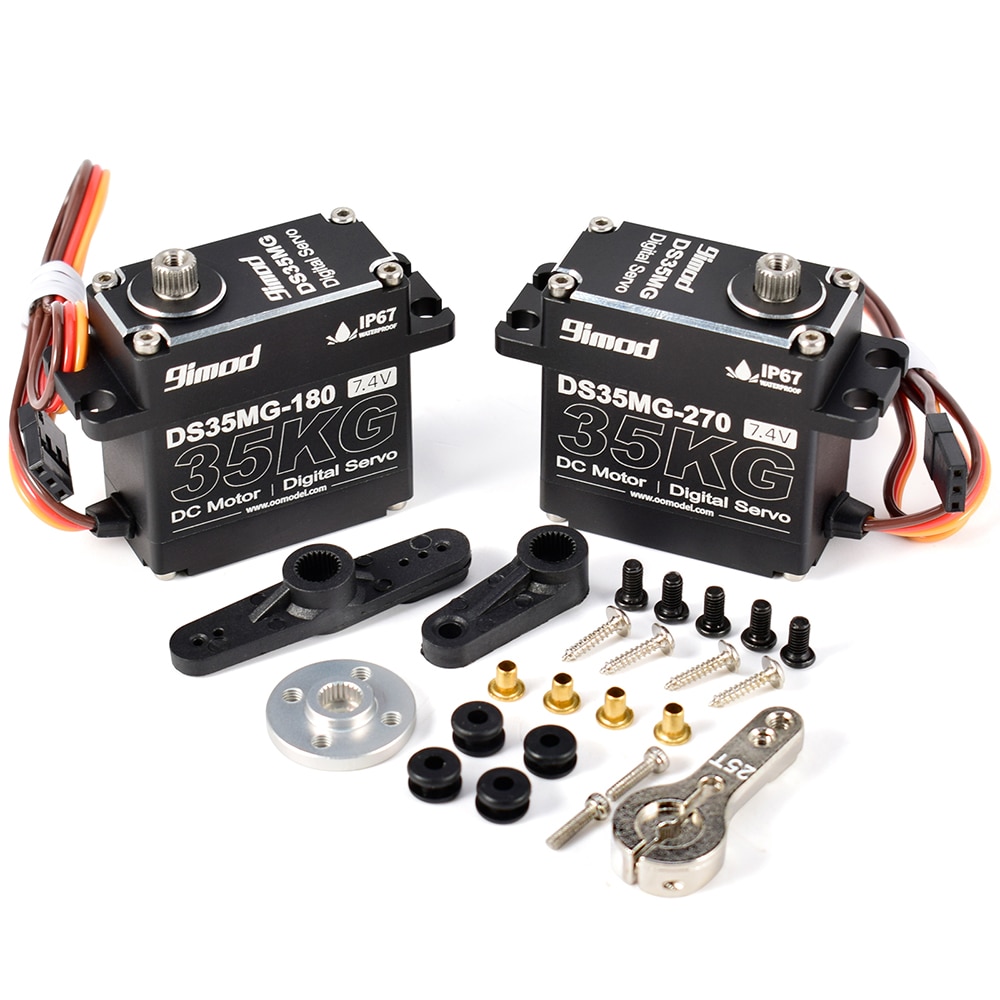

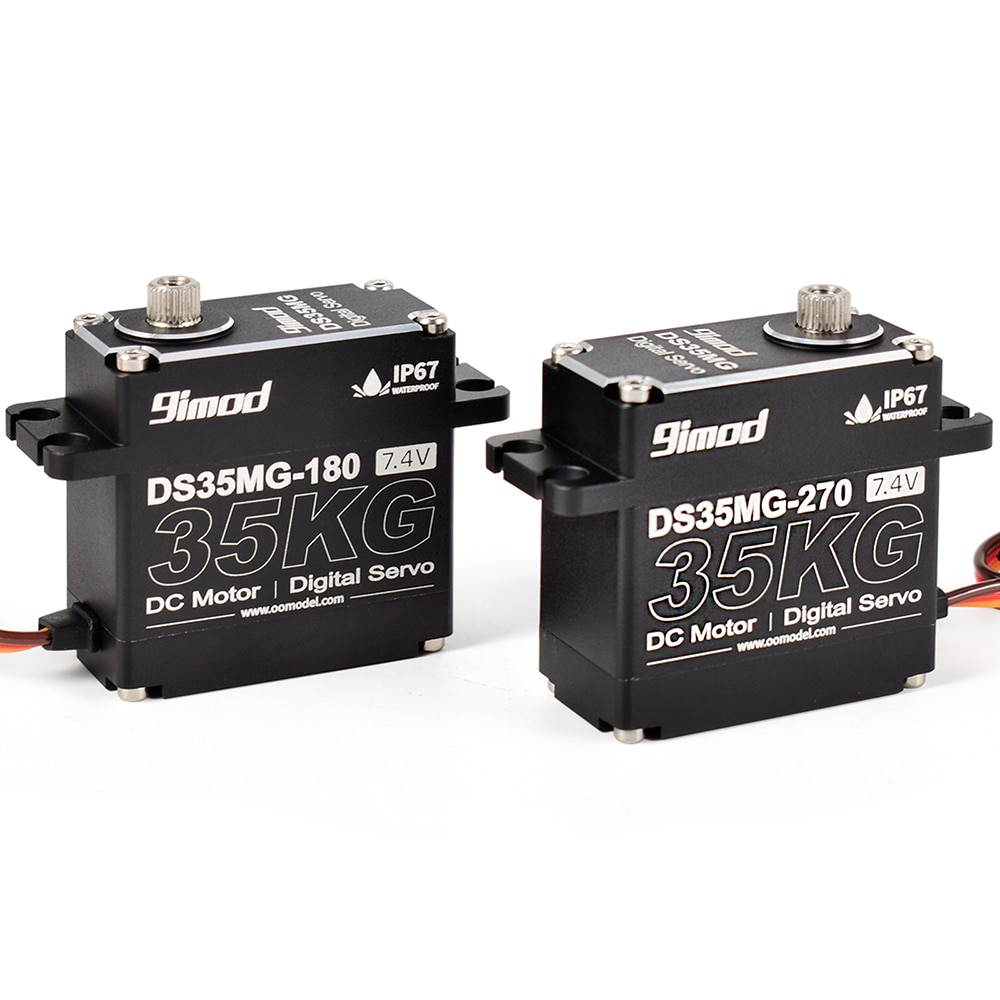

Control Angle:180°/ 270°optional
Gear Material:Metal Gear
Case Material:Full Aluminum Case
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:4.8V -7.4V
Storage Temperature Range: -30℃～80℃
Operation Temperature Range:-20C°~ +60C°
Circle:＞80000 times without load
Operation Travel:60°±1
Limit angle :180°± 1/270°± 1 optional
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type:Mos Drive
Motor Type:DC motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Waterproof performance: IP67
Dimensions:40x20x40.50mm
Weight:80g (without servo horn)

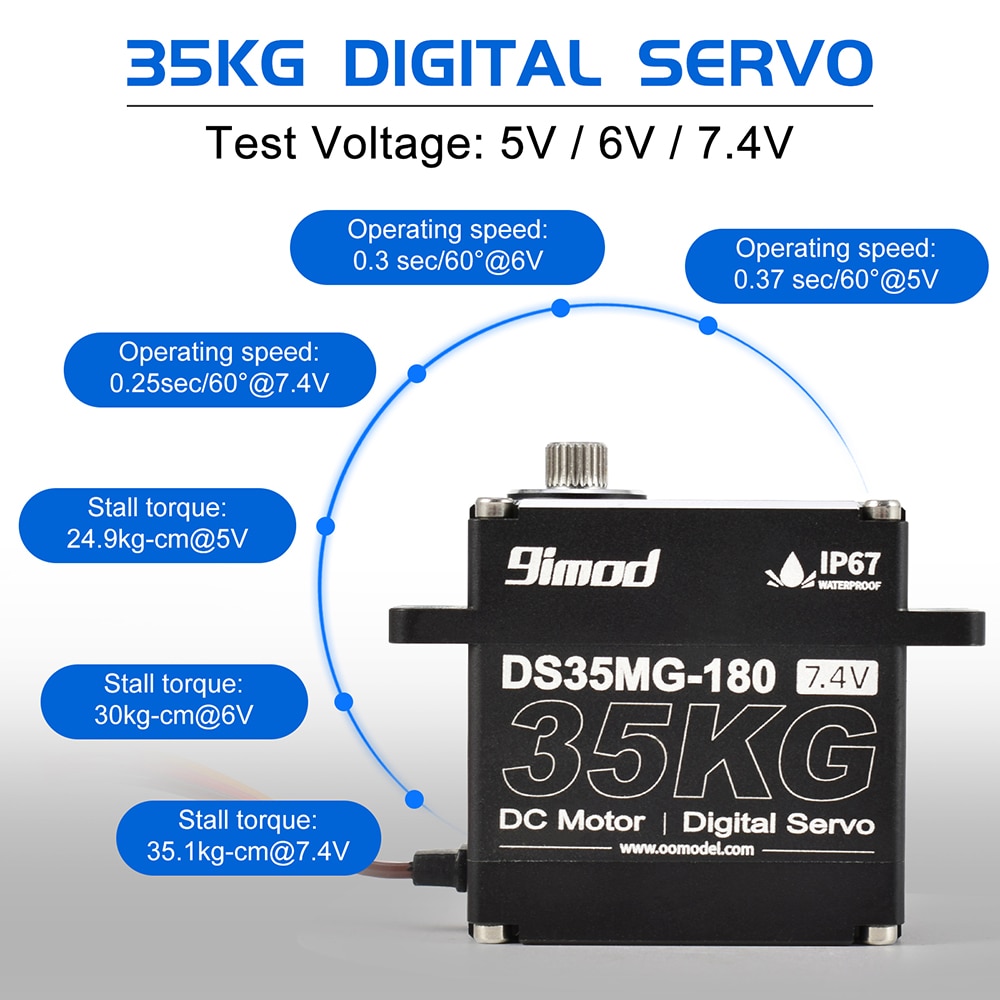

Test Voltage: 5V / 6V / 7.4V
Idle current(at stopped): 270mA@5V / 320mA@6V / 360mA@7.4V
Operating speed (at no load):0.37 sec/60°@5V; 0.3sec/60°@6V; 0.25sec/60°@7.4V
Stall torque (at locked): 24.9kg-cm@5V; 30kg-cm@6V; 35.1kg-cm@7.4V
Running Current: 1.9A@5V; 2.3A@6V; 2.8A@7.4V
Dead band width :2µsec
Ball Bearing:2BB

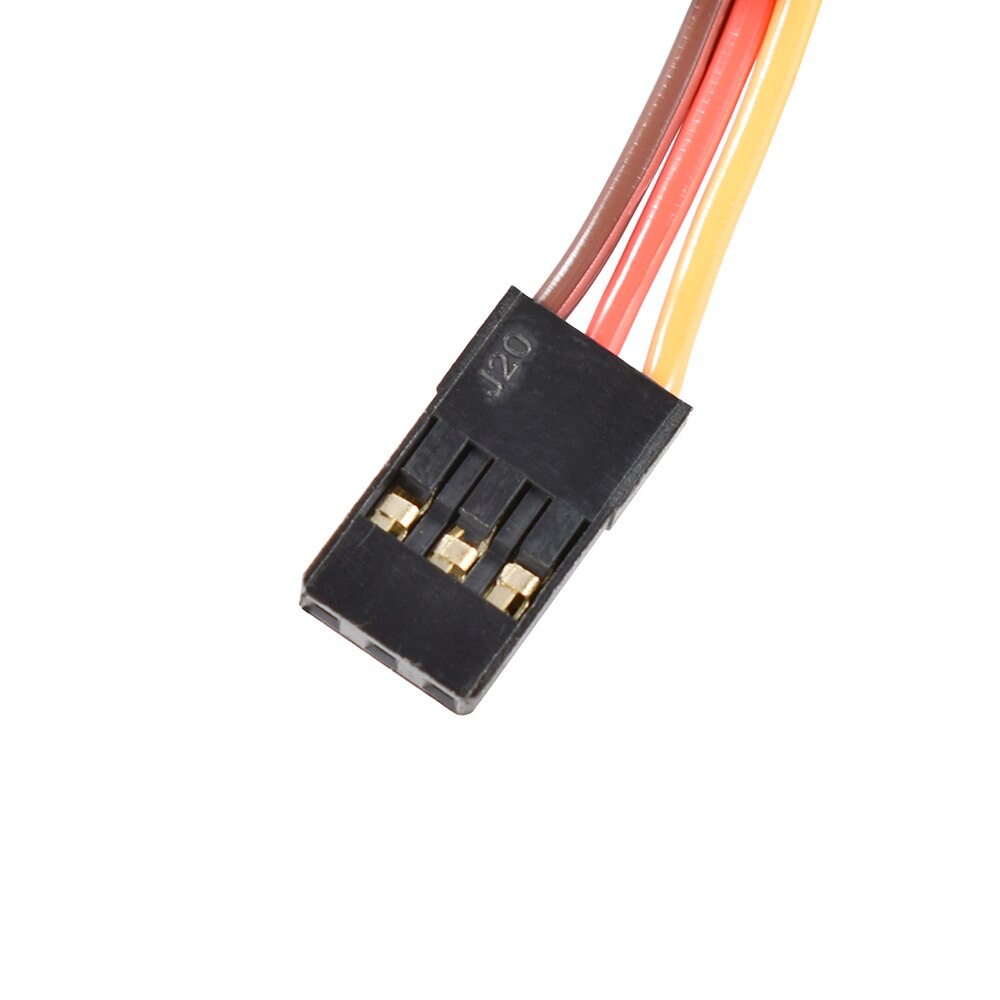

Connector Wire Length: 300MM JR Plug
Connector Wire Gauge:22AWG
Wire Info (Brown):Negative
Wire Info (Red):Positive
Wire Info (Black):Negative
Wire Info (Yellow):S Sinqle

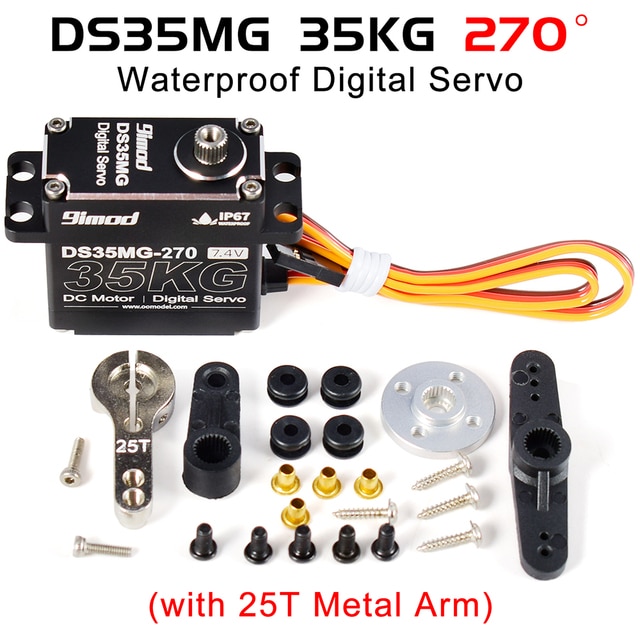

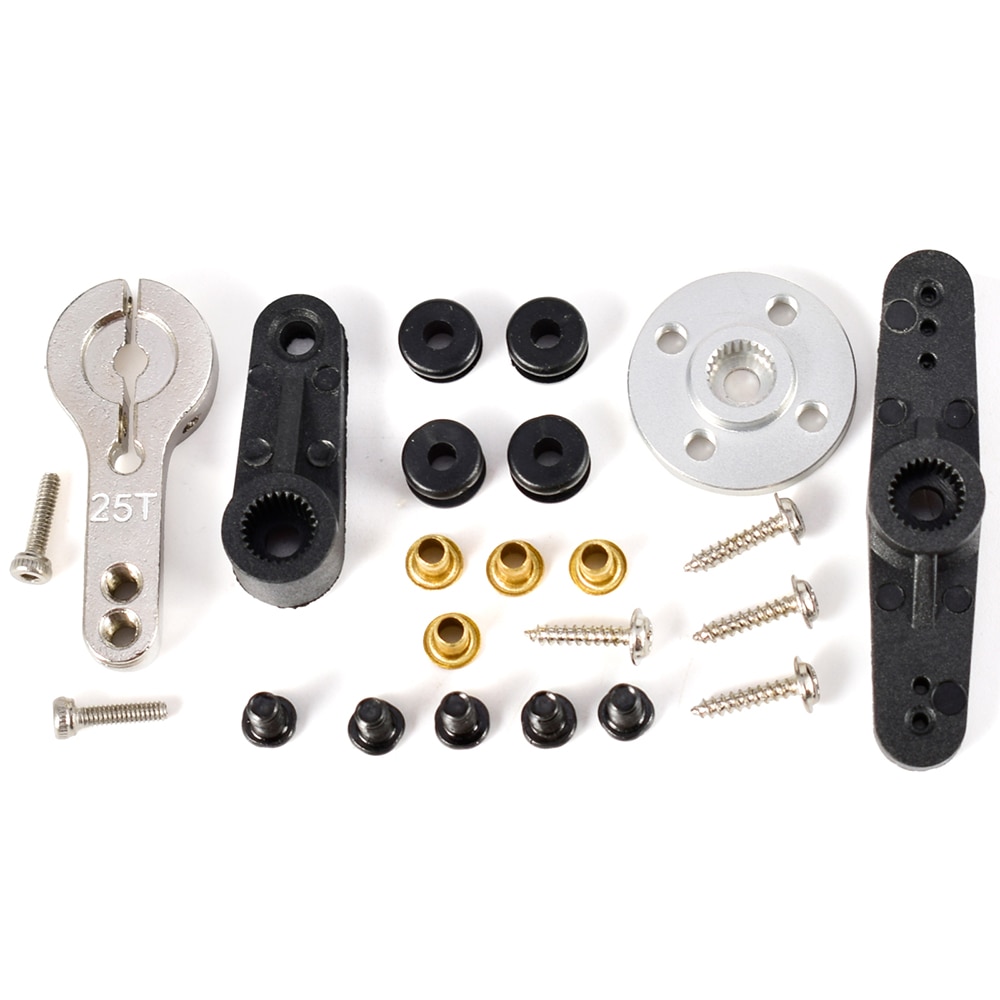

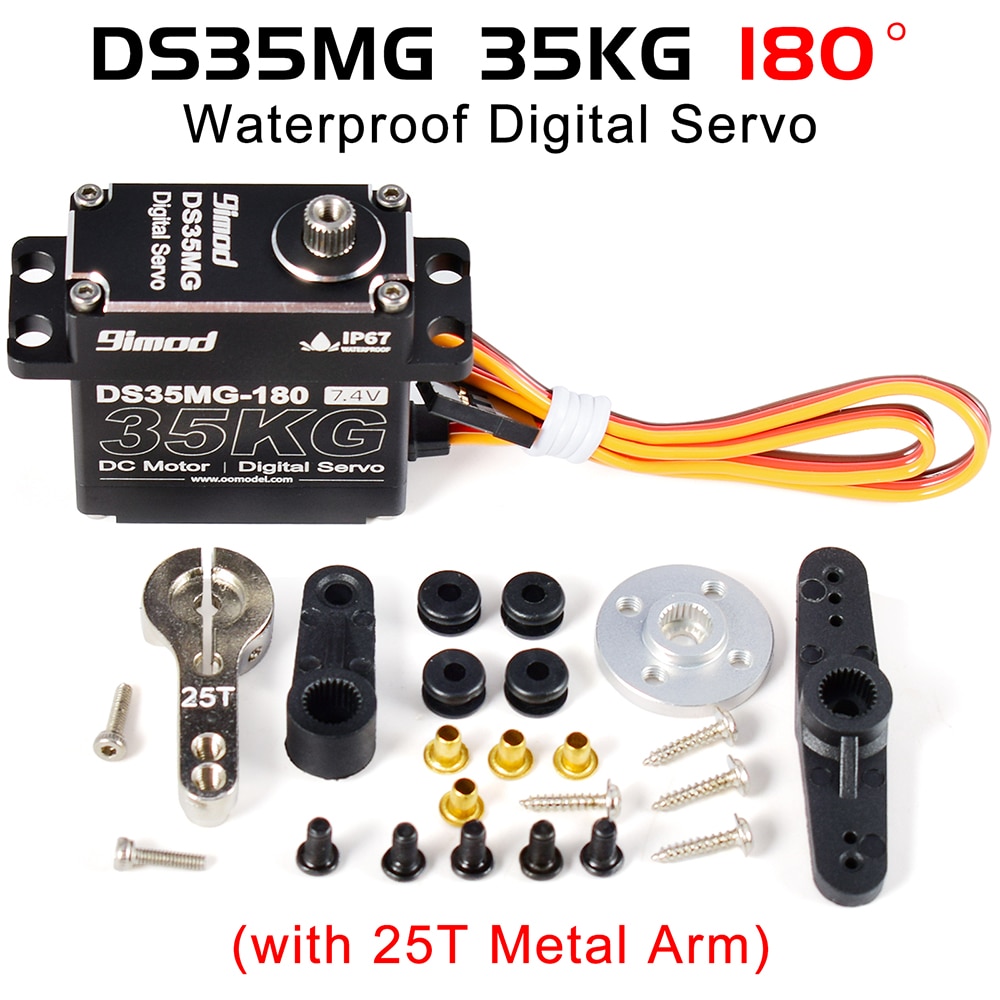

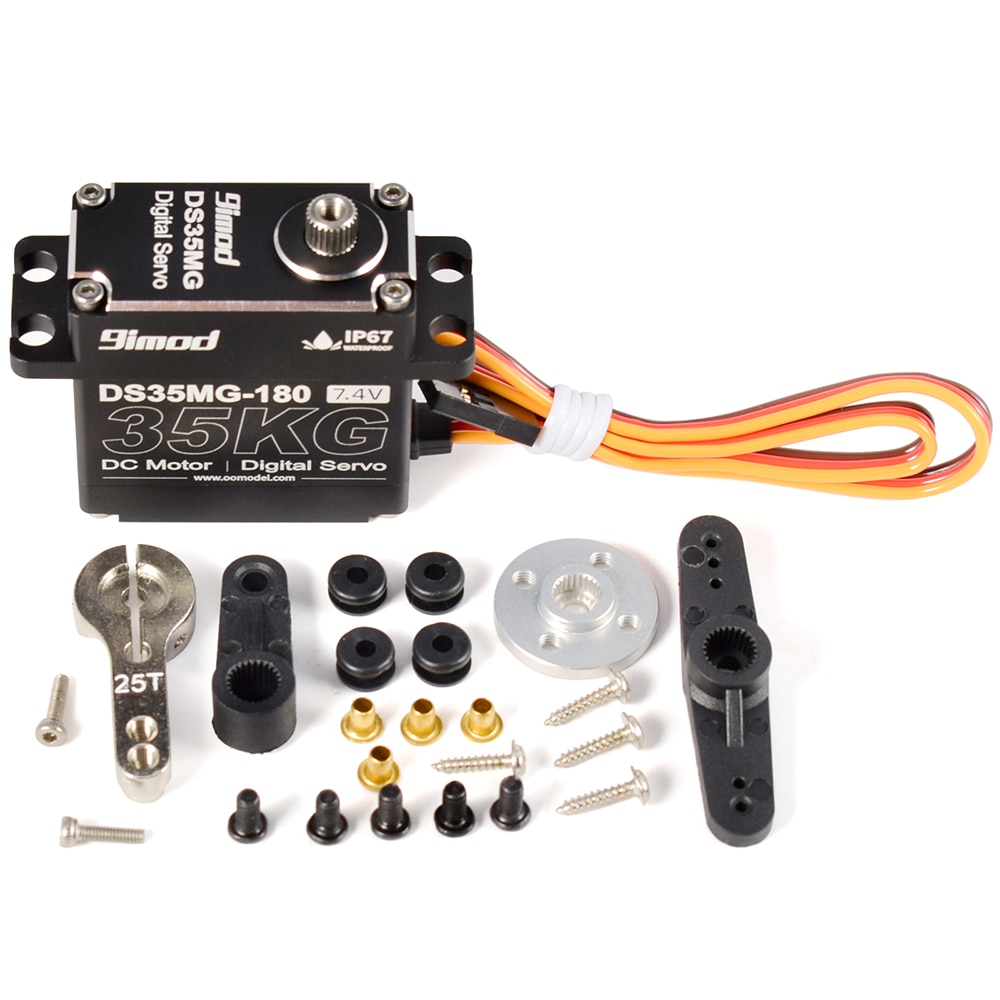

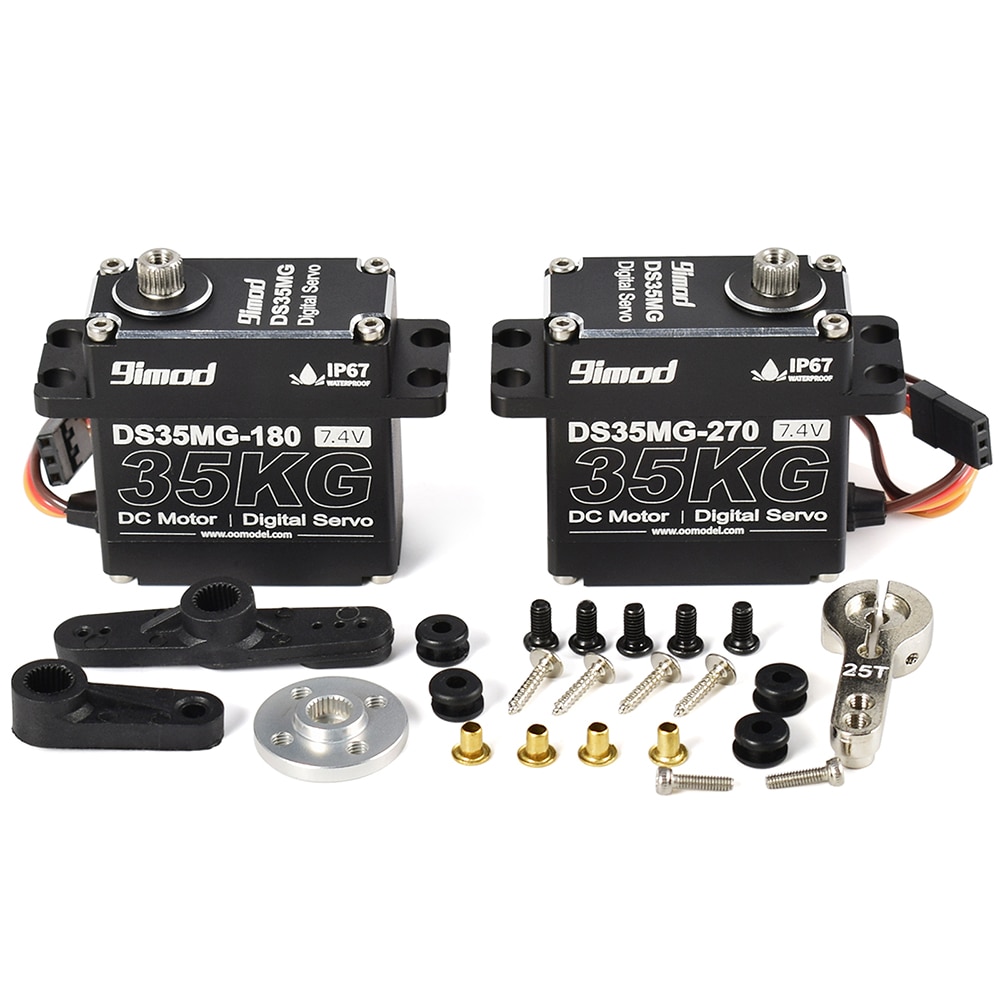

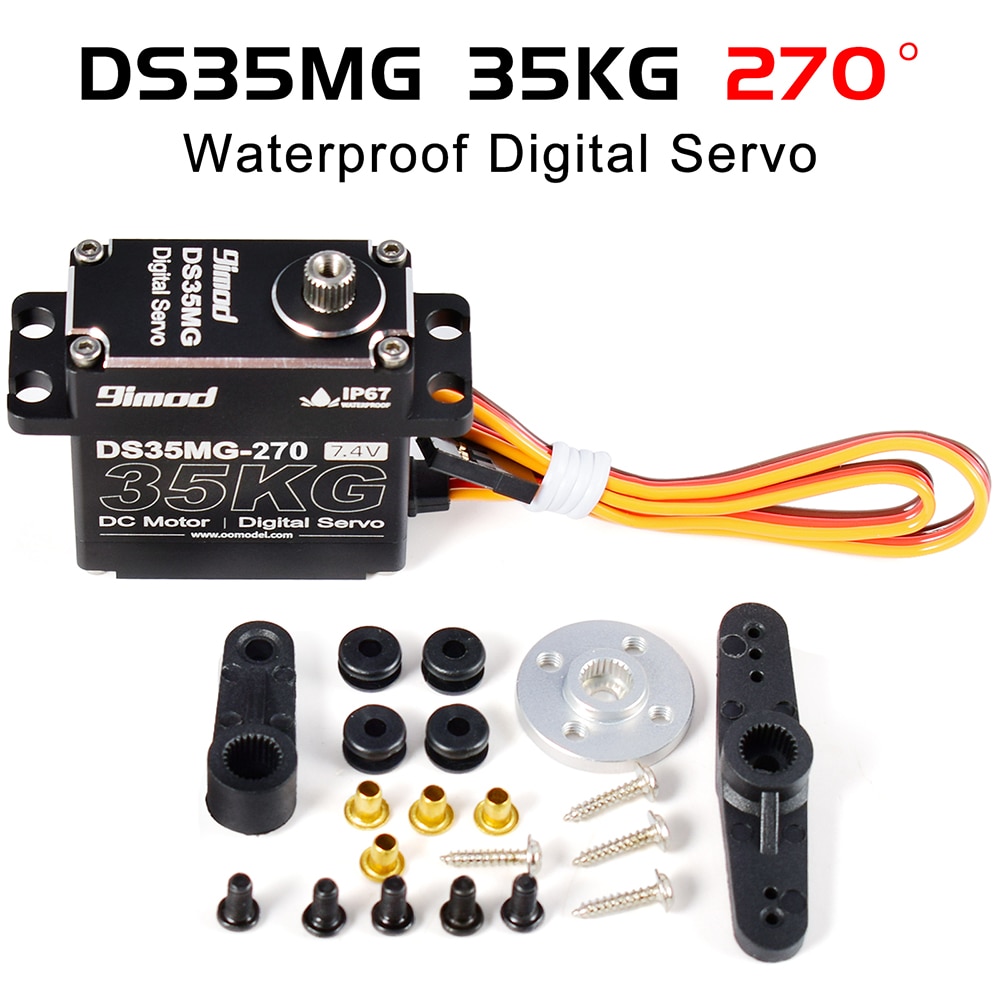

Package included:
1 x 35KG Waterproof Digital Servo
1 x 25T Adjustable metal servo arm
1 x 25T Round Type Servo Horn
one set of accessories
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
2.Waterproof performance: IP67 (Please watch the waterproof test video). Controllable angle range from 0 to 180 /270 degrees, Excellent linearity, precision control.
3.Widely Use Digital High Torque Servo：This 35kg Waterproof Servo's maximum torque is up to 35 kg/cm@7.4V ,Compatible with 1/6,1/8, 1/10, 1/12 Scale Clawer Truck, Traxxas, scx10, RC Car / Robot / Boat and other remote control models.
4.Metal Gear Servo:Equipped with Stainless Steel Gears, Full CNC aluminium Shell, Less Noise, light weight.Dual ball bearings.
5.High Speed Servo Standard Size: 1.57 x 0.78 x 1.57 inch(40 x 20 x 40 mm); Weight:2.7oz (80g)
Description:
The 9imod DS35MG 35KG Large torque Digital Waterproof servo,adopt DC motor,Compared with ordinary servo, the speed is much faster and the reaction is also fast,4.8V -7.4V High Operation Voltage Range,
It's a good accessory for your RC RC Car Truck Crawler Boat Robot and DIY model toy!
Specifications:
Brand:9imod
Model:DS35MG
Color:Black
Control Angle:180°/ 270°optional
Gear Material:Metal Gear
Case Material:Full Aluminum Case
Control System:PWM Control (1500usec in the central point)
Operation Voltage Range:4.8V -7.4V
Storage Temperature Range: -30℃～80℃
Operation Temperature Range:-20C°~ +60C°
Circle:＞80000 times without load
Operation Travel:60°±1
Limit angle :180°± 1/270°± 1 optional
Direction:Re-clock wise/ Pulse Travel 500→2500 μsec
Diver type:Mos Drive
Motor Type:DC motor
Potentiometer Type:Direct Drive
Amplifier Type:Digital Control
Waterproof performance: IP67
Dimensions:40x20x40.50mm
Weight:80g (without servo horn)
Test Voltage: 5V / 6V / 7.4V
Idle current(at stopped): 270mA@5V / 320mA@6V / 360mA@7.4V
Operating speed (at no load):0.37 sec/60°@5V; 0.3sec/60°@6V; 0.25sec/60°@7.4V
Stall torque (at locked): 24.9kg-cm@5V; 30kg-cm@6V; 35.1kg-cm@7.4V
Running Current: 1.9A@5V; 2.3A@6V; 2.8A@7.4V
Dead band width :2µsec
Ball Bearing:2BB
Connector Wire Length: 300MM JR Plug
Connector Wire Gauge:22AWG
Wire Info (Brown):Negative
Wire Info (Red):Positive
Wire Info (Black):Negative
Wire Info (Yellow):S Sinqle
Package included:
1 x 35KG Waterproof Digital Servo
1 x 25T Adjustable metal servo arm
1 x 25T Round Type Servo Horn
one set of accessories
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied，please give us 5 stars praise.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems.
if you receive a defect item,please contact us at once with item picture or video.
- Quantity: 1 pcs
- Size: 40x20x40.50mm
- Model Number: DS35MG
- For Vehicle Type: Cars
- Tool Supplies: Tools
- Four-wheel Drive Attributes: Assemblage
- Remote Control Peripherals/Devices: Servos
- RC Parts & Accs: Servos
- Material: Metal
- Origin: Mainland China
- Recommend Age: 12+y
- Use: Vehicles & Remote Control Toys
- Certification: CE
