10KG Load Strong Shock Absorption Tank Chassis with Motor Suspension All Metal Tank Robot Kit Coding Motor Intelligent Robot Car

Welcome to Byte robot Tech Store

We are a leading enterprise in the robot industry, focusing on technology, technical skills, education, and educational development. Our range of programmable intelligent products includes robots, robot eyes, robot hands, robotic arms, smart cars, hovercrafts, claws, industrial products, and more. These products not only provide learning opportunities for children and engineers but also ignite their interest in education. We are soon launching more new products in technology, education, and health, suitable for children's entertainment and adult learning. When you purchase our programming products, we will also provide relevant technical documents to assist you in learning and using the products more effectively.

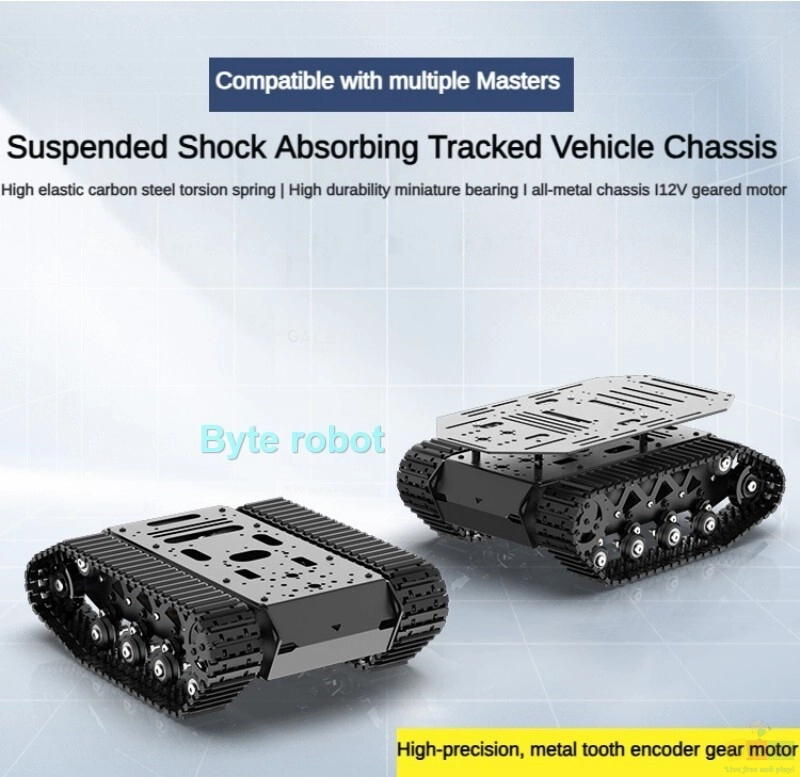

Title: Tracked vehicle chassis Suspension strong shock absorption all metal tank robot code motor intelligent car chassis

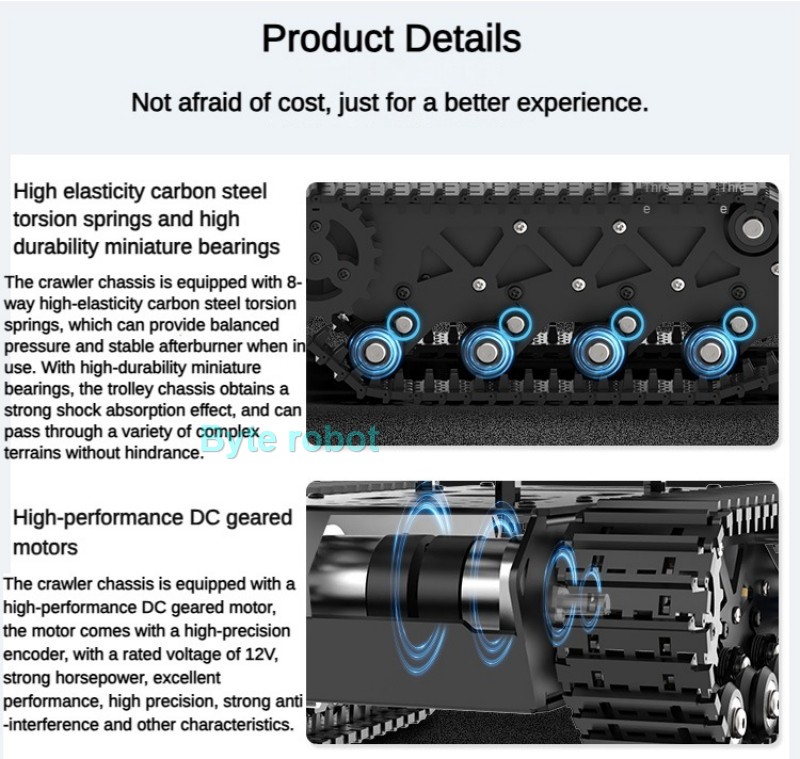

Compatible with a variety of main control suspension shock absorber crawler chassis high elastic carbon steel spring 1 high durability micro bearing 1 all-metal chassis 12V deceleration motor

High elastic carbon steel spring high durability micro bearing High performance coding motor all metal chassis double layer structure design Rich expansion hole position High quality plastic particle track compatible with a variety of master detailed installation tutorial provide original chassis control data Professional technical support learning exchange

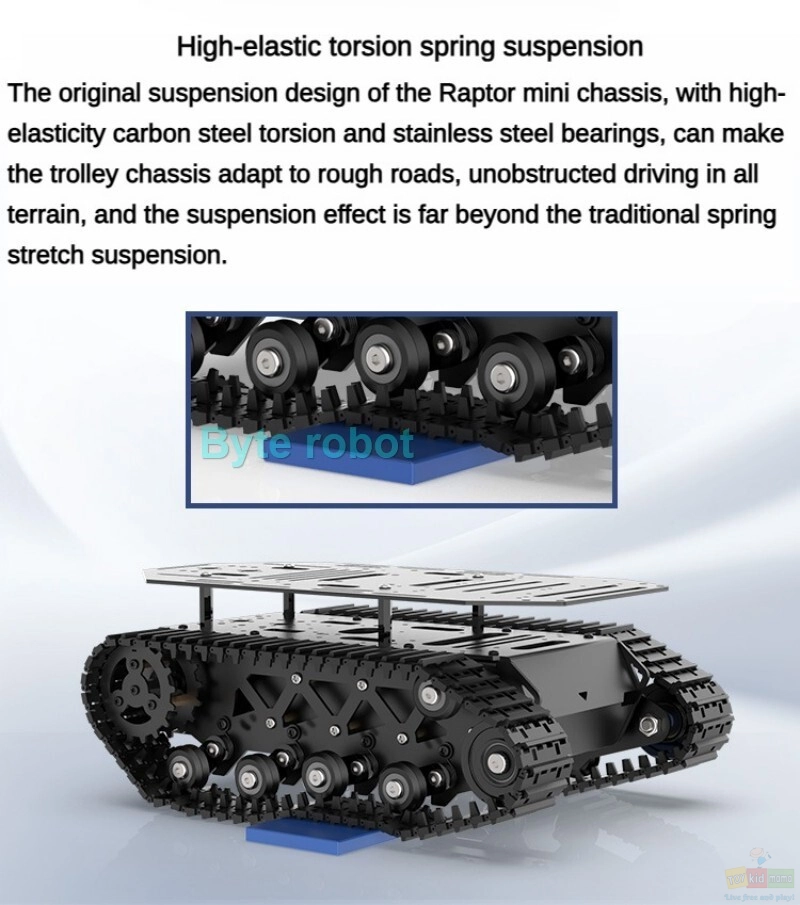

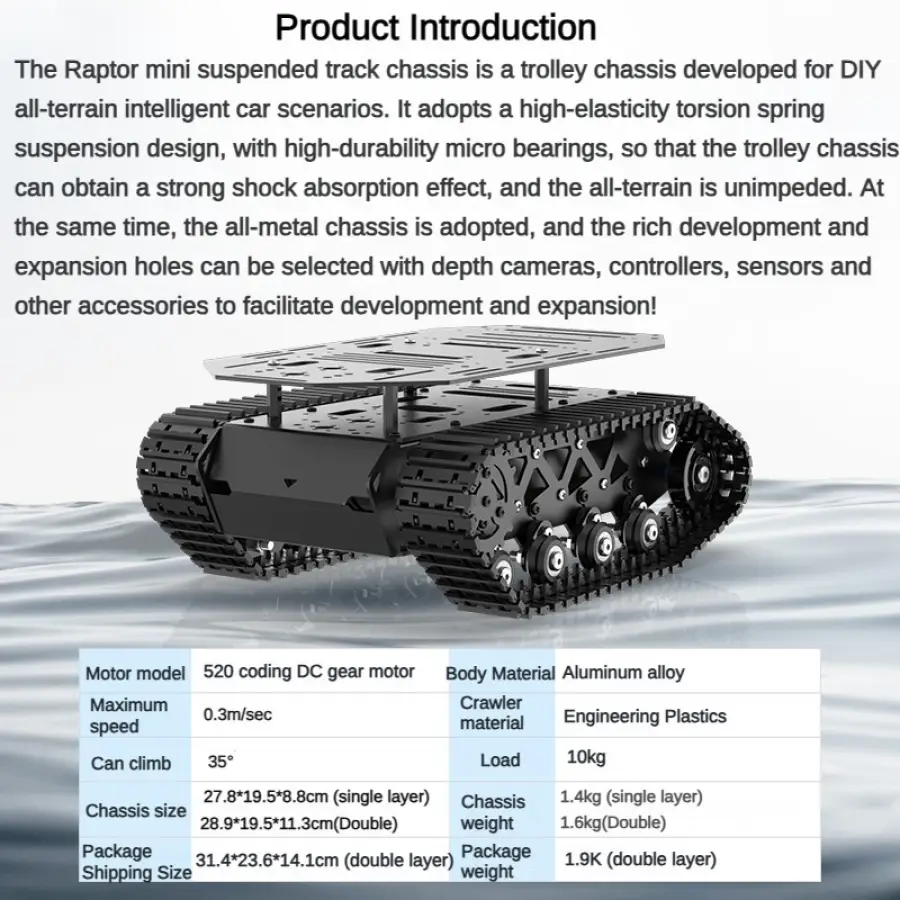

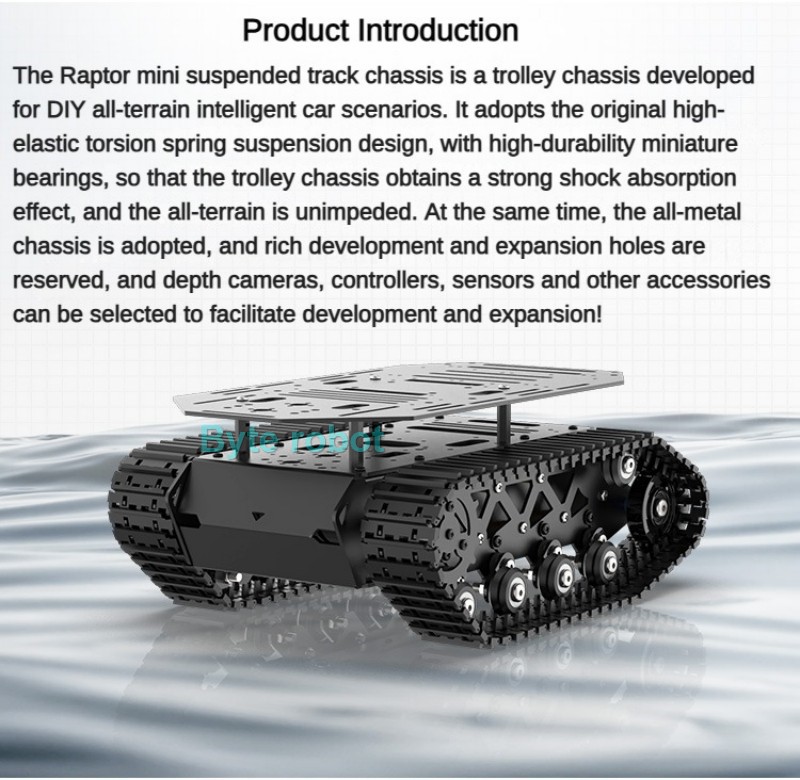

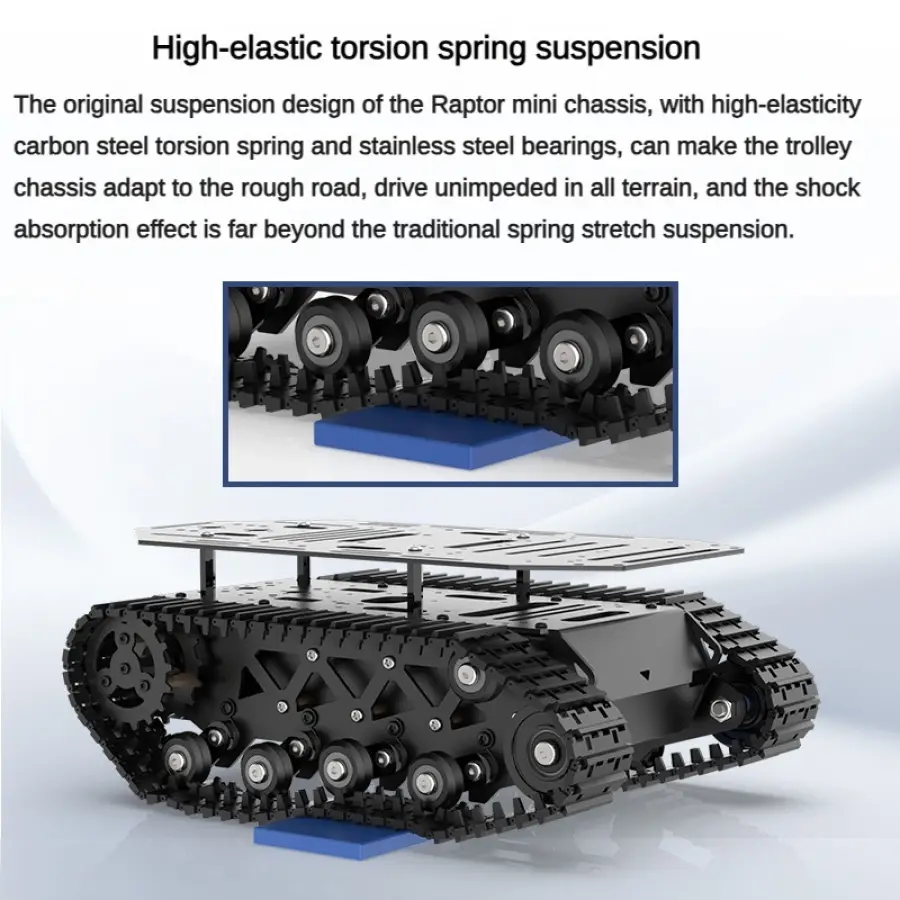

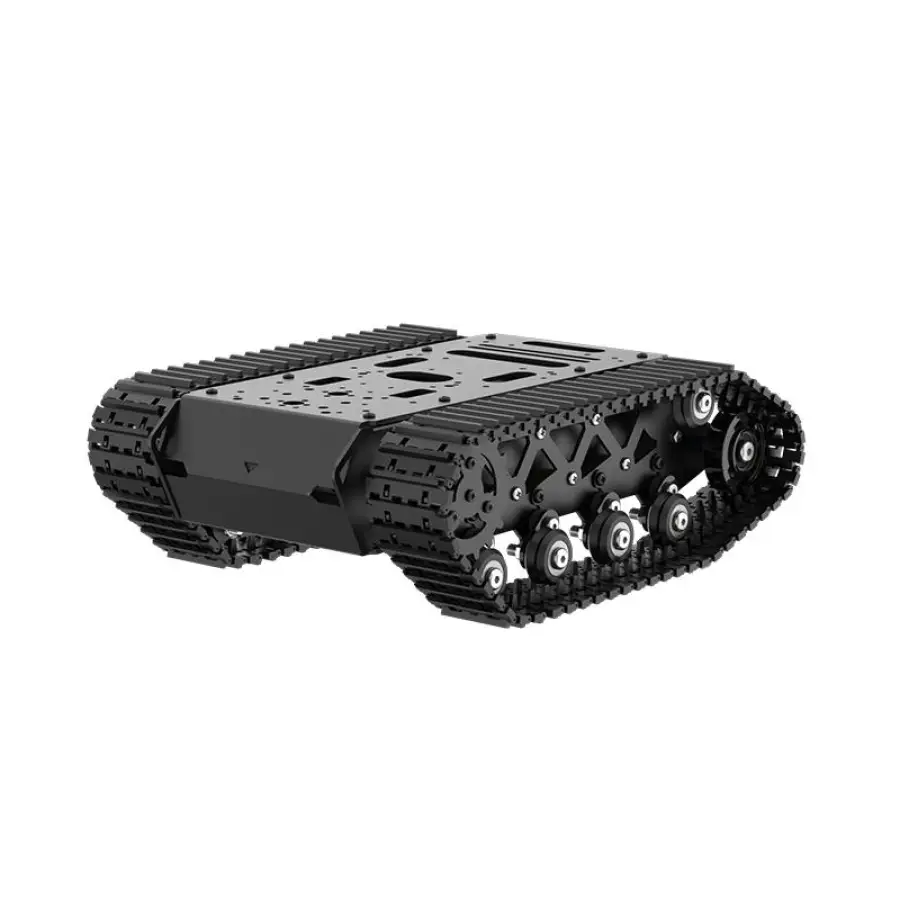

Product Introduction Suspension deceleration track chassis is a car chassis developed by Magic Technology for DIY all-terrain intelligent car scene. It uses 8-way high-elastic carbon steel spring, with high-durability micro bearing, so that the carriage chassis to obtain strong shock absorption effect, all-terrain unimpeded. At the same time, the all-metal chassis is reserved for rich development and expansion holes, and accessories such as depth cameras, controllers, sensors can be optional, which is convenient for development and expansion!

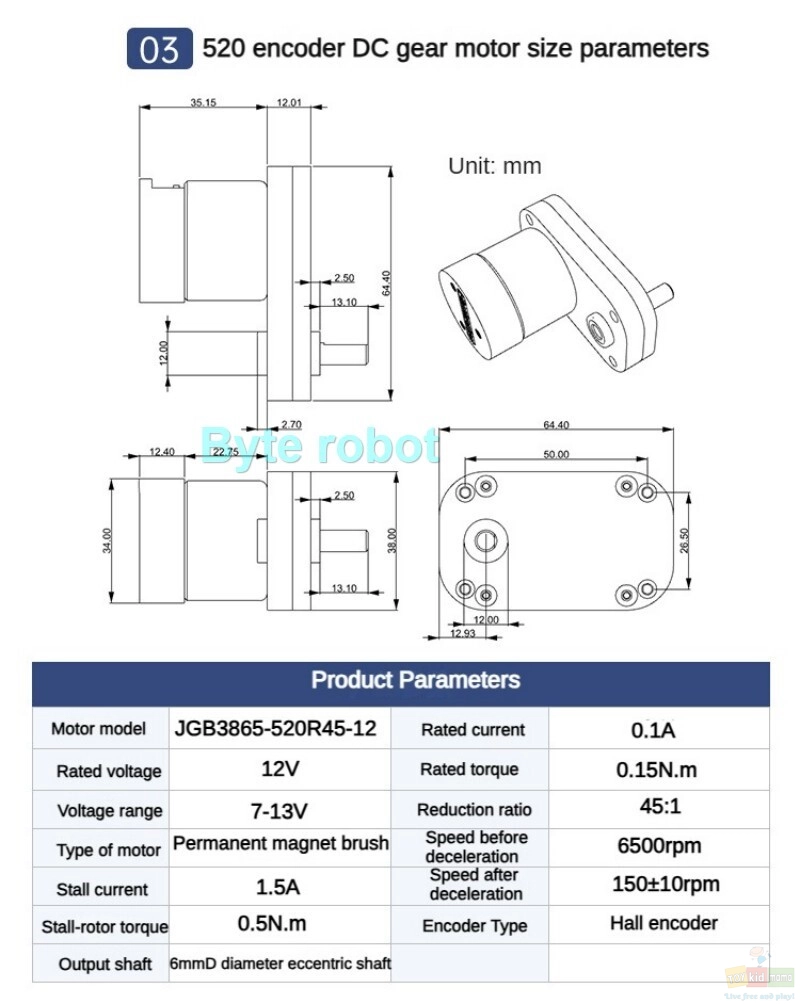

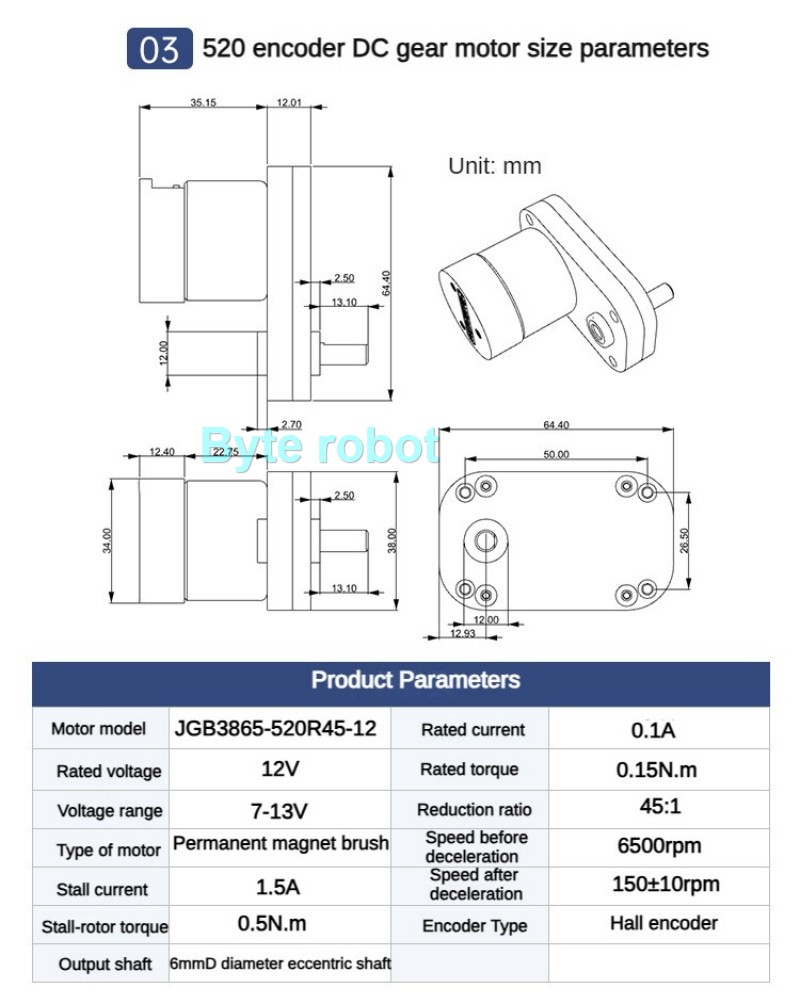

DC Gear motor crawler chassis equipped with High performance DC Gear motor, motor comes with high precision encoder, rated voltage 12V, strong horsepower performance, with high precision, strong anti-interference and other features.

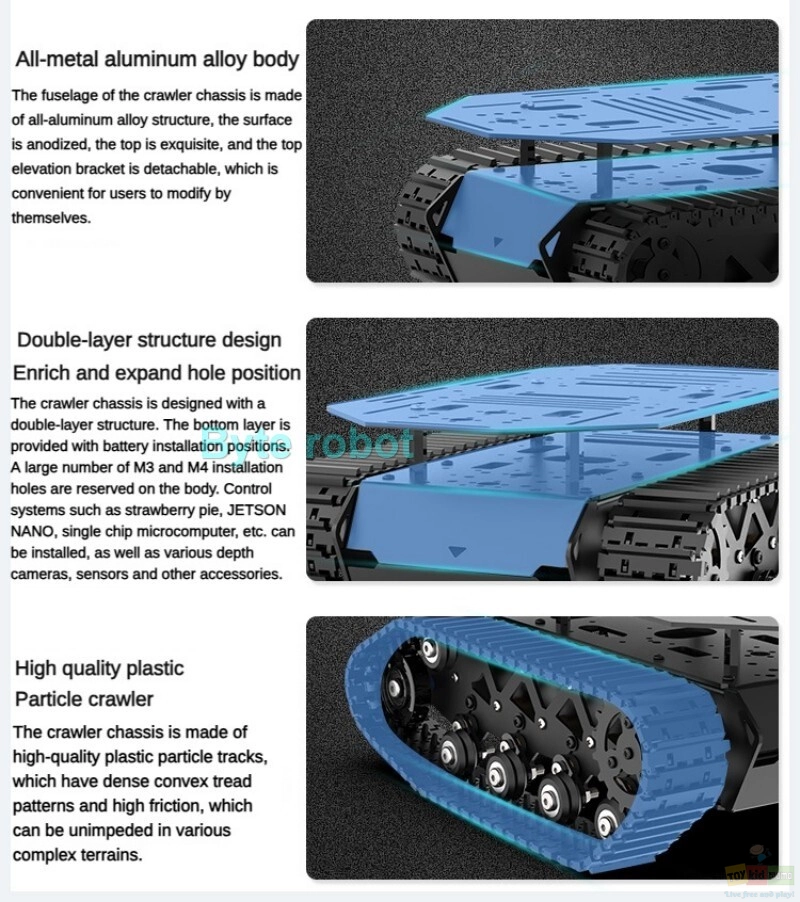

The body of the track chassis adopts All metal aluminum body structure, and the surface is anodized, which is beautiful and exquisite. The top height bracket can be disassembled, which is convenient for users to modify.

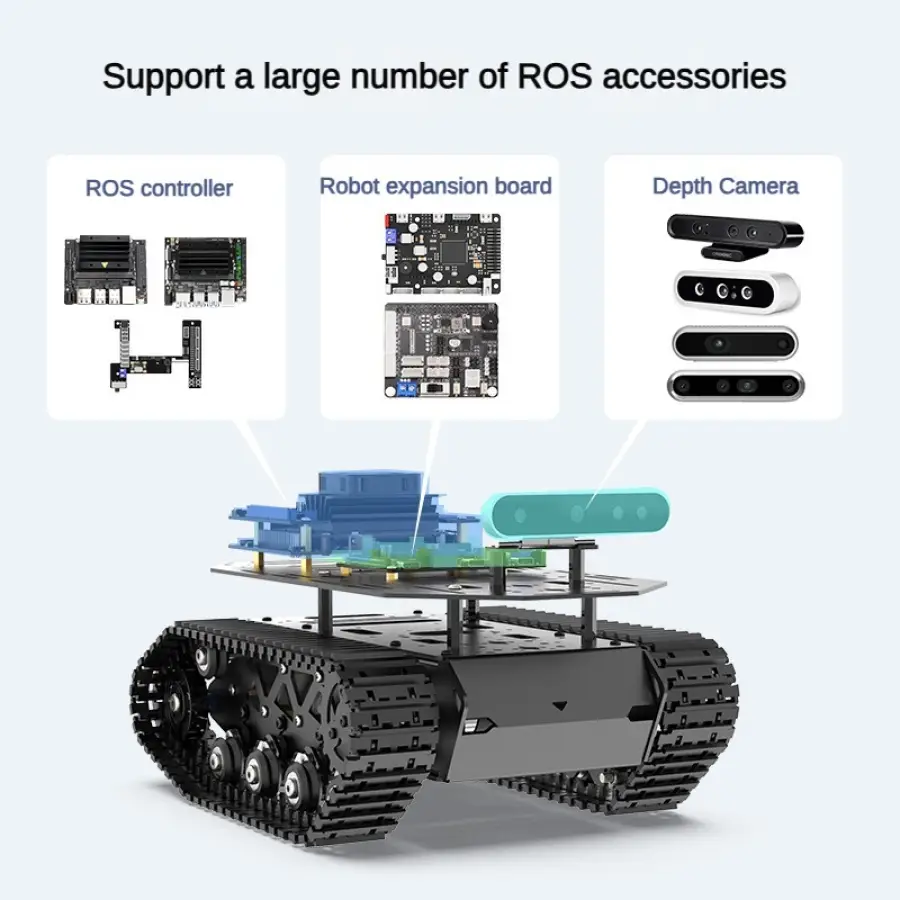

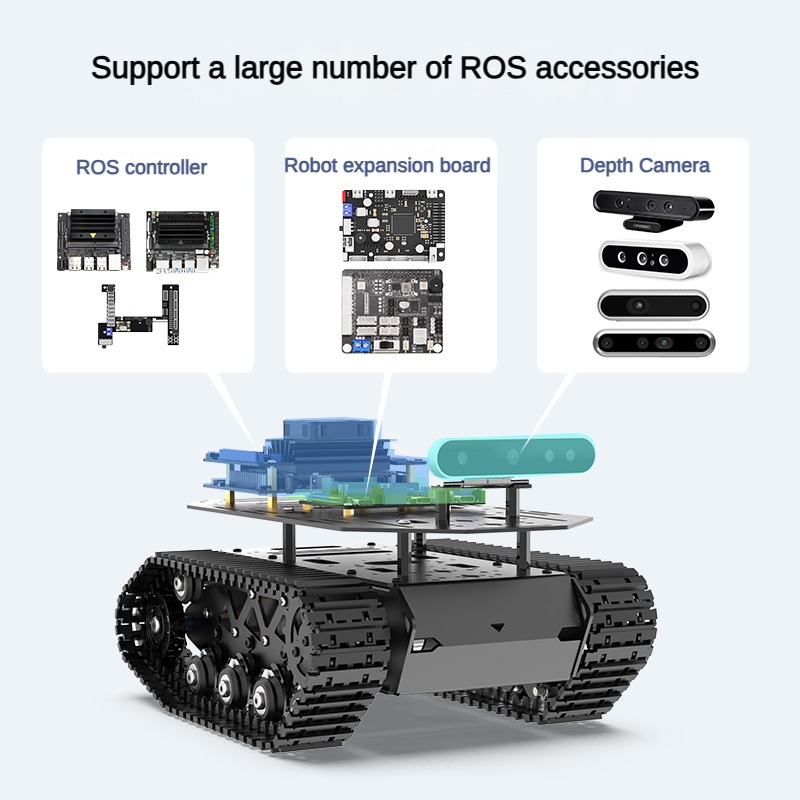

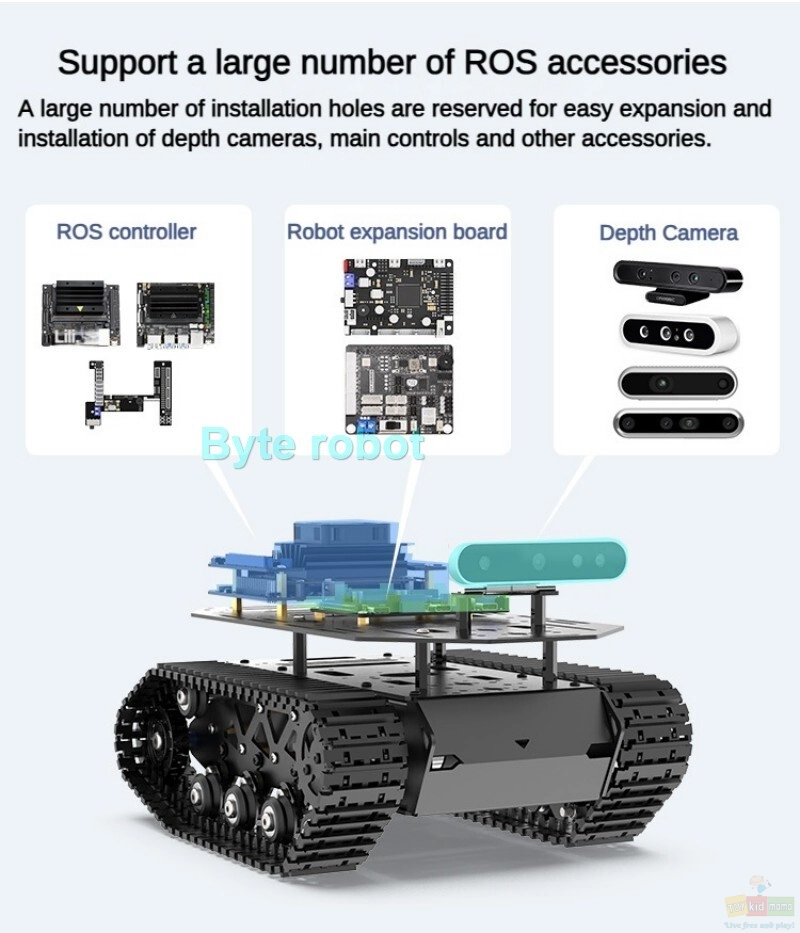

Two-layer structure design Expand the holes Two-layer structure design expand the holes Track chassis adopts double layer structure design, the bottom layer is equipped with battery mounting position, A large number of M3 and M4 mounting holes are reserved on the fuselage for the installation of control systems such as Raspberry PI, JETSON NANO, microcontroller, and various depth cameras, sensors and other accessories.

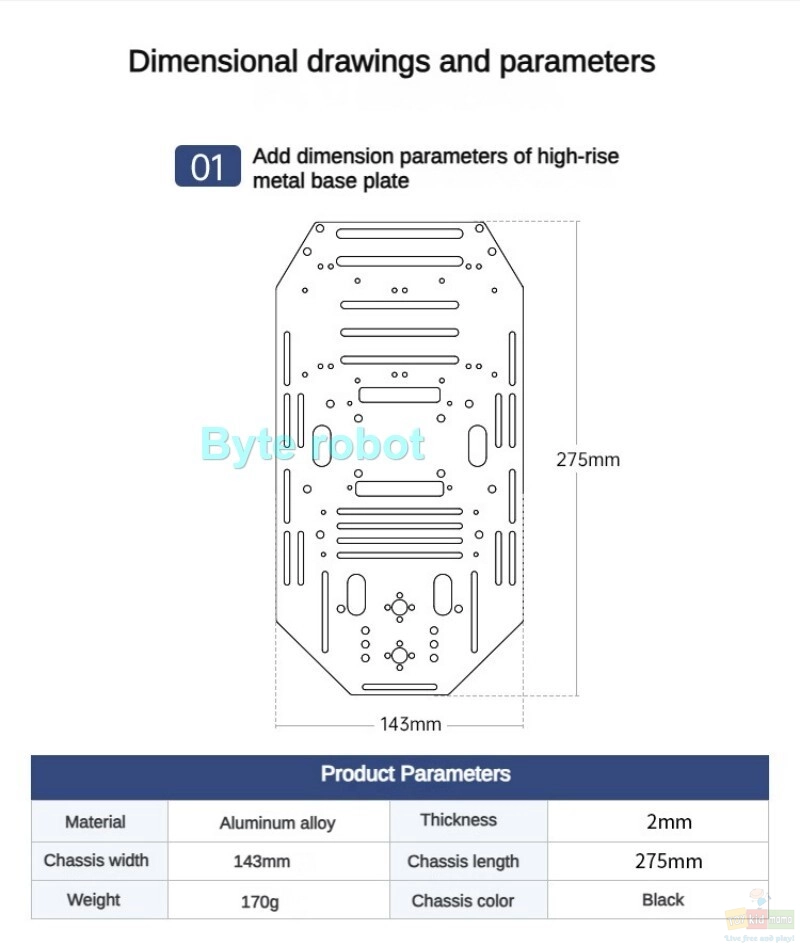

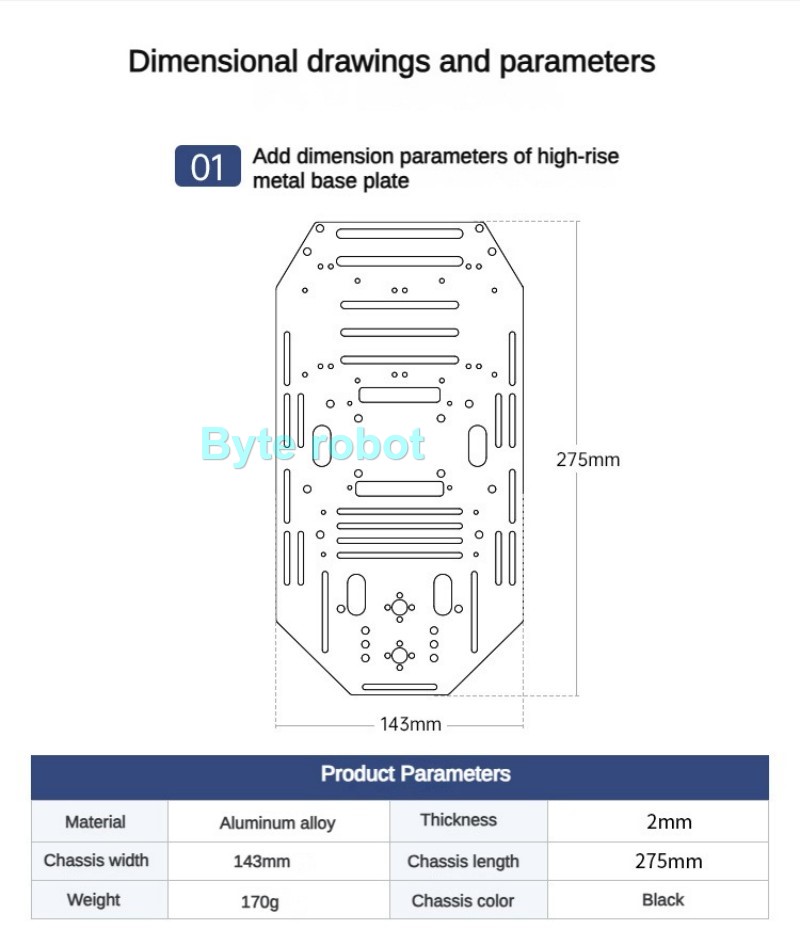

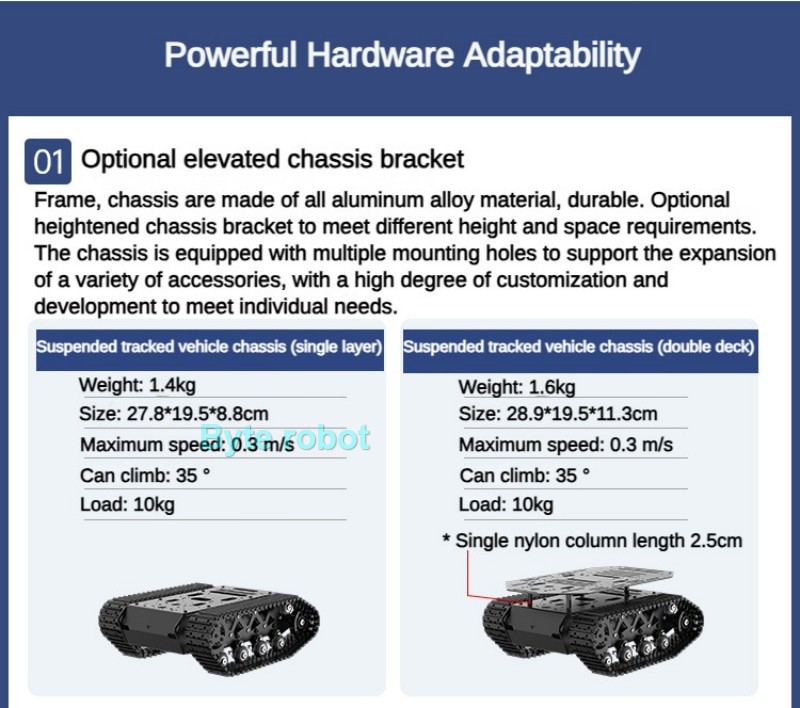

Optional high chassis bracket frame, chassis are made of aluminum alloy material, durable. The chassis can be optionally raised to meet different height and space requirements. Chassis with multiple mounting holes, support the expansion of a variety of accessories, with a high degree of customization and development to meet individual needs.

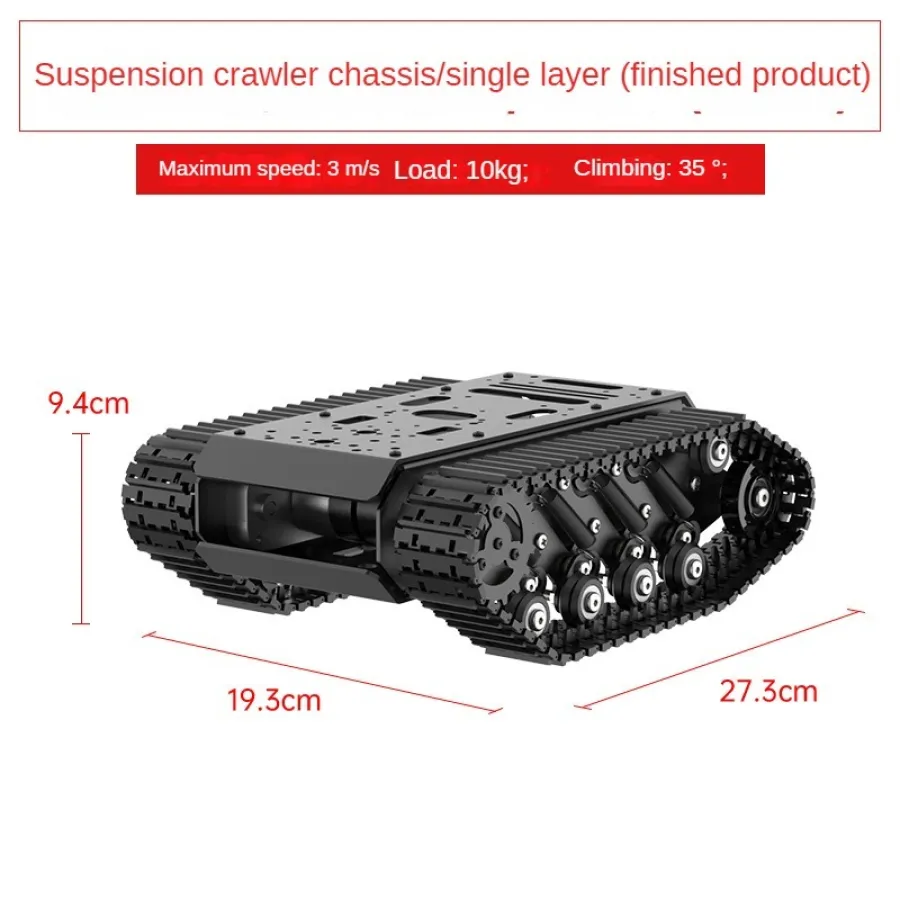

Suspension crawler chassis :

Single weight: 1.4kg

Size: 27.3*19.3*9.4cm

Maximum speed: 3m/ SEC

Climbing: 35°

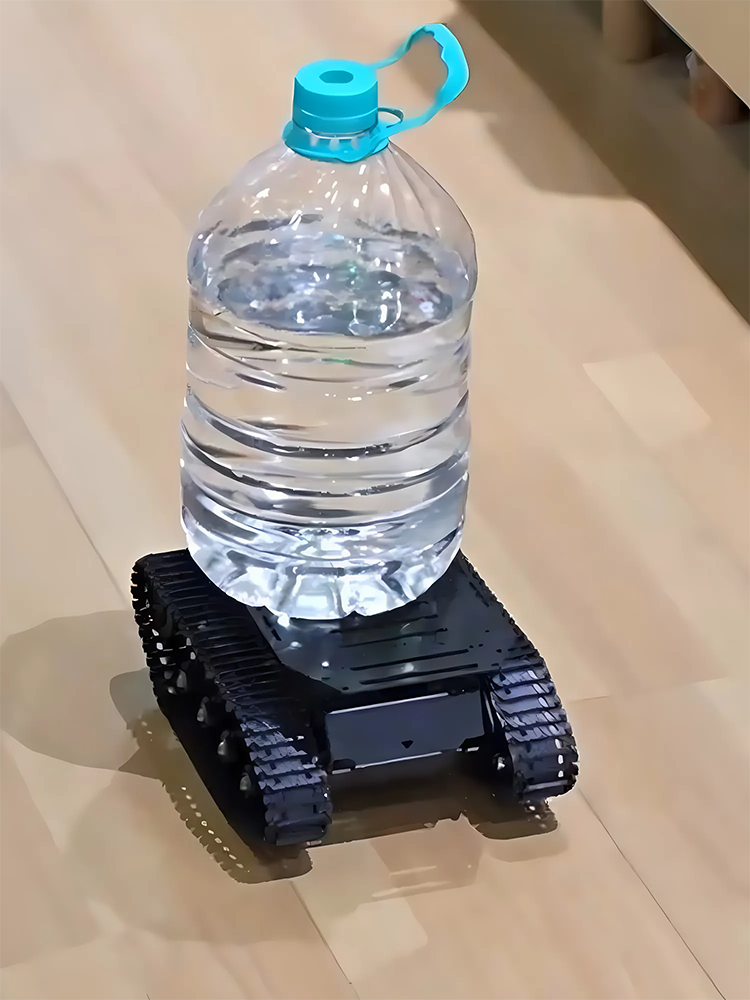

Load: 10kg

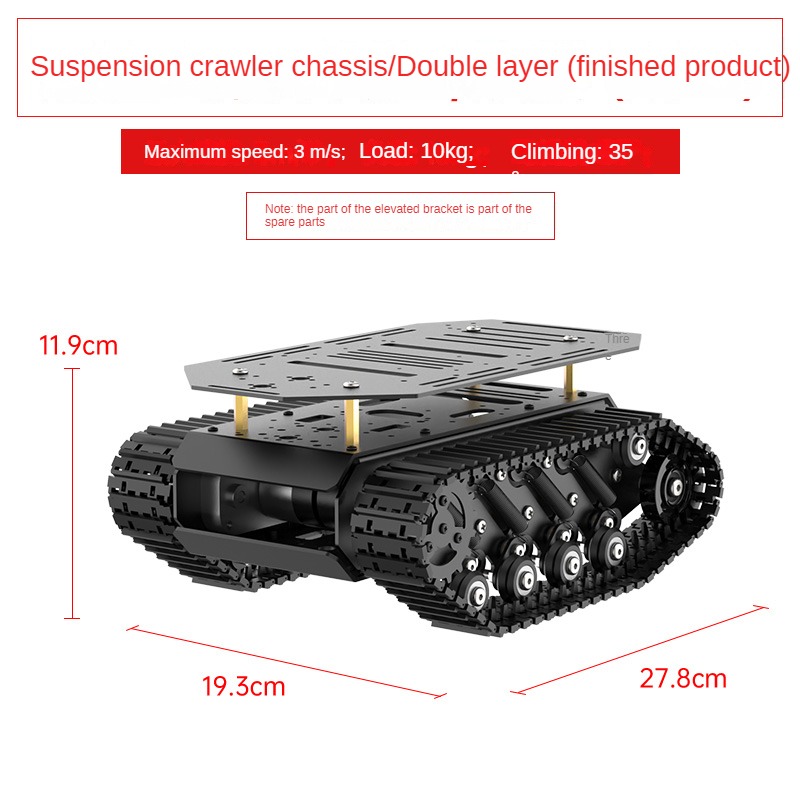

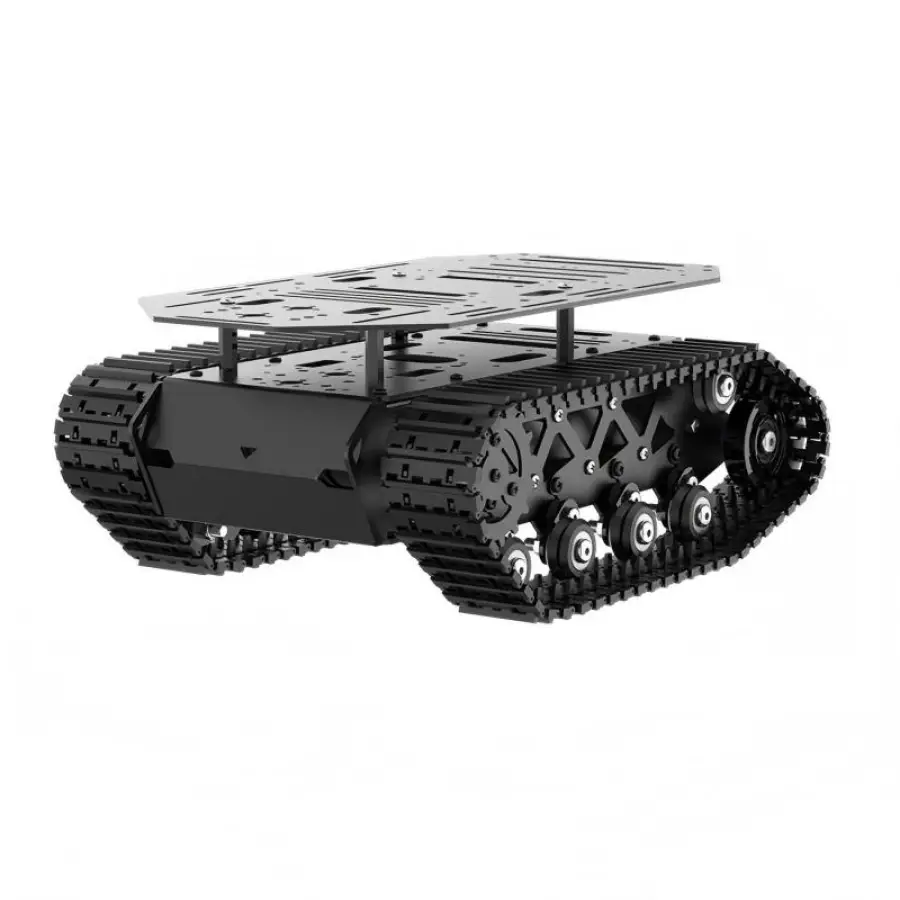

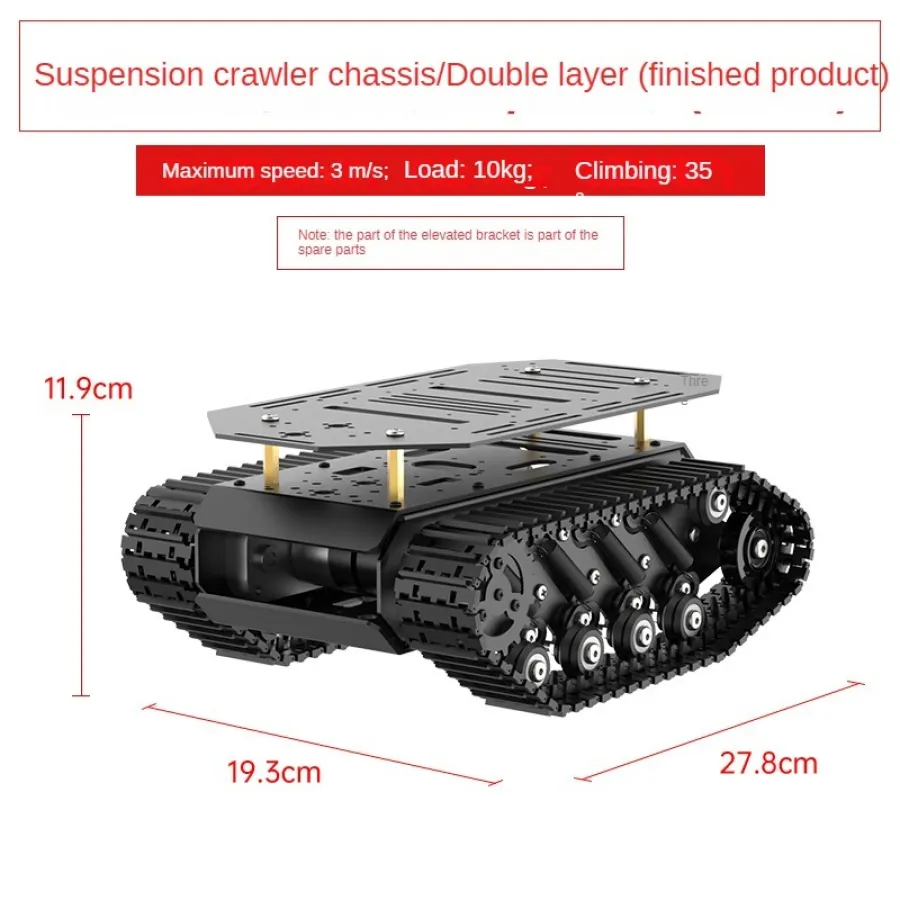

Suspension crawler chassis (double layer) :

Weight: 1.6kg

Size: 27.8*19.3*11.9cm

Maximum speed: 3m/ SEC

Climbing: 35°

Load: 10kg

Package list:

Single layer tank:

1 set Single layer car chassis(have installed), without contoller ,without 12V battery.

Double layer tank:

1 set Double layer car chassis(have installed except the top layer),without contoller ,without 12V battery.

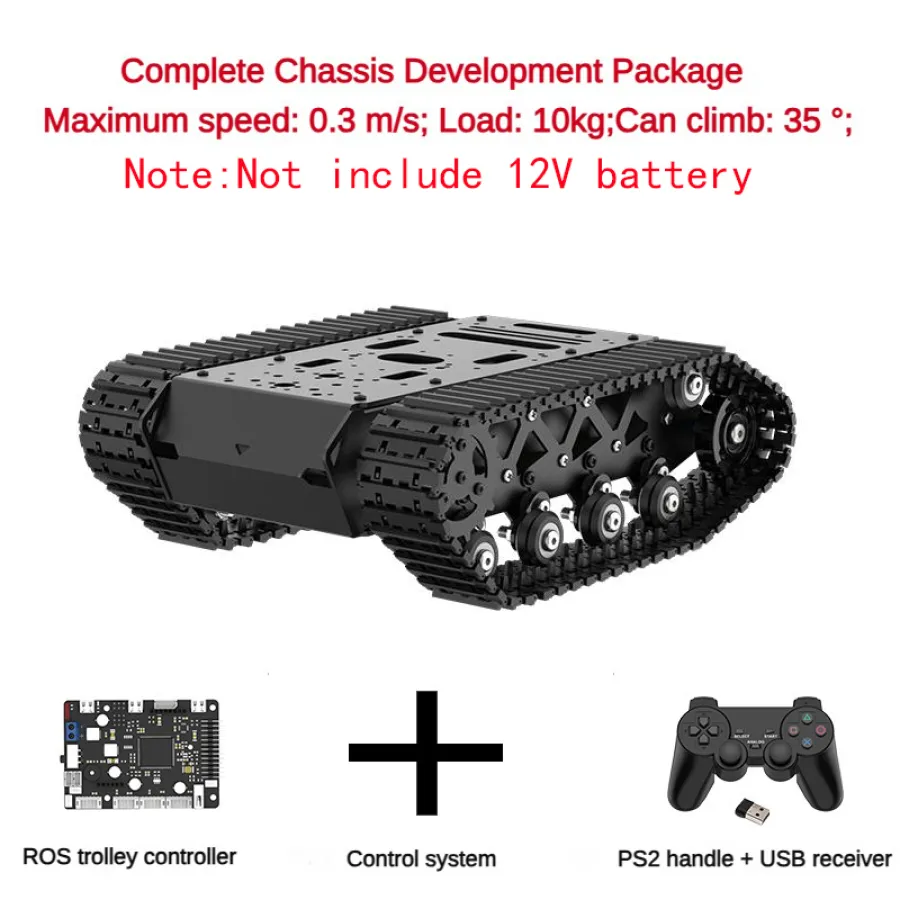

Single full set:

1 set Single layer car chassis(have installed), with contoller ,without 12V battery.

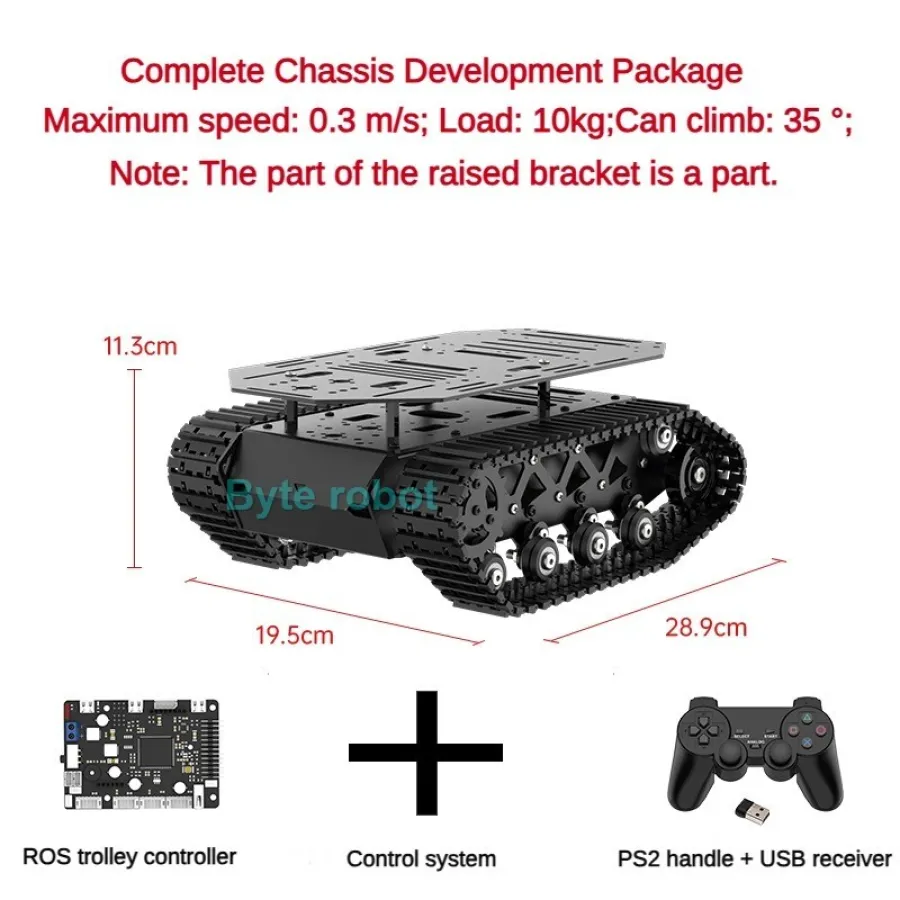

Double full set:

1 set Double layer car chassis(have installed except the top layer),with contoller ,without 12V battery.

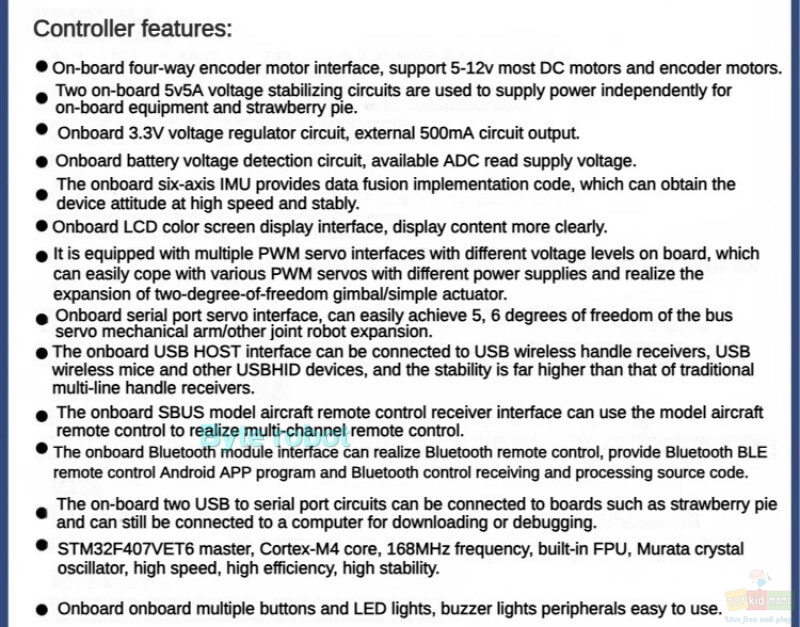

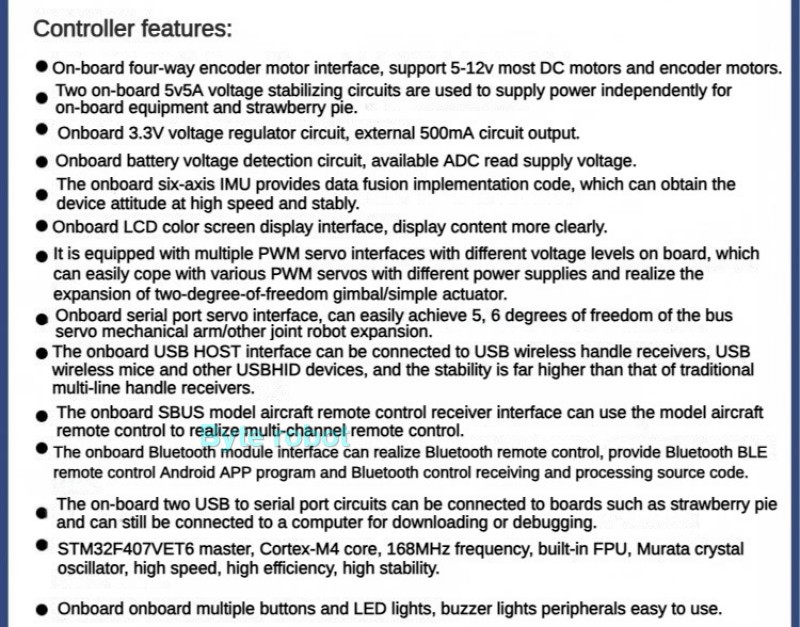

Controller:

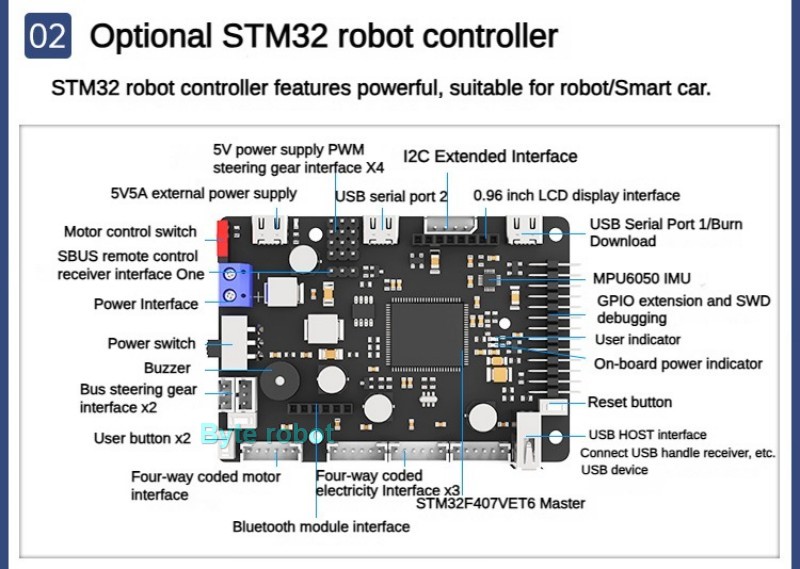

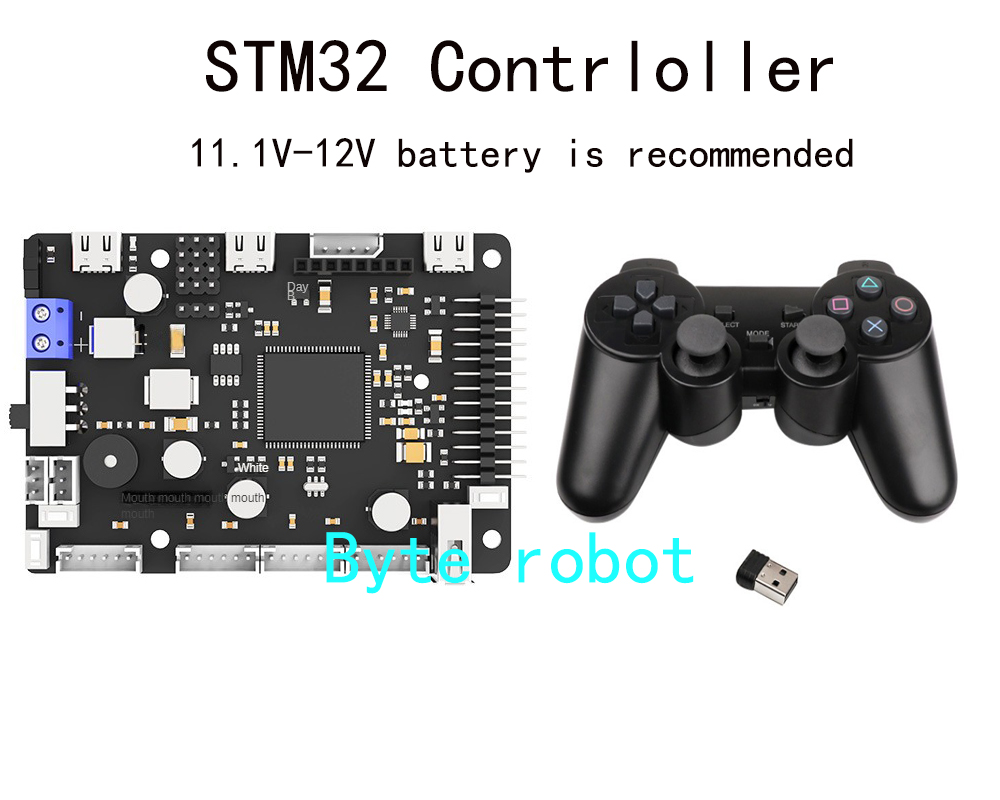

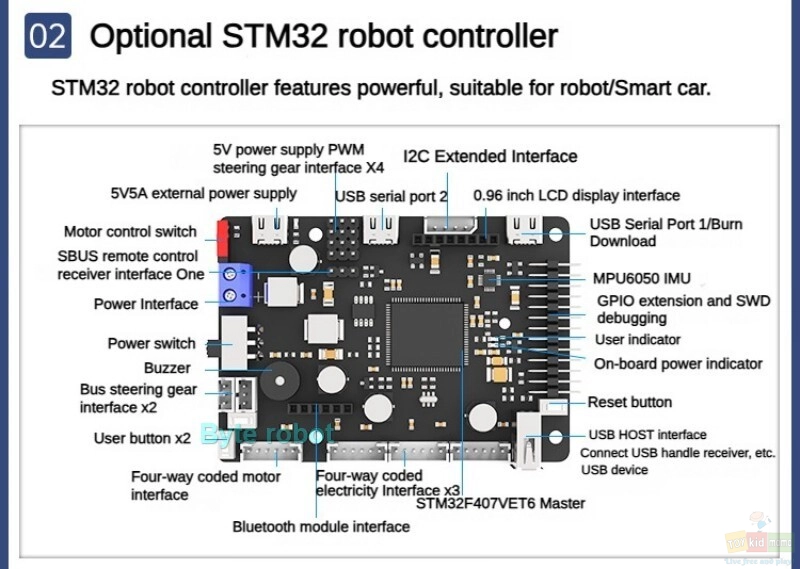

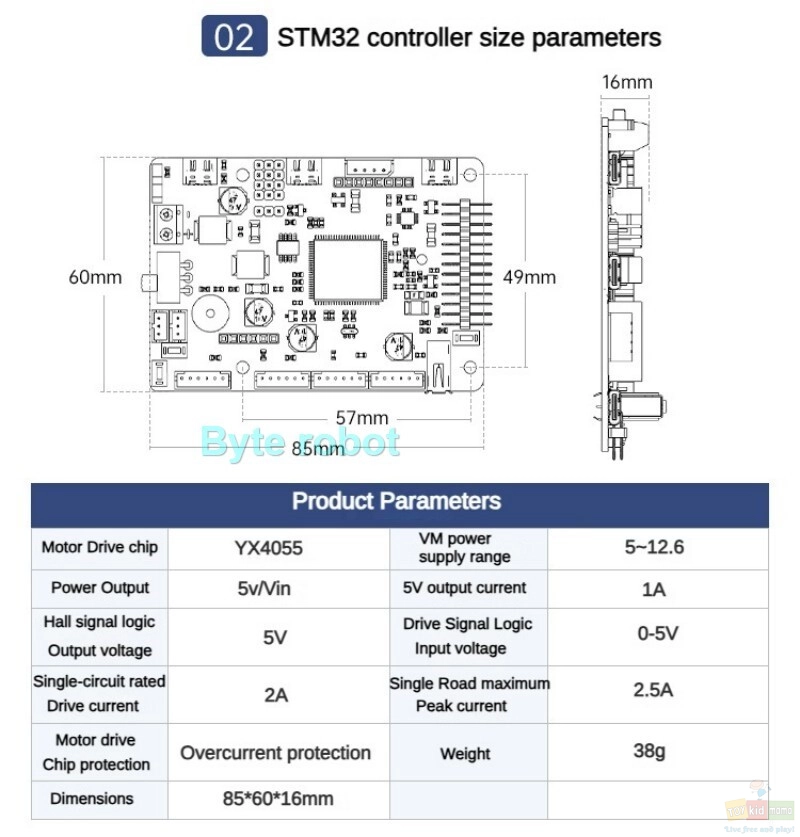

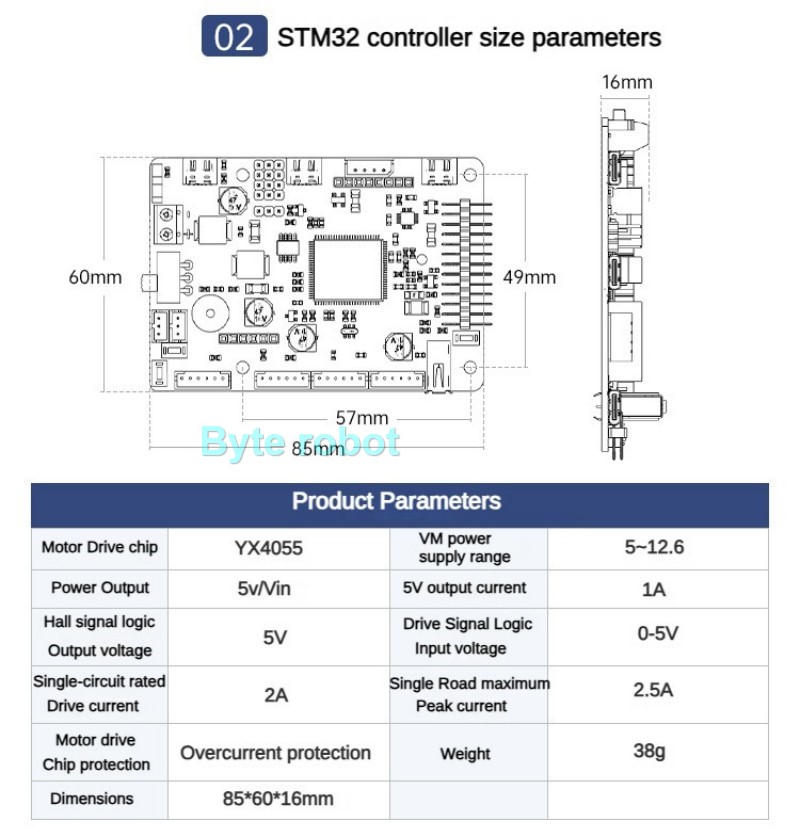

1set STM32 controller + PS2 handle,without 12V battery.

Note:

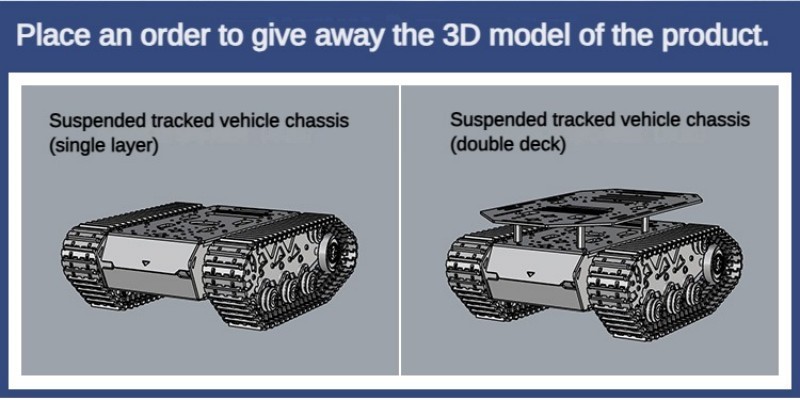

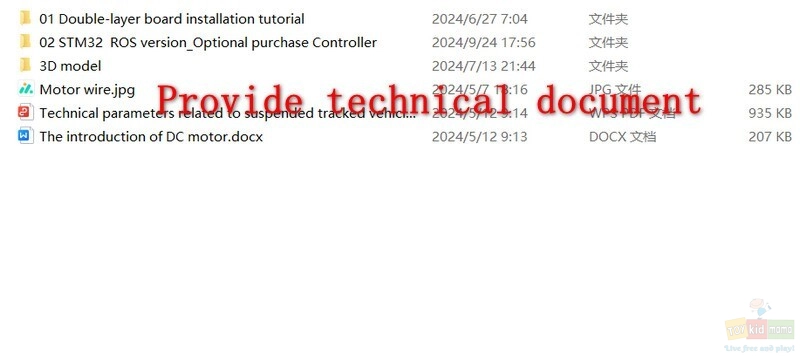

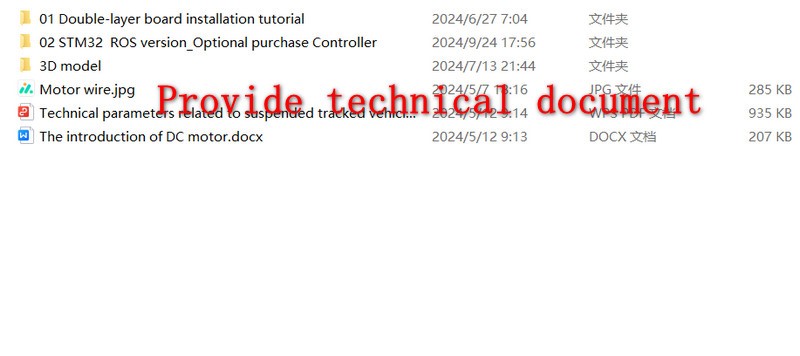

1.This chassis is assembled(except the top layer and controller), you need to assemble it, we provide installation tutorials or STM32 open source code and 3D model(stp file) for free，Please leave your email address.

2.Due to the customs policy, the product is mailed without a battery,

 and 11.1V-12V lithium battery is recommended.
